Apricus High Pressure Flat Plat Solar Water Heater Solar Geyser

Solar water heater, compact solar water heater, flat plate solar water heater, thermosyphon solar water heater system, flat plate thermosiphon system

Product Description

Wombat FTS solar water heater is a thermosiphon solar water heater that incorporates a high efficiency heat pipe flat plate collector and mains pressure stainless steel storage tank. An electric element provides backup heating to ensure hot water all year round.

Pressurized storage tank and strong suppotive aluminium mounting frame to make a compact solar water heater.

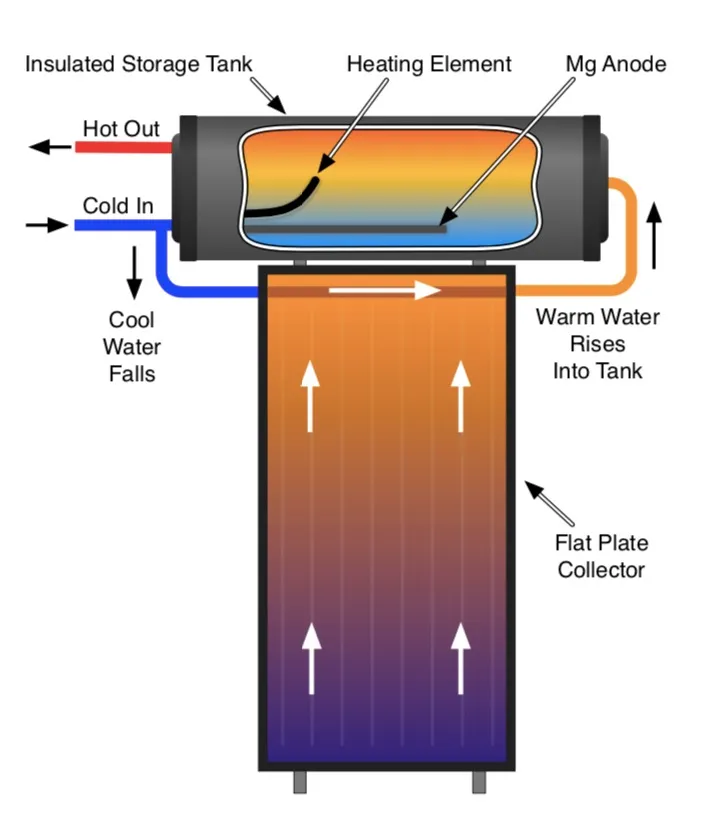

Basic Operation

Flat plate absorbers absorb sunlight and convert it to usable heat, which is transferred to the heat pipes welded to the underside of the solar absorber sheet. The heat pipes contains a small amount liquid which forms steam when heated, rapidly transferring the heat up to the header pipe which is connected to the storage tank. Water in the storage tank gradually circulates through the header pipe heating up the tank throughout the day.

Features

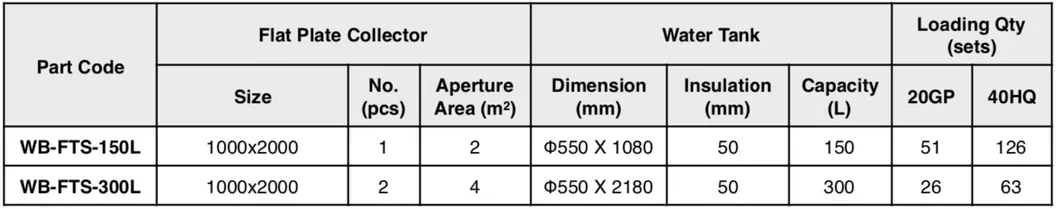

Technical Specifications

• High efficiency heat pipe type flat plate collector• Anti-freeze design
• Well insulated solar storage tank
• Thermosiphon or pump forced compatible

Flat Plate Collector

Absorber:0.3mm BlueTec solar AL
Absorber Welding: Ultrasonic
Absorber emittance: 5%±2%
Absorber absorption: 95%±2%
Heat pipes: 14(head)x6(thickness)x1700(length)mm
Heat pipe spacing: 110mm (total of 8 heat pipes)
Glass: 3.2mm, 92% transmittance
Collector Body: 6005-T5 black anodized AL
Back Sheet: 0.4mm galvanized steel sheet
Insulation: 20mm FP Resin sides
                 20mm rock wool bottom

Storage Tank
Inner tank: Food grade SS304 (SS316 optional)
Outer tank: PVDF coated steel
Insulation: 50mm high density PU foam
Electrical heating element: 1.5kW
Safety Valve: 1MPa / 99oC PT valve

System
Max Pressure: 600 kPa



Company Overview

Apricus is a leading designer and manufacturer of solar hot water and hydronic heating products.

Founded in 2003 by Australian Mick with a specific focus on solar thermal solutions, Apricus has since grown into a global company with distribution and support offices worldwide.
Apricus is dedicated to providing families and companies with solar water heating systems that are affordable and meet the requirements of the market.
