80L Split Pressurized Evacuated Tube Solar Water Heater with High Heat Collecting Efficiency Heat Pipes
80L Split-pressurized solar water heater with heat pipeInstallation typesPitched roof, flat roofAdvantages and benefits1.Easy installation, low maintenance cost and elegant appearance2.The special designed system bracket can be applied for both flat roof and piched roof.3.Building-integrated solar w......
Send Inquiry
Product Description
80L Split-pressurized solar water heater with heat pipe
Installation types
Pitched roof, flat roof
Advantages and benefits
1.Easy installation, low maintenance cost and elegant appearance
2.The special designed system bracket can be applied for both flat roof and piched roof.
3.Building-integrated solar water heating application with a flexible tank system.
4.Fast system starting, high energy yield and low heat loss
5.High quality stainless steel in the inner tank to continuously maintain a good water quality
6.Inner tank is suitable for high pressure conditions
Specification
Company information
Linuo Ritter International Co., Ltd focus on the solar collector, solar water heater, air source heat pump. We have ISO:9001, ISO:14001, CE, Solar keymark certificates to support our products.
We are one of the biggest manufacture of solar water heater in China, we have sold 5 million sets of SWH and 2 million sets of solar collector every year. We can provide good quality product to the customer, best price, lead-time, after-sales. We have professional engineer to update the products to make it more competitive.
At present, we have sold our products to many countries, such as German, USA, Canada, UK, South Africa, etc.
We do OEM for the customers, providing products, better price, good aftersales etc.
Thermal project application samples:
1.Household solar water system
2.Engineering solar water system
3.Solar cooling system
4.Central solar water system

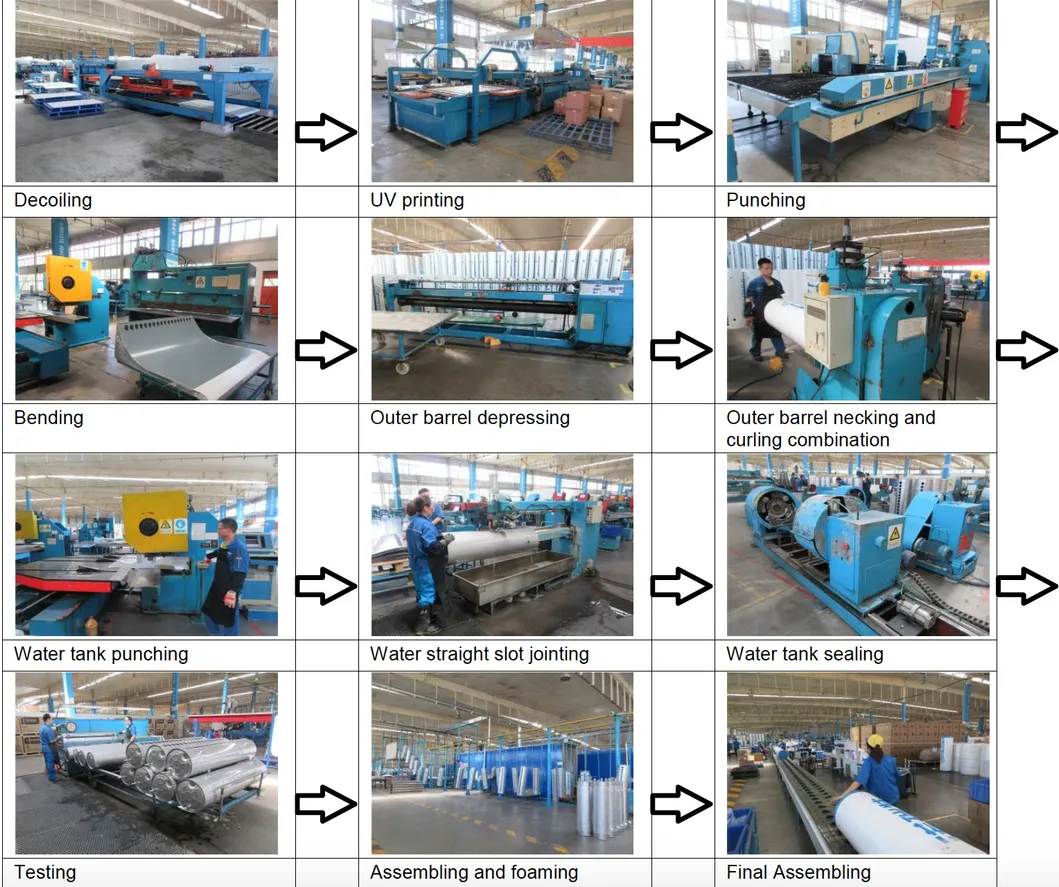

Product producing procedure
FAQ
Question1: Why customer choose Linuo Ritter?
Answer: Linuo Ritter International Co., Ltd focus on the solar collector, solar water heater, air source heat pump. It has four types of products to meet the different demand from the customer. Linuo Ritter also has big business scale in domestic market and overseas market.
Question2: What's your delivery time?
Answer: For repeat order, maybe 20days. for the first order, one month.
Question3: What's your payment term?
Answer: For the first time cooperation, 30% deposit, balance 70% against B/L copy. If the customer will set a long-term cooperation, maybe the payment term can be OA after placing many time orders.
Question4: What's your aftersales?
Answer: In general, we offer free charge of spare parts to the customer, if the customer have some technical problem, then we can provide technical supporting.
Installation types
Pitched roof, flat roof
Advantages and benefits
1.Easy installation, low maintenance cost and elegant appearance
2.The special designed system bracket can be applied for both flat roof and piched roof.
3.Building-integrated solar water heating application with a flexible tank system.
4.Fast system starting, high energy yield and low heat loss
5.High quality stainless steel in the inner tank to continuously maintain a good water quality
6.Inner tank is suitable for high pressure conditions
Specification
| Model | PS-80L | ||
| General info | Rated operating pressure | Mpa | 0.6 |
| Gross surface | m2 | 1.28 | |
| Aperture area | m2 | 1.02 | |
| Installation dimensions (LxWxH) | mm | 890 X 1875 X 1555 | |
| Water tank | Tank dimensions | mm | Φ 480 X 840 |
| Tank weight | kg | 20 | |
| Insulation of tank | material/mm | Polyurethane / 47.5 | |
| Material inner tank | material | Stainless steel SUS304 - 2B | |
| Diameter / thickness inner tank | mm | Φ385 / 1.2 | |
| Material outer tank | material | Silver gray wiredrawing painted steel | |
| Diameter / thickness outer tank | mm | Φ480 / 0.4 | |
| Tube | Type of vacuum tubes | Φ58x1800 mm vacuum tube | |
| Evacuated tubes | No | 10 | |
| Bracket | Bracket | material / thickness | Galvanized sheet/1.5mm |
| Bracket inclination | degree | 30 | |
| Weight | kg | 12 | |
| Others | TP valve Temp / Pressure | 85C / 0.6 Mpa | |
| Electric heating | 800W | ||
| DIN CERTCO regis tration number | 011-7S2716A | ||
Company information
Linuo Ritter International Co., Ltd focus on the solar collector, solar water heater, air source heat pump. We have ISO:9001, ISO:14001, CE, Solar keymark certificates to support our products.
We are one of the biggest manufacture of solar water heater in China, we have sold 5 million sets of SWH and 2 million sets of solar collector every year. We can provide good quality product to the customer, best price, lead-time, after-sales. We have professional engineer to update the products to make it more competitive.
At present, we have sold our products to many countries, such as German, USA, Canada, UK, South Africa, etc.
We do OEM for the customers, providing products, better price, good aftersales etc.
Thermal project application samples:
1.Household solar water system
2.Engineering solar water system
3.Solar cooling system
4.Central solar water system
Product producing procedure
FAQ
Question1: Why customer choose Linuo Ritter?
Answer: Linuo Ritter International Co., Ltd focus on the solar collector, solar water heater, air source heat pump. It has four types of products to meet the different demand from the customer. Linuo Ritter also has big business scale in domestic market and overseas market.
Question2: What's your delivery time?
Answer: For repeat order, maybe 20days. for the first order, one month.
Question3: What's your payment term?
Answer: For the first time cooperation, 30% deposit, balance 70% against B/L copy. If the customer will set a long-term cooperation, maybe the payment term can be OA after placing many time orders.
Question4: What's your aftersales?
Answer: In general, we offer free charge of spare parts to the customer, if the customer have some technical problem, then we can provide technical supporting.
