Whole Sale Home 9000W off Grid PV Solar Energy Power Complete System
Easy install 1kw-6kw off grid system solar power system solar panel portable with 10 years warrantyFoshan tanfon energy technology co., LTD can supply Solar Panel system, Solar PV system, Solar system for home use, Solar system Kit, Solar off grid system, Solar complete system, Solar Home power syst......
Send Inquiry
Product Description
Easy install 1kw-6kw off grid system solar power system solar panel portable with 10 years warranty
Foshan tanfon energy technology co., LTD can supply Solar Panel system, Solar PV system, Solar system for home use, Solar system Kit, Solar off grid system, Solar complete system, Solar Home power system
Provide installation service, technical support
Buy our solar system products, Our installation team engineer can go your location to guide installing the solar system
[ Philosophies ]
◊ Mission - Sincere, All-win, Unite, Aggressive.
◊ Business Philosophy - People-oriented, Unite and Cooperation, Customer First, Reform and Innovation.
◊ Values - To build first-class team, To create impressive performance, To struggle for the realization of dreams and corporate vision.
Why Choose Tanfon Products?
1) TANFON has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !
2) With a professional installation team, Have went to Egypt, Chad, Nigeria, Ghana, Doha, Pakistan for installation
Our colleagues also are from African Sales Elite, they are good at polyglot language, we can be better service for our customers from all over the world.
3) Already started some inverter factories in some countries. so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation
4) We insist on using good quality raw material whenever and wherever.
We have offered many government projects in many countries. Our products are produced according to the quality of the government projects.
5) With customer's' praise as an assurance, Tanfon is a guaranteed brand.
6) Our company's philosophy is: one-stop solar energy service platform
| 9000W home system Load reference | ||||
| Load name | Load's watt | Qty | Total watt | This example is just for reference. But Your load can be less than 10kw |
| lights | 11W | 20 | 220 | |
| Fan | 80W | 4 | 320 | |
| Computer(LCD display) | 150W | 2 | 300 | |
| printer | 250W | 1 | 250 | |
| Fax machine | 150W | 1 | 150 | |
| refrigerator(200L) | 120W | 2 | 240 | |
| Washing machine | 300W | 1 | 300 | |
| Microwave | 1500W | 1 | 1500 | |
| Electric cooker | 300W | 1 | 300 | |
| Air conditioner(1.5HP) | 1125W | 4 | 4500 | |
| Satellite TV receiver/VCD | 25W | 1 | 25 | |
| Color TV(32 inch) | 150W | 2 | 300 | |
| Water pump | 200W | 1 | 200 | |
| Total | 8855 | |||
| TANFON Off grid solar power system- SP9KW | |||
| System Basic Information | Solar panel rated output power: 9240W Suitable for daily power consumption : >55.44KWH Allowable max loads power :9KW(= 12.6KVA) | SP-9kw Full set: Total volume:5.72CBM Total weight:1738KG TANFON advantage: Training team and installation service | |
| Solar panel (Mono) ( poly) | FS330W mono solar panel(poly optional) Vmp:38.39V Voc:47.13V Imp 9.37A Size : 1956*992*40mm 25 years life time (CE TUV) Coated steel Glass:3.2mm Tem pered Terminal block:IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% Connect way:each 4 pcs in series | QTY 28pcs | |
| PV Array Combiner | Model:H8T-96v Multiple PV strings inputs and controller, Prevent hot spot effect Reliable thunderstorm& surge protection Product Size:400*425*145mm | QTY 1pc | |
| Solar Controller | MPPT controller model:96V/100A Charging efficiency; 90%-95%, charging mode, intelligent control., various protection functions; | QTY 1pc | |
| Pure sine wave Inverter | Inverter:9KW96VDC 110V/120V/220V/230V/240VAC output, City power and generator charger build in Overload, overcharge, over-discharge protection Fuji brand IGBT material | QTY 1pc | |
| Gel Battery | Capacity:12V/200AH full sealed Solar power gel battery, Service life:6-8 years ,(free one for service) Size:522*240*219mm Connect way: 8pcs battery in series is each string. 2 strings connect to solar hybrid inverter | QTY 16pcs | |
| panel rack | Slope Rooftop or Flat rooftop wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable (other type of rack can be customized as per client's requirement ) | QTY 1set | |
| Cables | 1) 14pcs 16mm2*35CM battery cable 4pcs 16mm2*1M battery cable 2)4mm2 PV cable 200M 3)terminals and MC4+2P63A Battery switch | QTY 1set | |
Easy install 1kw-6kw off grid system solar power system solar panel portable with 10 years warranty
Foshan tanfon energy technology co., LTD can supply Solar Panel system, Solar PV system, Solar system for home use, Solar system Kit, Solar off grid system, Solar complete system, Solar Home power system
Provide installation service, technical support
Buy our solar system products, Our installation team engineer can go your location to guide installing the solar system
[ Philosophies ]
◊ Mission - Sincere, All-win, Unite, Aggressive.
◊ Business Philosophy - People-oriented, Unite and Cooperation, Customer First, Reform and Innovation.
◊ Values - To build first-class team, To create impressive performance, To struggle for the realization of dreams and corporate vision.
Why Choose Tanfon Products?
1) TANFON has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !
2) With a professional installation team, Have went to Egypt, Chad, Nigeria, Ghana, Doha, Pakistan for installation
Our colleagues also are from African Sales Elite, they are good at polyglot language, we can be better service for our customers from all over the world.
3) Already started some inverter factories in some countries. so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation
4) We insist on using good quality raw material whenever and wherever.
We have offered many government projects in many countries. Our products are produced according to the quality of the government projects.
5) With customer's' praise as an assurance, Tanfon is a guaranteed brand.
6) Our company's philosophy is: one-stop solar energy service platform
More specification
Full set home solar system hot sale 3kw 5kw 10kw configuration specification
| TANFON Off grid solar power supply system- SP-3KW | |||
| System Basic Information | Solar panel rated output power: 3000W Suitable for daily power consumption : >12KWH Allowable max loads power : 3KW Full set: Total volume:1.95CBM Total weight: 956KG | ||
| Solar panel | FS330W mono solar panel(poly optional) Vmp:37.57V Voc:46.34V Imp 8.78A Size : 1956*992*40mm 25 years life time (CE TUV) Coated steel Glass:3.2mm Tem pered Terminal block:IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% Connect way:each 2 pcs in series | QTY 10pcs | |
| PV combiner | Model:H6T-48V Multiple PV strings inputs. Simplify wiring between PV array and controller. protections to controller thunderstorm& surge protection | QTY 1pc | |
| Hybrid solar Inverter | Inverter power: SC3kw/48V MPPT Controller model: 48v/60A Charging efficiency; 90%-95%, LCD display inverter and controller info Built-in AC charger (public network) Output:110v, 120v, 220v, 230v, 240v(optional) Product size: 480*270*185mm | QTY 1pc | |
| Gel Battery | Capacity: 12V/200AH full sealed Solar power gel battery, Service life:6-8 years , Size: 522*240*219mm Weight: 59KG Connect way: 4pcs battery in series is each string. 2 string connect to solar hybrid inverter | QTY 4pcs | |
| panel rack | Slope Rooftop or Flat rooftop wind load: 55m/s,snow load:1.5kn/m2 structure: Anodized Aluminum+stainless steel, Angle adjustable (other type of rack can be customized as per client's requirement ) | QTY 1set | |
| Cables | 1) 6pcs 16mm2*35CM battery cable 4pcs 16mm2*1M battery cable 2)4mm2 PV cable 100M 3)terminals and MC4 | QTY 1set | |
Home solar system operating appliances' power load reference
| Load reference | |||
| 3000W solar home system | |||
| Load name | Load's watt | Qty | Total watt |
| lights | 11W | 8 | 88W |
| Fan | 80W | 2 | 160W |
| computer | 100W | 2 | 200W |
| Washing machine | 250W | 1 | 250W |
| Electric cooker | 300W | 1 | 300W |
| Satellite TV receiver/VCD | 25W | 1 | 25W |
| Color TV | 100W | 1 | 100W |
| Water pump | 200W | 1 | 200W |
| Refrigerator | 100W | 1 | 100W |
| Air conditioner(1.5HP) | 1125W | 1 | 1125W |
| Total | 2548W | ||
| Remark: Refrigerator, air conditioner &water pump is inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first | |||

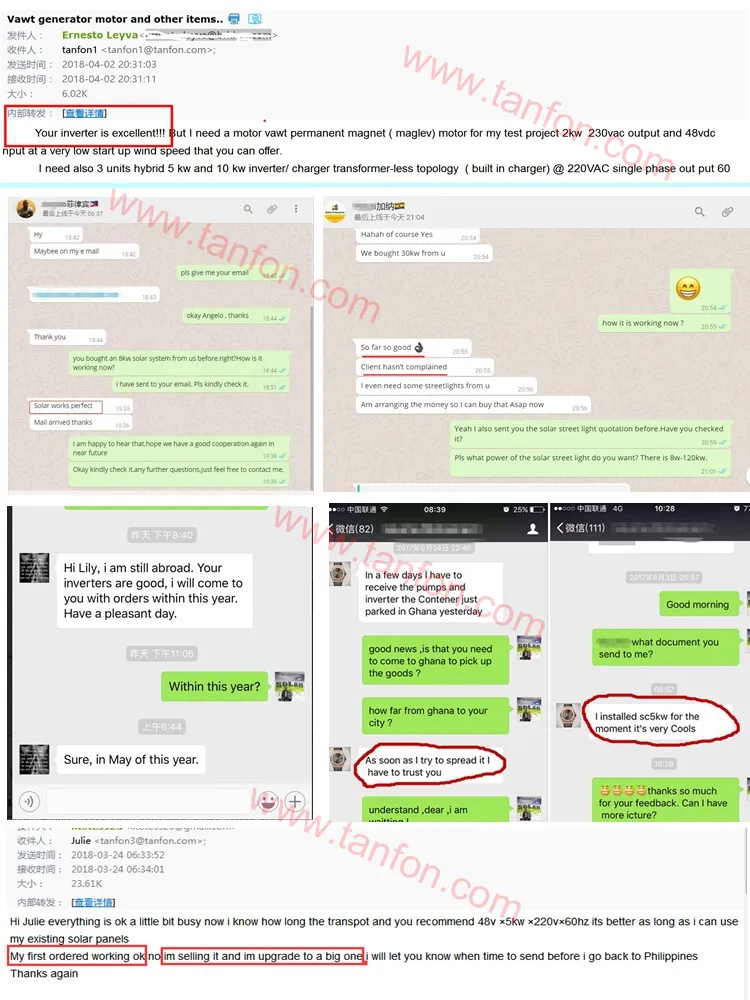

Customer Feedback
FAQ
Q: What can be included for this system from TANFON?
A:This system includes: solar panels, PV array combiner, Solar inverter with MPPT solar controller build in, Gel free maintenance battery, solar panel rack, cables.,etc.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are available also.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: Solar panel's lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.
Q:what is TANFON solar system after sales service?
A: during the warranty ,Solar panel--ship free new one ;battery-ship the new one ,
Inverter/controller---ship free PCB by DHL or Fedex.
Q:what is your trade Assurance?
A:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
