TBB New Generation Stand Alone off-Grid Villa Solar Power System 2kw 3kw with Battery

Product Description

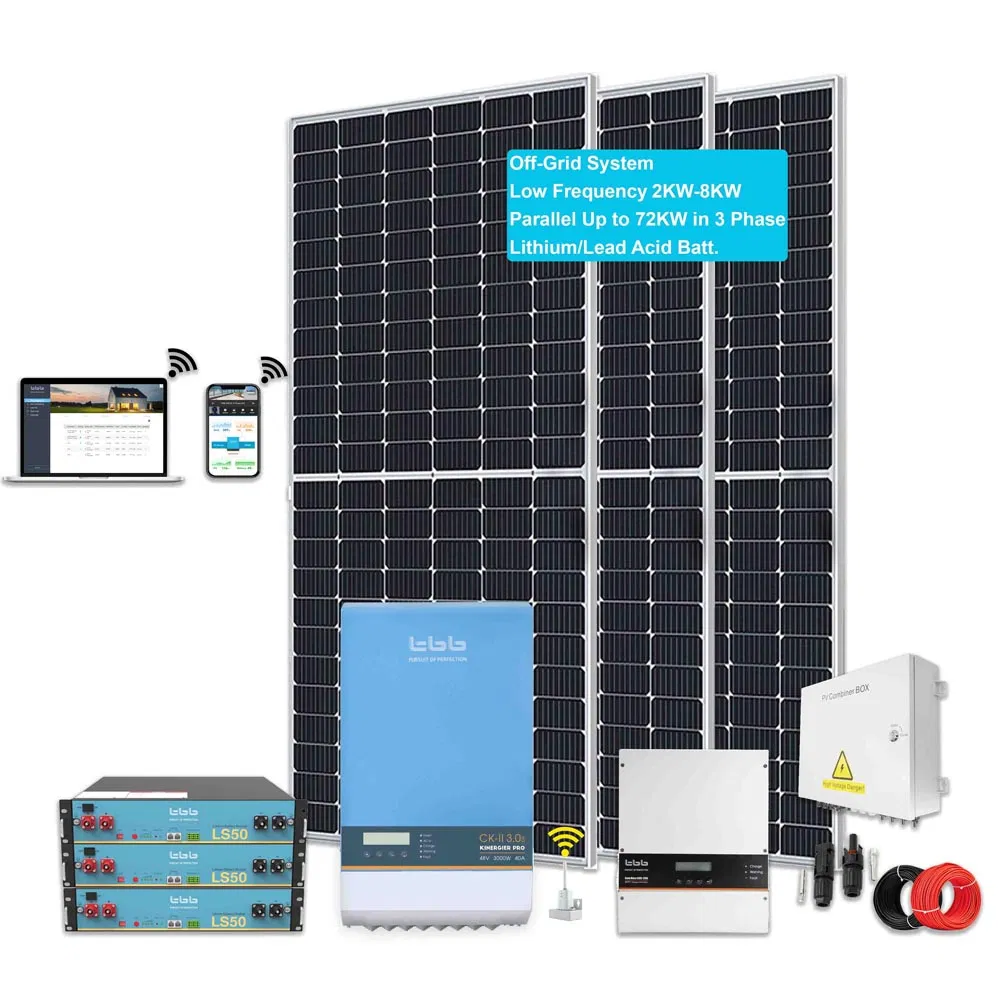

TBB New Generation stand Alone Off-Grid Villa Solar Power System 2KW 3KW with Battery

TBB Power is one of the most Professional Manufacturer for Solar Inverter,Lithium Battery.Integrated R&D, Production, Sales & Services as one.

Dedicated to providing the Battery Storage Energy System and Smart PV Solar Power System. System ranging from 2KW to 72KW, Supporting Single Phase or Three-phase and Parallel Function.

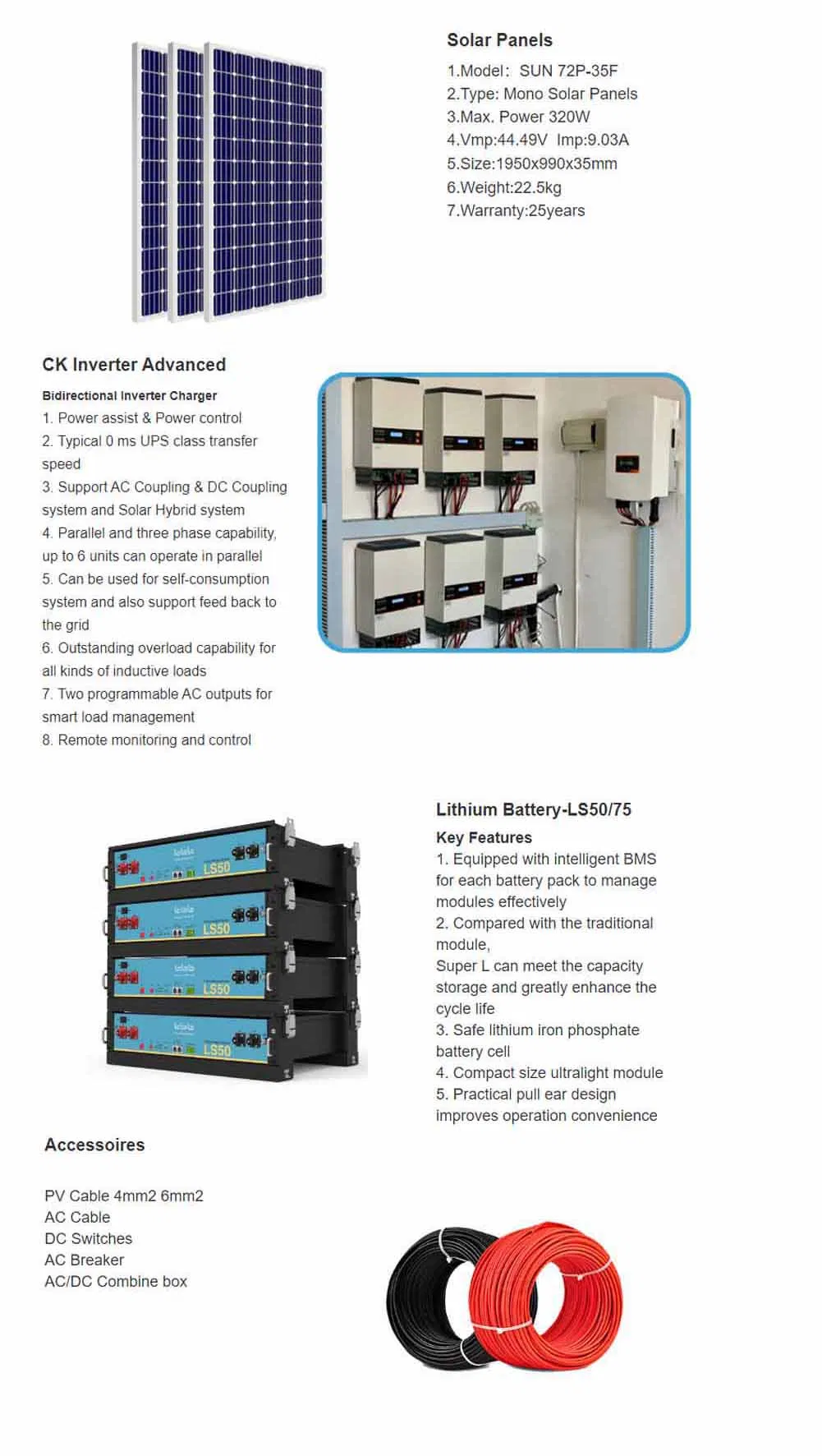

CK Off-grid/Hybrid system(DC coupled system)

With TBB Kinergier Pro, a complete Off-grid/hybrid system be designed according to the user demand. It boasts enhanced UPS class transfer speed. With AGS function built-in the inverter, the generator can be started and stopped remotely through the TBB NOVA online portal. The system is equipped with 2 AC outputs. One of the AC outputs is programmable for flexible application. With the parallel and three-phase capability of up to 6 units, it can meet customers' subsequent demand for system expansion.

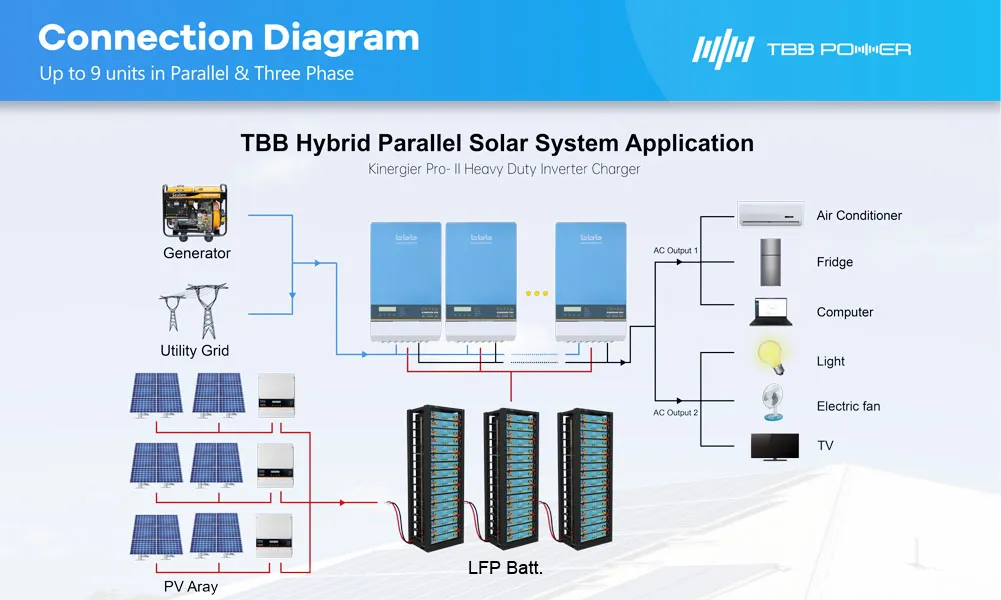

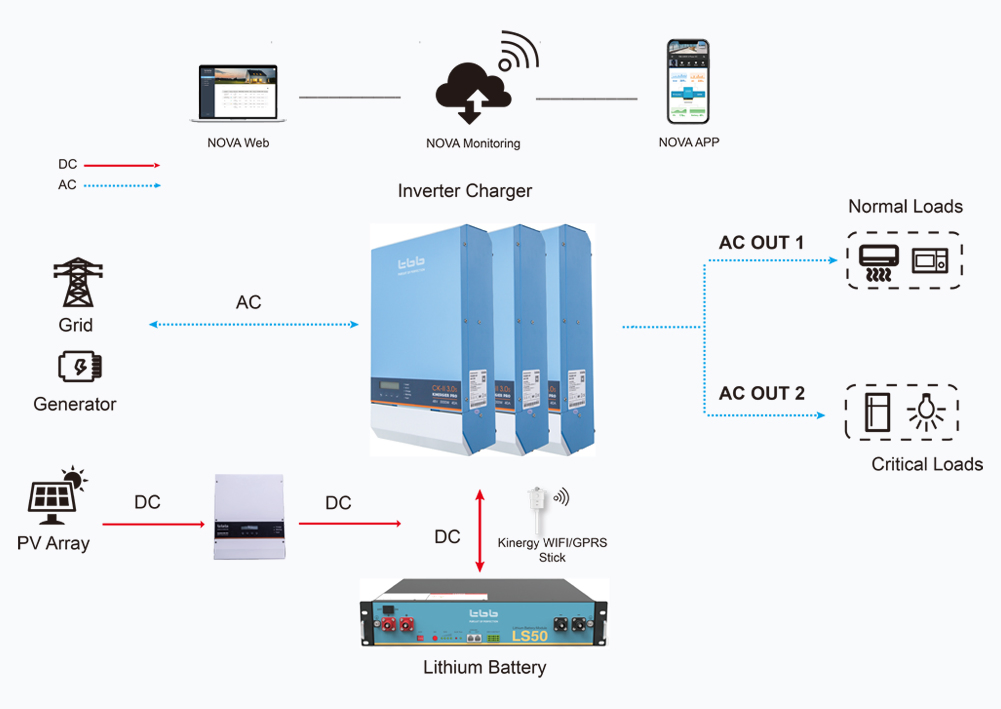

The DC-coupled PV system is a complete off-grid system composed of the Kinergier Pro inverter and MPPT solar charger controller. The DC outputs of both the Kinergier Pro inverter and the Solar Mate are coupled and supply power to the battery. The system can be connected to the local grid power/generator, and solar panels up to 50KW. It is suitable for application that electricity is generated during daytime and supplied to load at night

Off-Grid/Hybrid Solar Energy System
Kinergier Pro(CK CK-II) Series NON-MPPT Inverter Charger
Components	2KW	3KW	4KW	5KW	6KW	8KW
AC outputs	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ
Three Phase & Parallel	Parallel Yes	Parallel Yes	Parallel Yes	Parallel Yes	Parallel Yes	Parallel Yes
Solar Panel	3 PCS	6 PCS	9 PCS	12 PCS	15 PCS	18 PCS
Hybrid Inverter	2KW-M/S	3KW-M/S	4KVA-S	5KW-S	6KVA-S	8KVA-S
Solar Mate	150Vdc 60A	150Vdc 60A	150Vdc 60A	150Vdc 60A	150Vdc 60A	150Vdc 100A
Lithium Battery	48V 3.6KWH	48V 4.8KWH	48V 7.2KWH	48V 10.8KWH	48V 10.8KWH	48V 18KWH
DC Combiner Box	1 Piece	1 Piece	1 Piece	1 Piece	1 Piece	1 Piece
Solar Panels Rack	1 set	1 set	1 set	1 set	1 set	1 set
PV cable 4mm²	50-100m	50-100m	50-100m	50-100m	50-150m	50-150m
MC4 Connector	1 Pieces	2 Pieces	3 Pieces	4 Pieces	5 Pieces	6 Pieces
Installation Tool	1 set	1 set	1 set	1 set	1 set	1 set

NOVA Online Portal - Monitor and control your TBB Solar Power Systems Remotely and Easily
TBB New Generation Stand Alone off-Grid Villa Solar Power System 2kw 3kw with Battery

TBB New Generation Stand Alone off-Grid Villa Solar Power System 2kw 3kw with Battery

Model	CK-II 2.0M	CK-II 3.0M	CK-II 2.0S	CK-II 3.0S
Power Assist	Yes
Feed-in to grid	Yes
AC input voltage range(VAC)	175~265
AC input frequency range(Hz)	45~65
AC Input Current (transfer switch) (A)	32
Inverter
Nominal battery voltage (VDC)	24		48
Input voltage range (VDC)	21-34		42~68
AC output voltage(VAC)	220/230/240 ± 2%
AC output Frequency(Hz)	50/60 ± 0.1%
Harmonic distortion	<2%
Load Power factor	1.0
Cont. output power at 25°C (VA)	2000	3000	2000	3000
Cont. output power at 25°C (W)	1600	2500	1600	2500
Peak power (30min) (W)	2000	3000	2000	3000
Peak power (W)	4000	6000	4000	6000
Cont. output power at 40°C (W)	1500	2200	1500	2200
Surge	300%
Maximum efficiency	94%		95%
Zero load power (W)	11	14	11	14
Charger
Charge voltage 'absorption' (VDC)	28.8		57.6
Charge voltage 'float' (VDC)	27.6		55.2
Battery types	AGM / GEL / OPZV / Lead-Carbon / Li-ion / Flooded/Traction/TBB SUPER-L
Max AC charge current (A)	50	80	25	40
Temperature compensation	Yes
General data
Main Output (AC Out1) Current (A)	32
Auxiliary Output (AC Out2) Current (A)	32
Transfer time	0ms (<15ms in Weak AC source Mode)
Remote on-off	Yes
Programmable relay	2x
Protection	a) output short circuit, b) overload, c) battery voltage too high, d) battery voltage too low, e) temperature too high, f) input voltage out of range, g) input voltage ripple too high, h) Fan block
CAN Bus communication port	For three-phase operation, remote monitoring and system integration
General-purpose com. Port	RS485 (GPRS,WLAN optional)
Operating temperature range	-20˚C~65˚C
Relative humidity in operation	95% without condensation
Altitude (m)	2000
Mechanical Data
Dimension (mm) (max)	499268145
Net Weight (kg)	16	19	16	19
Cooling	Forced fan
Protection Category	IP21
Standards
Safety	EN-IEC 62477-1
EMC	EN61000-6-1,EN61000-6-2,EN61000-6-3, EN61000-3-11,EN61000-3-12

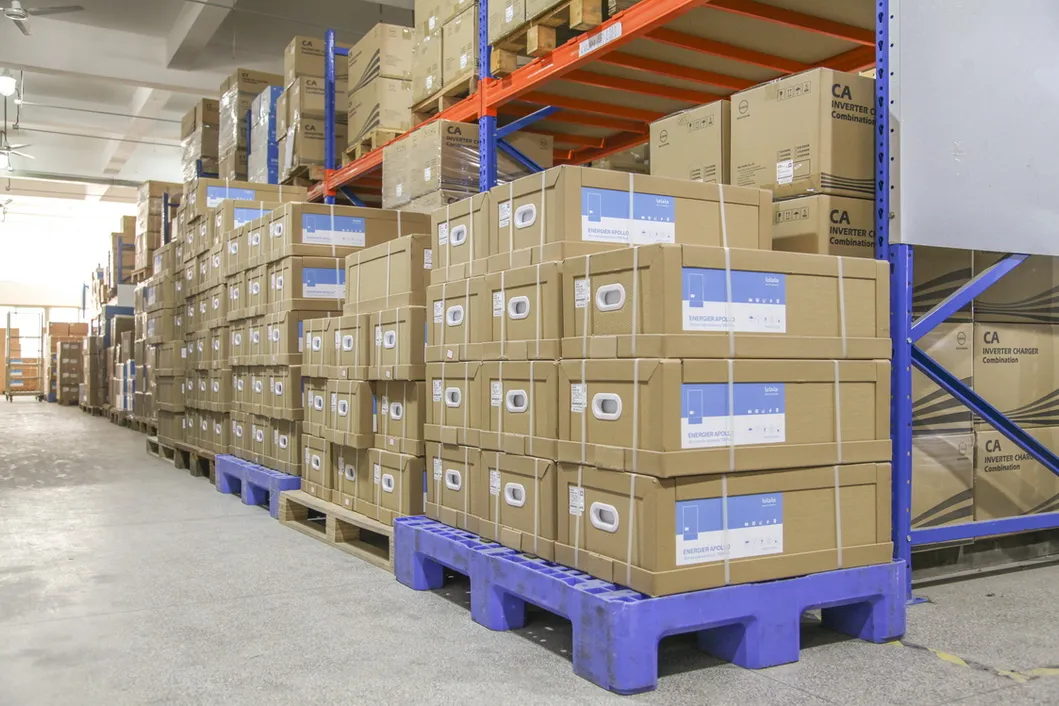

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

TBB New Generation Stand Alone off-Grid Villa Solar Power System 2kw 3kw with Battery

Founded in 2007, TBB Power is a national high-tech enterprise specializing in integrated power supply solutions and intelligence. Headquartered in Dongfu Industrial Park, Haicang District, Xiamen, covers an area of over 10, 000 square meters. Products are exported to more than 50 countries and regions.

TBB Power has the most complete product line in the industry and is one of the world's best suppliers of modified car power systems and independent power solutions.

The products mainly cover three markets:

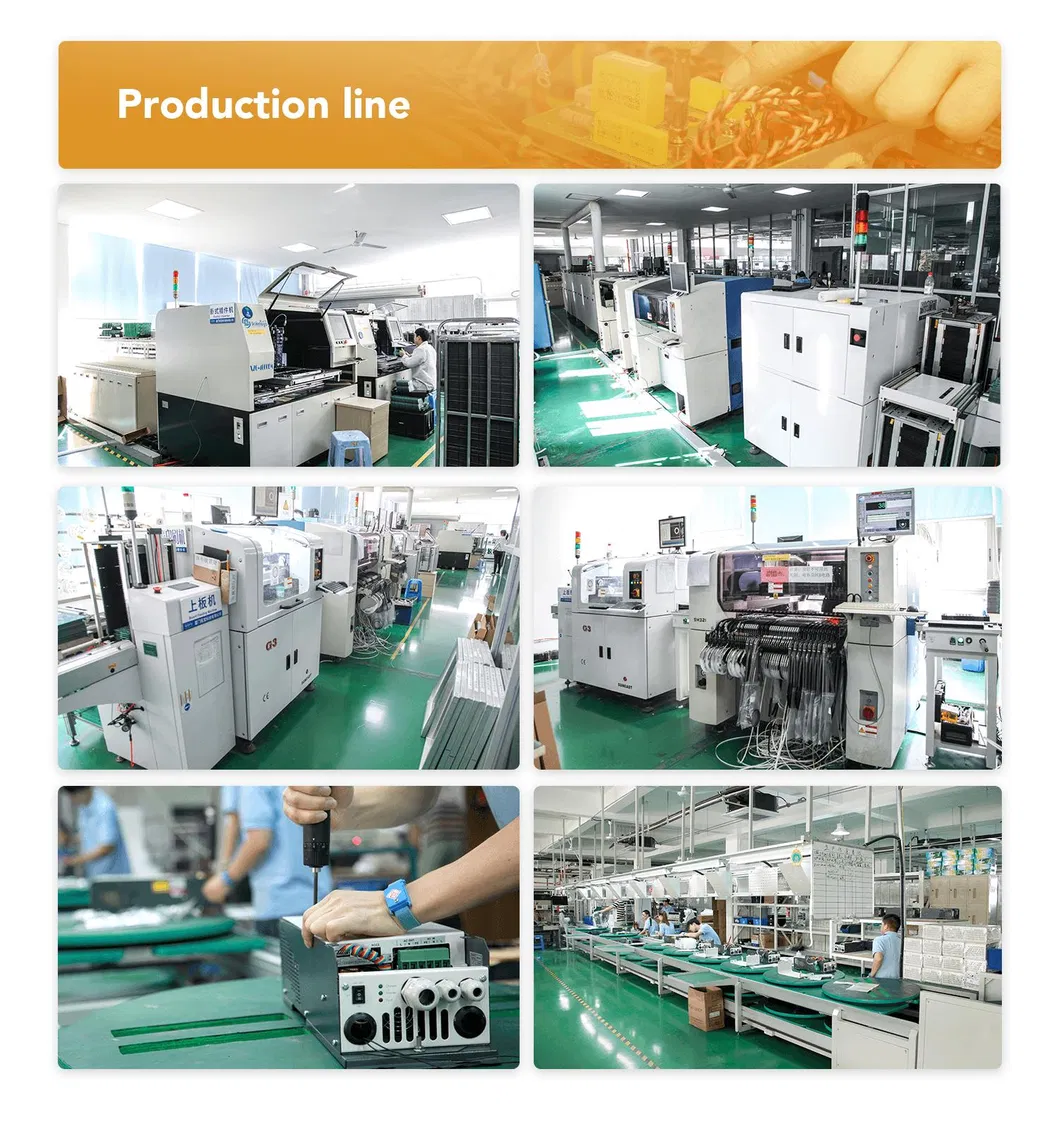

TBB Power attaches great importance to technological innovation, The research and development team accounts for more than 30% of the total employees of the company. TBB Power has a complete production system and quality assurance system, and has passed ISO9001, IATF16949 certification. The product line has passed CE, EMARK, UL and other product certifications.
