TBB Heavy Duty Home Solar Energy System 5kw 10kw 15kw 30kw off Grid Hybrid Solar Power System for Energy

Product Description

TBB Heavy Duty Home Solar Energy System 5KW 10KW 15KW 30KW Off Grid Hybrid Solar Power System For Energy

TBB Power is one of the most Professional Manufacturer for Solar Inverter,Lithium Battery. Integrated R&D, Production, Sales & Services as one.

Dedicated to providing the Battery Storage Energy System and Smart PV Solar Power System. System ranging from 2KW to 72KW, Supporting Single Phase or Three-phase and Parallel Function.

Hybrid Solar Power System(TBB Maxx Solar System)

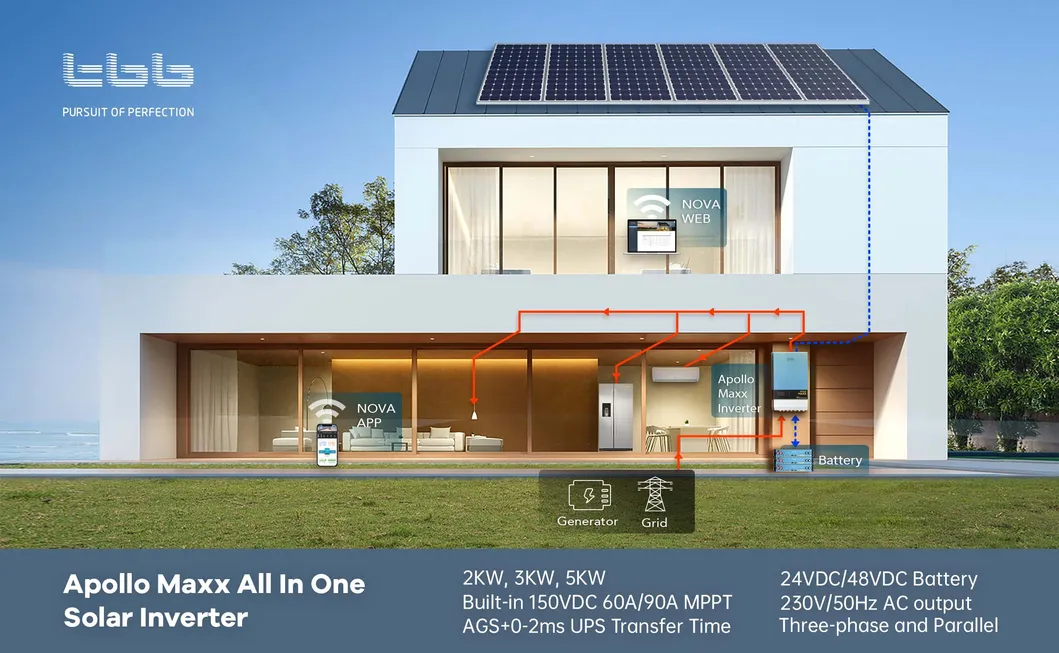

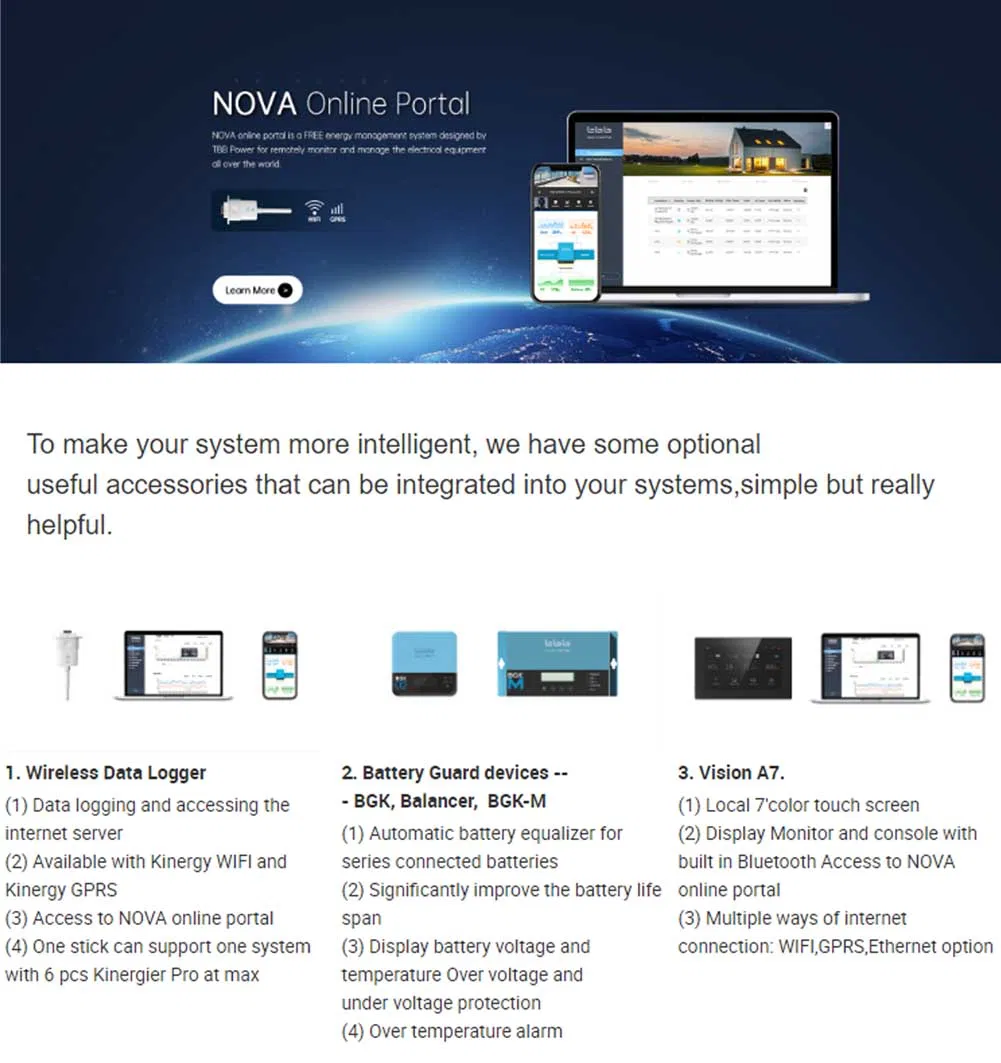

TBB Apollo maxx hybrid system is a complete hybrid energy storage system according to the customer demand. The system adopts all in one inverter that can be connected to the local grid power/generator and solar panels and boasts enhanced UPS class transfer speed. With the AGS function built-in the inverter, the generator can be started and stopped remotely through the TBB NOVA online portal.

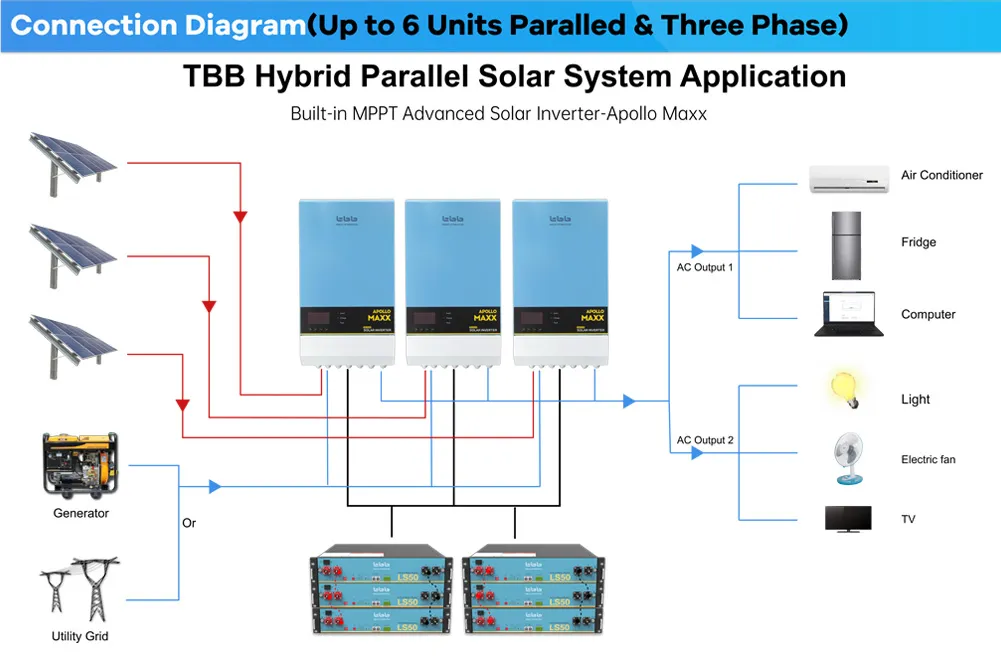

It can reduce the user electricity bills and supply stable power to Inductive loads such as servers by intelligently adjusting the power supply among the grid power/generator, PV energy and the batteries. (For example, a 5KW system can save around $1,000/year.) Apollo maxx can be paralleled up to 6 units to meet the customer's subsequent demand for system expansion or three-phase output.

TBB Heavy Duty Home Solar Energy System 5kw 10kw 15kw 30kw off Grid Hybrid Solar Power System for Energy

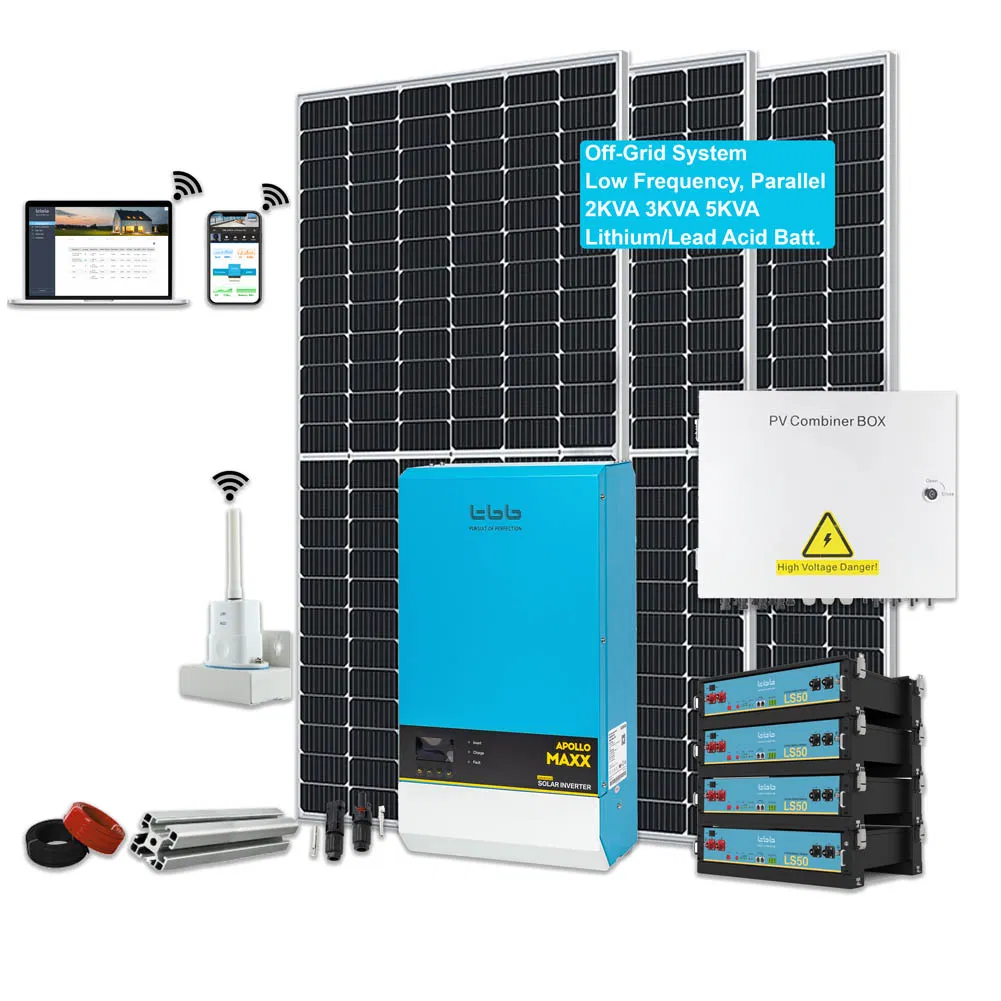

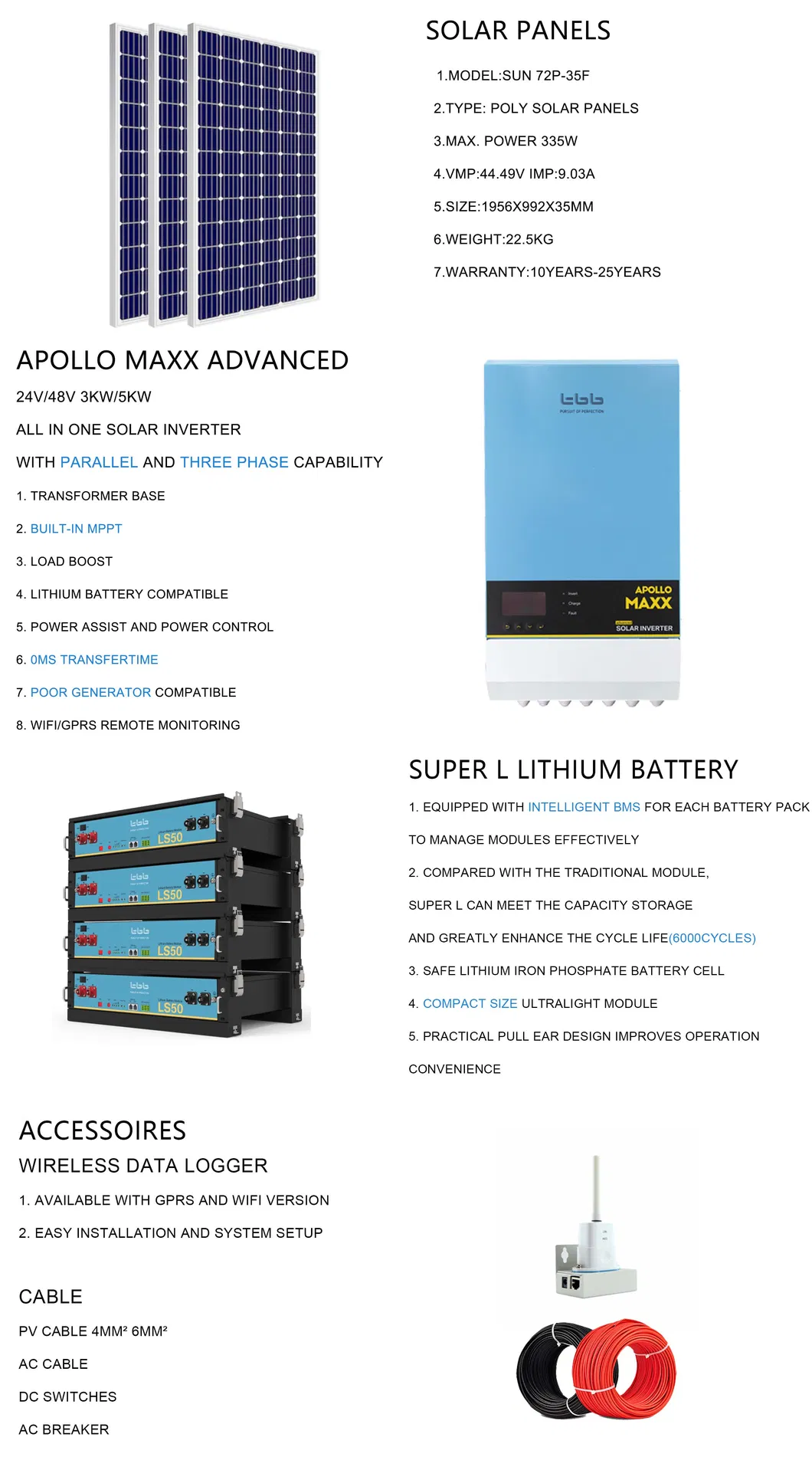

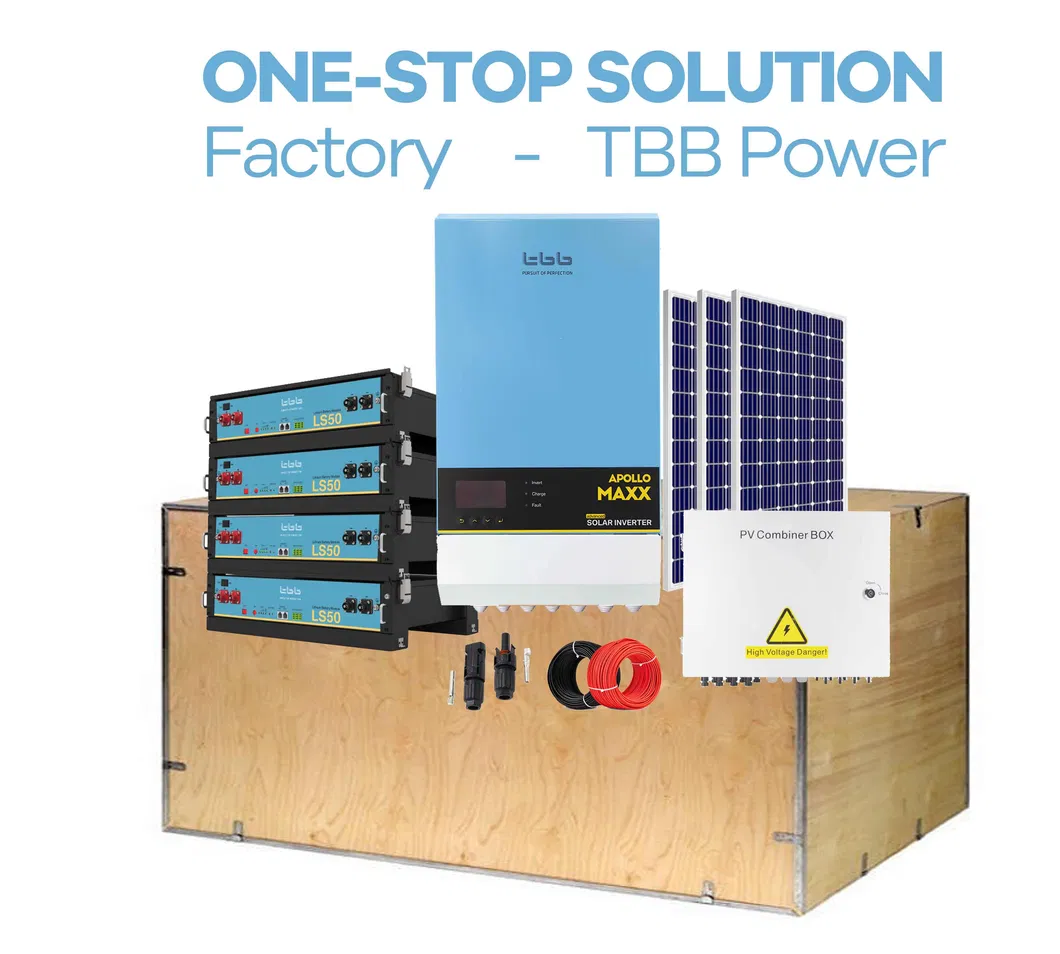

Off-Grid/Hybrid Solar Energy System

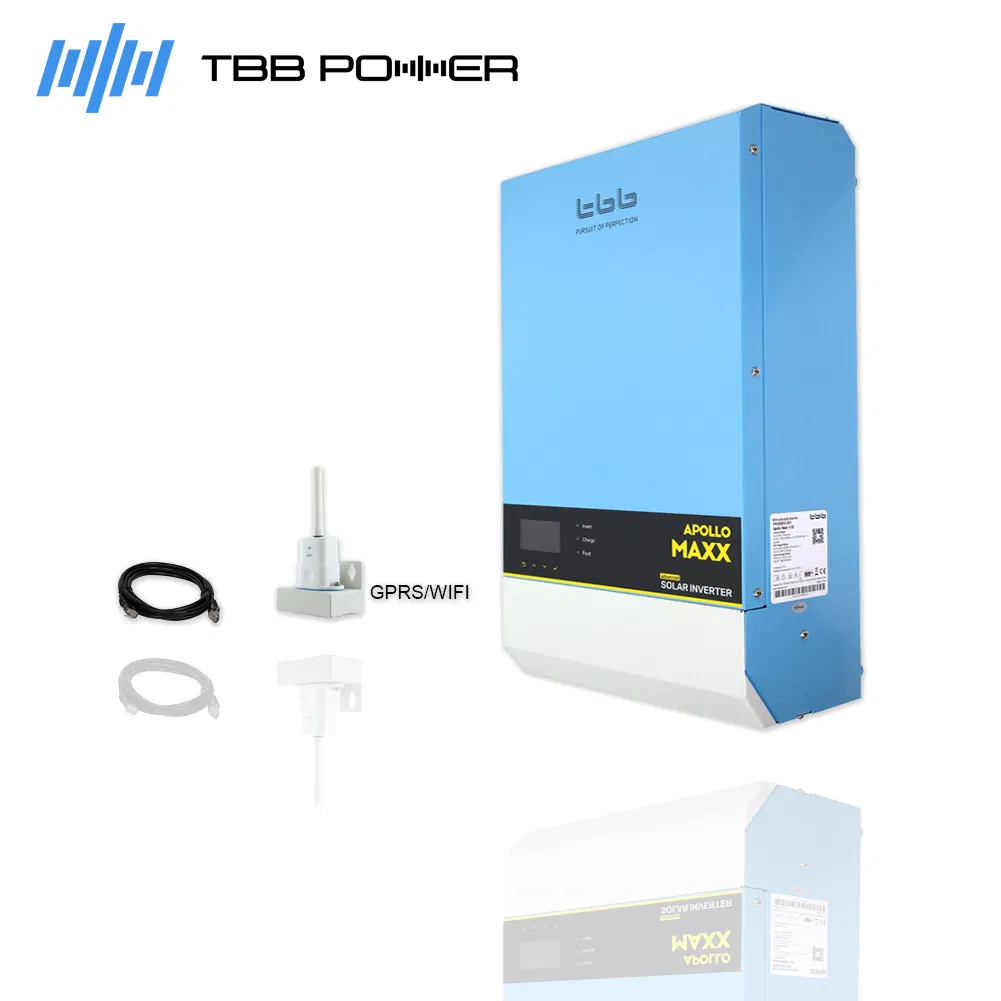

Apollo Maxx Series MPPT All In one Inverter
Components	2KW	3KW	5KW	10KW	15KW	30KW
AC outputs	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ	220-240V 50/60HZ
Three Phase & Parallel	Parallel Yes	Parallel Yes	Parallel Yes	Parallel Yes	Parallel & 3 Phase Yes	Parallel & 3 Phase Yes
Solar Panel	3 PCS	6 PCS	12 PCS	24 PCS	36 PCS	72 PCS
Hybrid Inverter	2KW-M/S	3KW-M/S	5KW-S	5KW-S * 2 PCS	5KW-S *3 PCS	5KW-S *6 PCS
Lithium Battery	48V 3.6KWH	48V 4.8KWH	48V 10.8KWH	48V 21.6KWH	48V 32.4KWH	48V 64.8KWH
DC Combiner Box	1 Piece	1 Piece	1 Piece	1 Piece	1 Piece	2 Piece
Solar Panels Rack	1 set	1 set	1 set	1 set	1 set	1 set
PV cable 4mm²	50-100m	50-100m	50-100m	50-150m	50-150m	100-200m
MC4 Connector	1 Pieces	2 Pieces	4 Pieces	8 Pieces	12 Pieces	24 Pieces
Installation Tool	1 set	1 set	1 set	1 set	1 set	1 set

Model	Apollo Maxx 2.0M	Apollo Maxx 3.0M	Apollo Maxx 2.0S	Apollo Maxx 3.0S	Apollo Maxx 5.0S
Product Topology	Transformer based
Power Assist	Yes
Parallel & three phase	Yes
AC input voltage range(VAC)	175~265
AC input Frequency range(Hz)	45~65
AC input Current (transfer switch) (A)	32				50
Inverter
Nominal battery voltage (V)	24		48
Input voltage range (V)	21-34		42~68
AC output voltage(VAC)	220/230/240 ± 2%
AC output Frequency(Hz)	50/60 ± 0.1%
Harmonic distortion	<2%
Load Power factor	1.0
Cont. output power at 25°C (VA)	2000	3000	2000	3000	5000
Max Output power at 25°C (W)	2000	3000	2000	3000	5000
Peak power (5 sec)(W)	6000	9000	6000	9000	15000
Surge	300%
Maximum efficiency	94%	94%	95%	95%	96%
Zero load power (W)	11	14	11	14	21
Charger
Charge voltage 'absorption' (V)	28.8		57.6
Charge voltage 'float' (V)	27.6		55.2
Battery types	AGM / GEL / OPZV / Lead-Carbon / Li-ion / Flooded/Traction/TBB SUPER-L
Max AC charge current (A)	50	80	25	40	70
Temperature compensation	Yes
Solar Charge Controller
Max output current(A)	60	60	60	60	90
Maximum PV power(W)	2000	2000	4000	4000	6000
PV open circuit voltage (V)	150	150	150	150	150
MPPT voltage range(V)	65~145
Charge voltage 'absorption' (V)	28.8		57.6
Charge voltage 'float' (V)	27.6		55.2
MPPT charger maximum efficiency	98%		98%
MPPT efficiency	>99.5%		>99.5%
Protection	a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) input voltage out of range
General data
Main Output (AC Out1) Current (A)	32				50
Auxiliary Output (AC Out2) Current (A)	32
Transfer time	0ms (<15ms in Weak AC source Mode)
Remote on-off	Yes
Programmable relay	2x
Protection	a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) input voltage out of range g) input voltage ripple too high h) Fan block
CAN Bus communication port	For three phase operation, remote monitoring and system integration
General purpose com. Port	RS485 (GPRS,WLAN optional with kinergy)
Operating temperature range	-20˚C to 65˚C
Relative humidity in operation	95% without condensation
Altitude (m)	2000
Mechanical Data
Dimension (mm) (max)	499272145	499272145	499272145	499272145	560310155
Net Weight (kg)	17	20	17	20	32
Cooling	Forced fan
Protection index	IP21
Standards
Safety	EN-IEC 62477-1, EN-IEC 62109-1,EN-IEC 62109-2
EMC	EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-3-11,EN61000-3-12

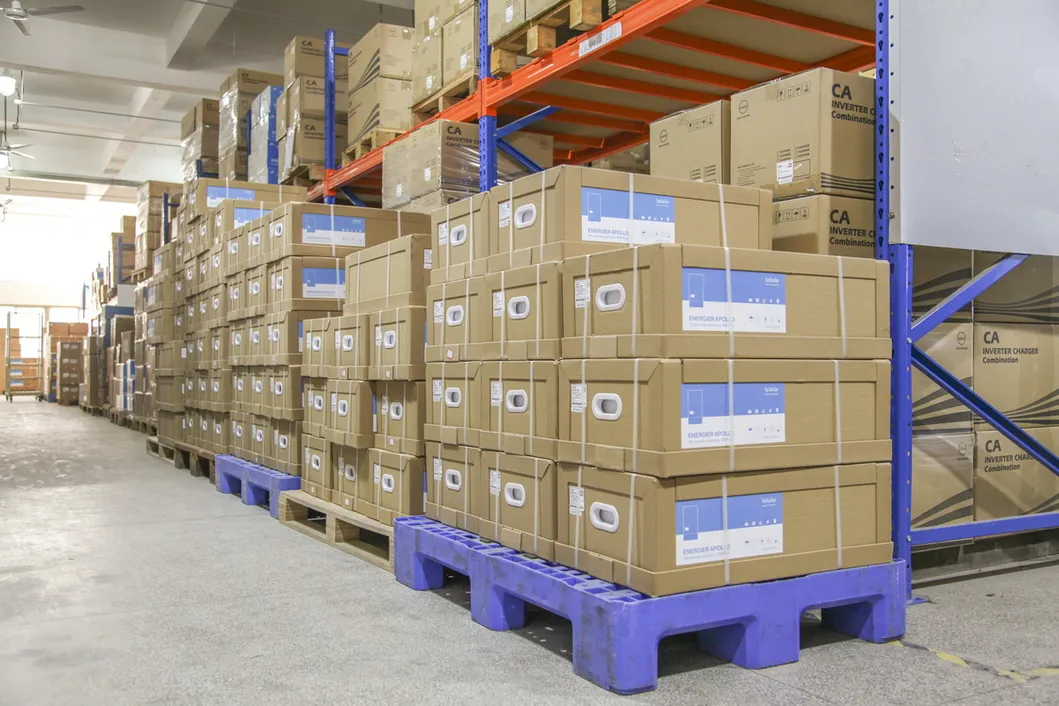

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

TBB Heavy Duty Home Solar Energy System 5kw 10kw 15kw 30kw off Grid Hybrid Solar Power System for Energy

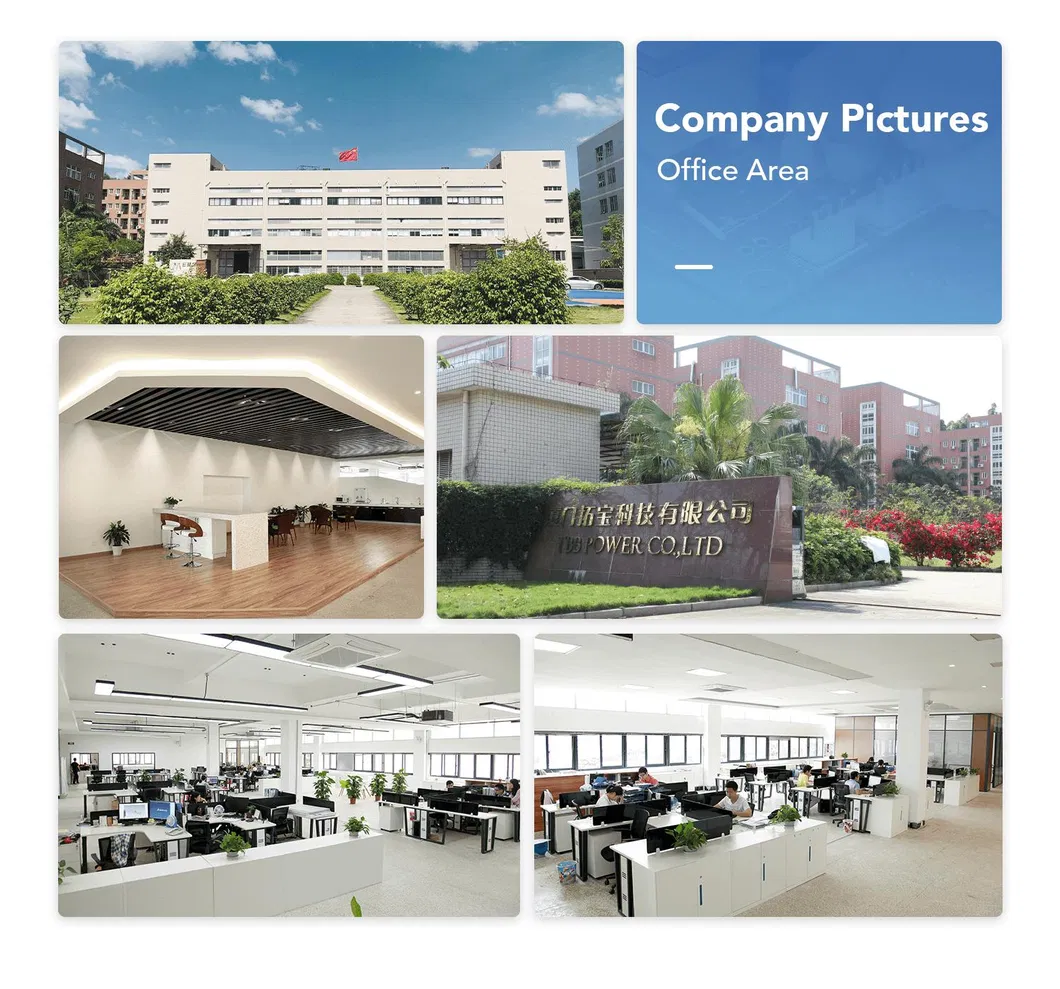

Founded in 2007, TBB Power is a national high-tech enterprise specializing in integrated power supply solutions and intelligence. Headquartered in Dongfu Industrial Park, Haicang District, Xiamen, covers an area of over 10, 000 square meters. Products are exported to more than 50 countries and regions.

TBB Power has the most complete product line in the industry and is one of the world's best suppliers of modified car power systems and independent power solution.

The products mainly cover three markets:

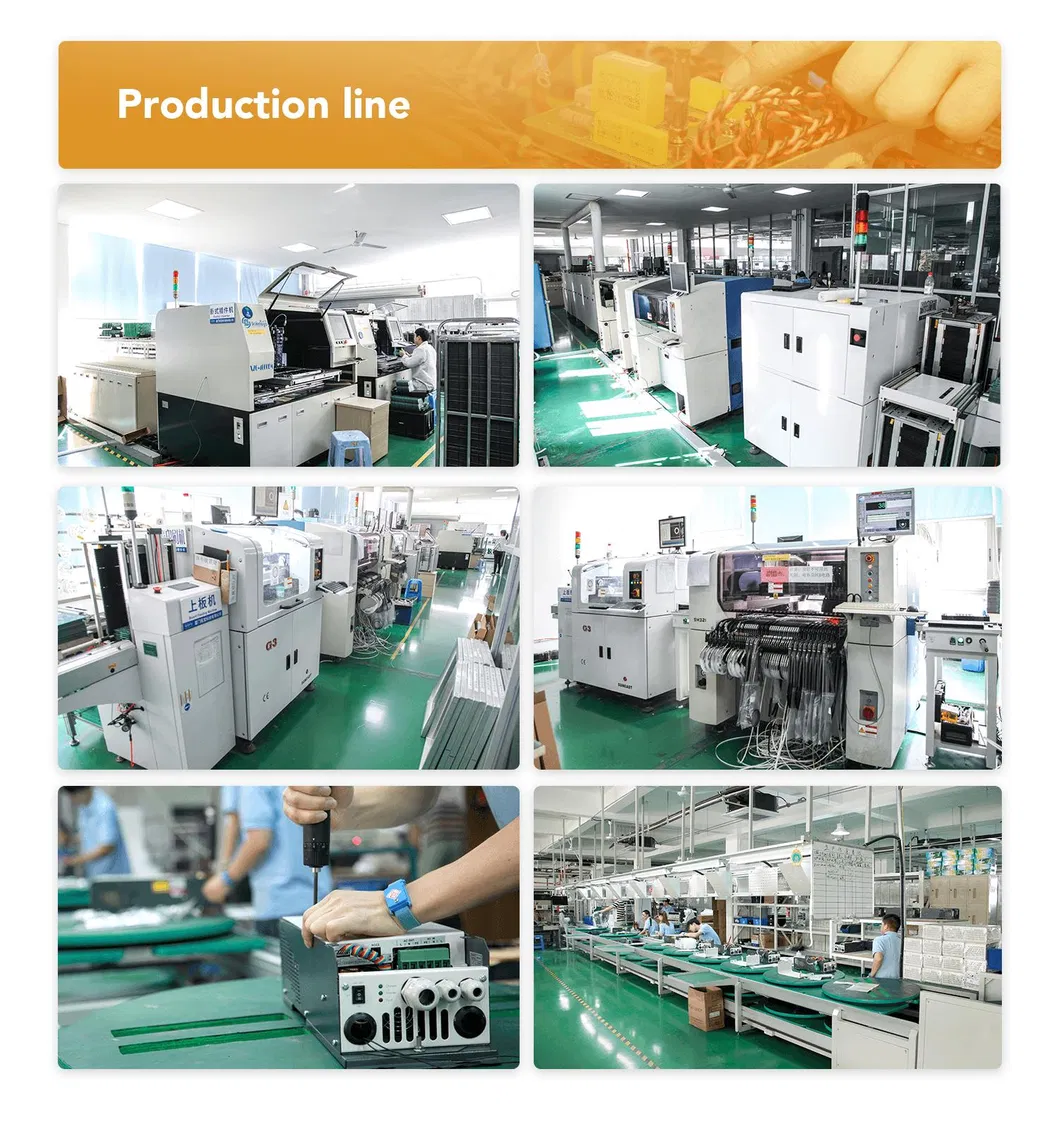

TBB Power attaches great importance to technological innovation, The research and development team accounts for more than 30% of the total employees of the company. TBB Power has a complete production system and quality assurance system, and has passed ISO9001, IATF16949 certification. The product line has passed CE, EMARK, UL and other product certifications.
