Home > Products > Solar Energy System > Sofar Solar Inverter Solar Energy 5.5kw 6.6kw 8.8kw PV Solar Inverter

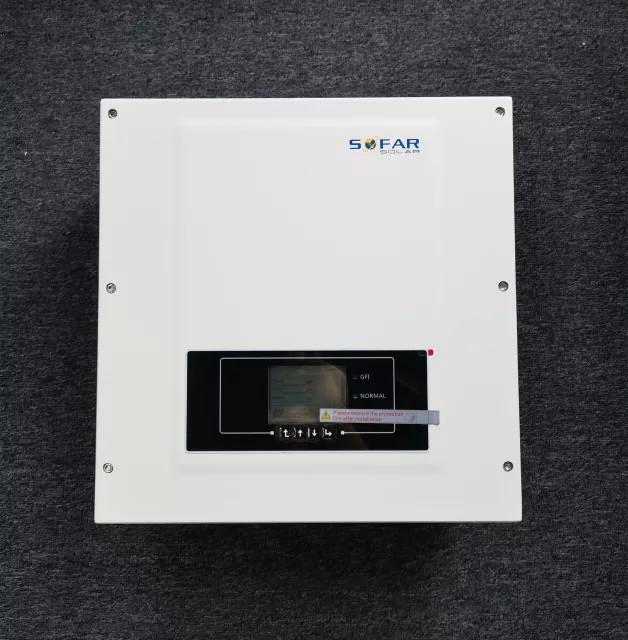

Sofar Solar Inverter Solar Energy 5.5kw 6.6kw 8.8kw PV Solar Inverter
Product DescriptionProduct ParametersDatasheetSOFAR 5.5KTL-XSOFAR 6.6KTL-XSOFAR 8.8KTL-XSOFAR 11KTL-XInput(DC)Recommended Max. PV input power6000W7200W9600W12000WMax DC power for single MPPT5700W6250W6200W6200WNumber of independent MPPT2Number of DC inputs1 for each MPPTStart-up input voltage180VRat......
Send Inquiry
Product Description
Datasheet | SOFAR 5.5KTL-X | SOFAR 6.6KTL-X | SOFAR 8.8KTL-X | SOFAR 11KTL-X |
Input(DC) | ||||
Recommended Max. PV input power | 6000W | 7200W | 9600W | 12000W |
Max DC power for single MPPT | 5700W | 6250W | 6200W | 6200W |
Number of independent MPPT | 2 | |||
Number of DC inputs | 1 for each MPPT | |||
Start-up input voltage | 180V | |||
Rated input voltage | 600V | |||
Mppt voltage range | 160-960V | |||
Full load DC voltage range | 240V-850V | 290V-850V | 380V-850V | 480V-850V |
Max.input current per MPPT | 11A/11A | |||
Output(AC) | ||||
Rated power | 5500W | 6600W | 8800W | 11000W |
Max.AC power | 5500VA | 6600VA | 8800VA | 11000VA |
Max.output current | 8.0A | 9.6A | 12.8A | 15.9A |
Nominal Grid Voltage | 3/N/PE,220/380Vac,230/400Vac,240/415Vac | |||
Grid Voltage Range | 310Vac-480Vac(According to local standard) | |||
Nominal Frequency range | 50Hz/60Hz | |||
Grid frequency range | 45Hz-55Hz/54Hz-66Hz(According to local standard) | |||
Active power adjustable range | 0-100% | |||
THDi | <3% | |||
Power factor | 1 default (adjustable+/-0.8) | |||
Power Limit export | Zero export or adjustable power limit export | |||
Performance | ||||
DC switch | Yes | |||
Safety | Anti islanding,RCMU,Ground fault monitoring | |||
ARPC | Anti reverse power controller(optional) | |||
Comunication | ||||
Standard Communication Mode | RS485,Wifi/GPRS(optional),SD card | |||
Operation Data Storage | 25 years | |||
