Product Description

Slewing drive for solar power generation

Model	SVH3	Place of Origin	Changzhou,China
Brand	Coresun Drive	Type	Dual Axis
IP Class	IP65	Output Torque	446N.m
Tilting Moment Torque	1100N.m	Holding Torque	2000N.m
Mounting Bolts	M10	Output Speed	1rpm
Gear Ratio	62:1	Efficiency	40%

Coresun Slewing Drive movement can reduce power consumption, since the security role. In addition to the field of use in the daily solar power systems are usually used for Special vehicle, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc...The Slewing Drive in the solar photovoltaic industry, the general configuration DC planetary reduction motor or AC geared motors; Main configuration of the hydraulic motor as a power-driven construction machinery

Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.

Coresun Slewing Drive principle of the large transmission ratio of the deceleration device to transmit motion and power between the two axes staggered in space. The Slewing Drive transmission is usually the case of the main components of the worm and wheel bearings, shell, and the power source
As the core component of turntable bearings, can withstand the axial load, radial load and overturning moment.

Slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.

When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m² solar panel, 7 inch for 10-17 m² solar panel, 9 inch for 18-30 m², 12 inch for 31-45 m², and 14 inch for 46-60 m². These are provided for your reference. For more specific and detailed information, please contact me directly.

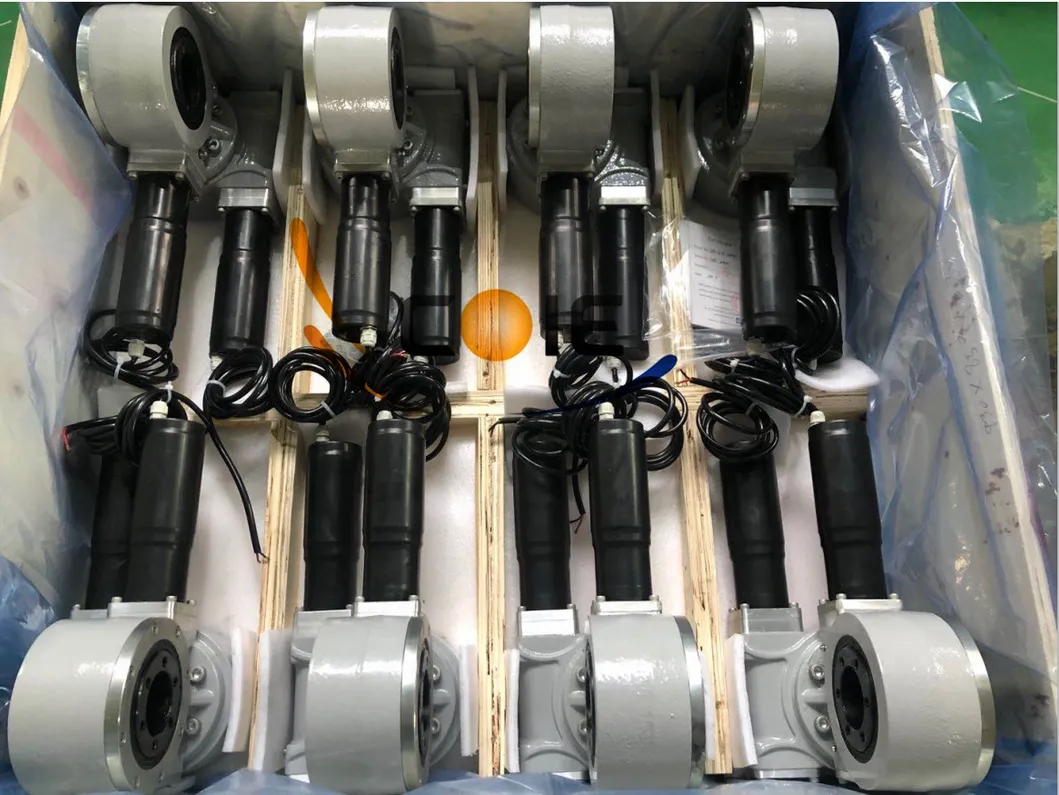

3" SVH3 Slewing Drive Production Photo

Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel Kit

Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel Kit

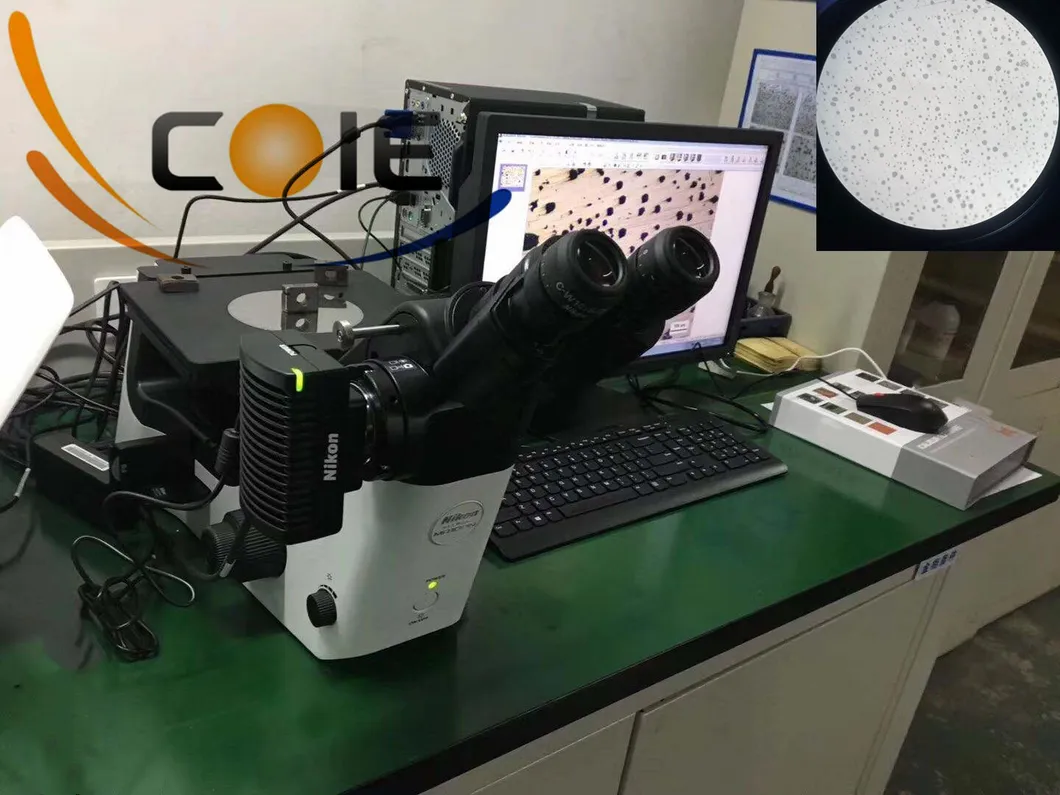

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows the standard inspection specification.

Slewing Drives Precision Solar Tracking System and Strong Torque for Slow Rotating Solar Panel Kit
