Product Description

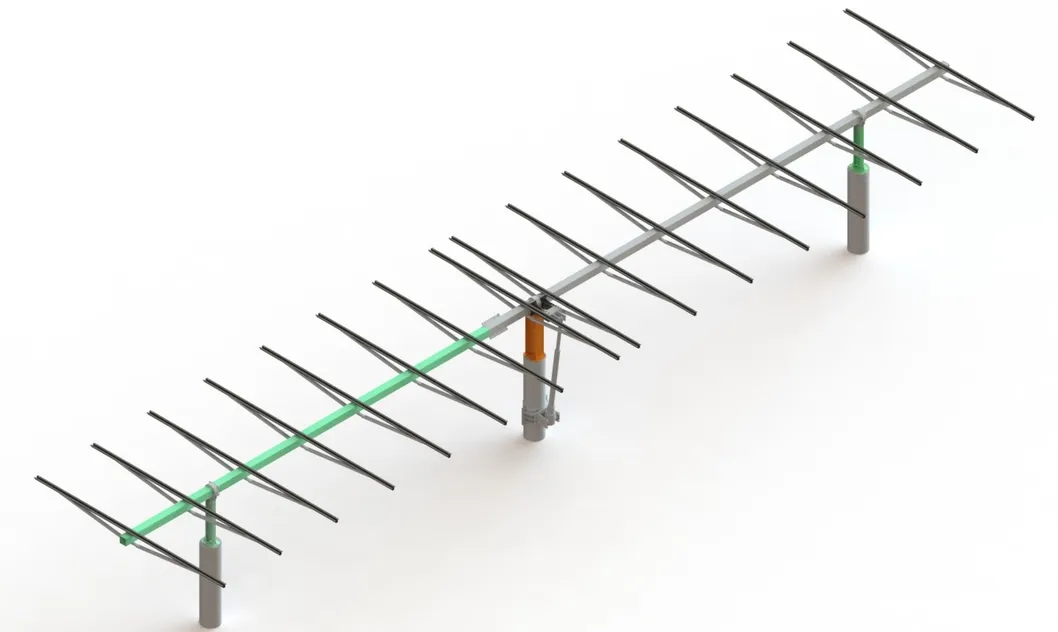

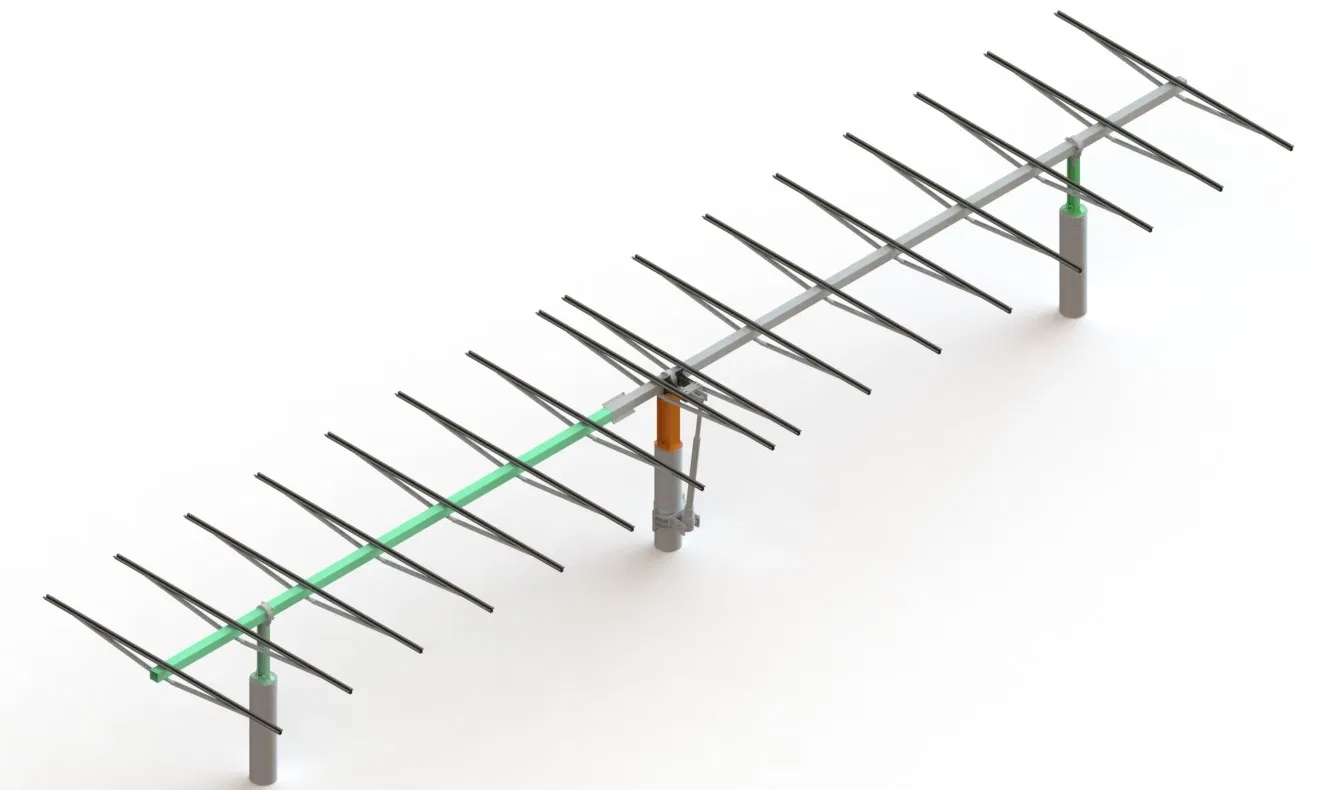

Horizon P1 - Horizontal Single Axis Tracker (Linear Actuator / Push Rod)
Features & Characteristics:

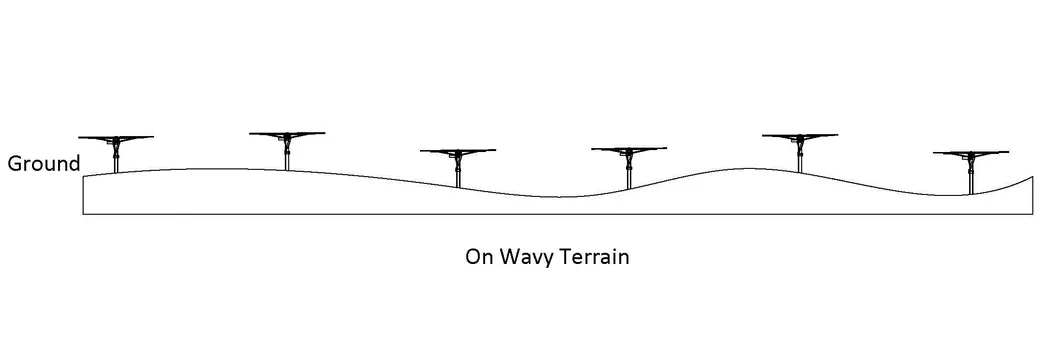

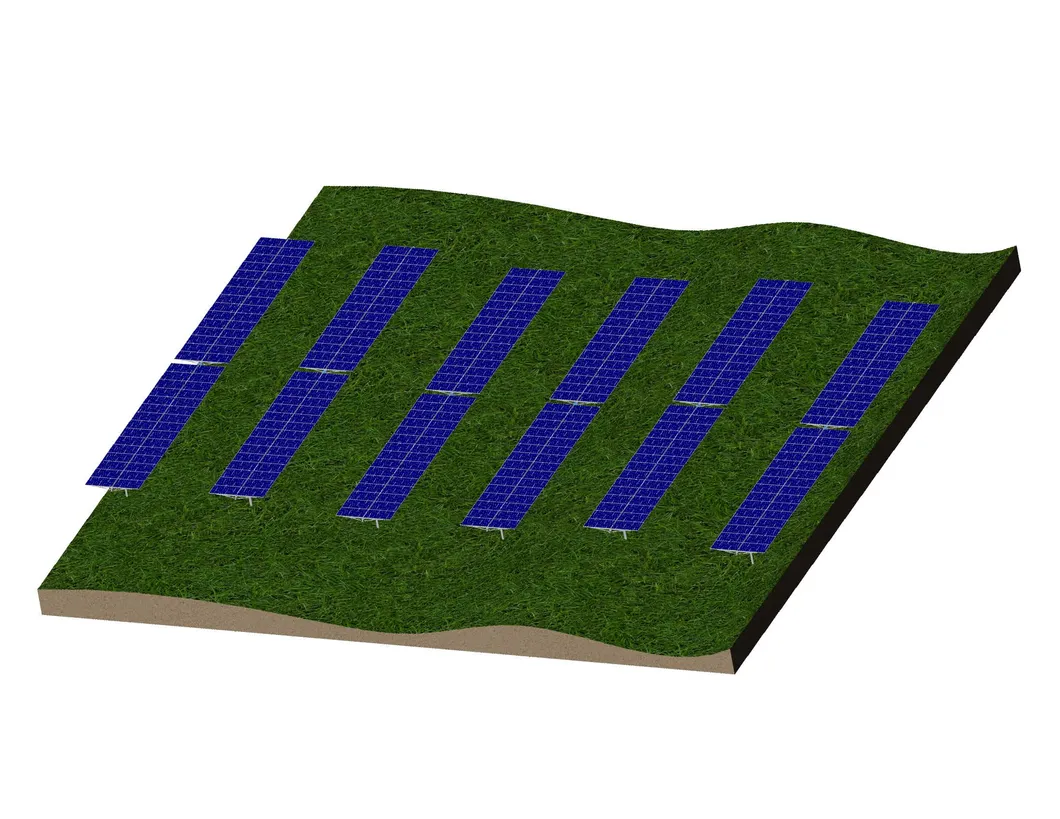

Max. gradient difference adaptability in N-S direction up to 15%.

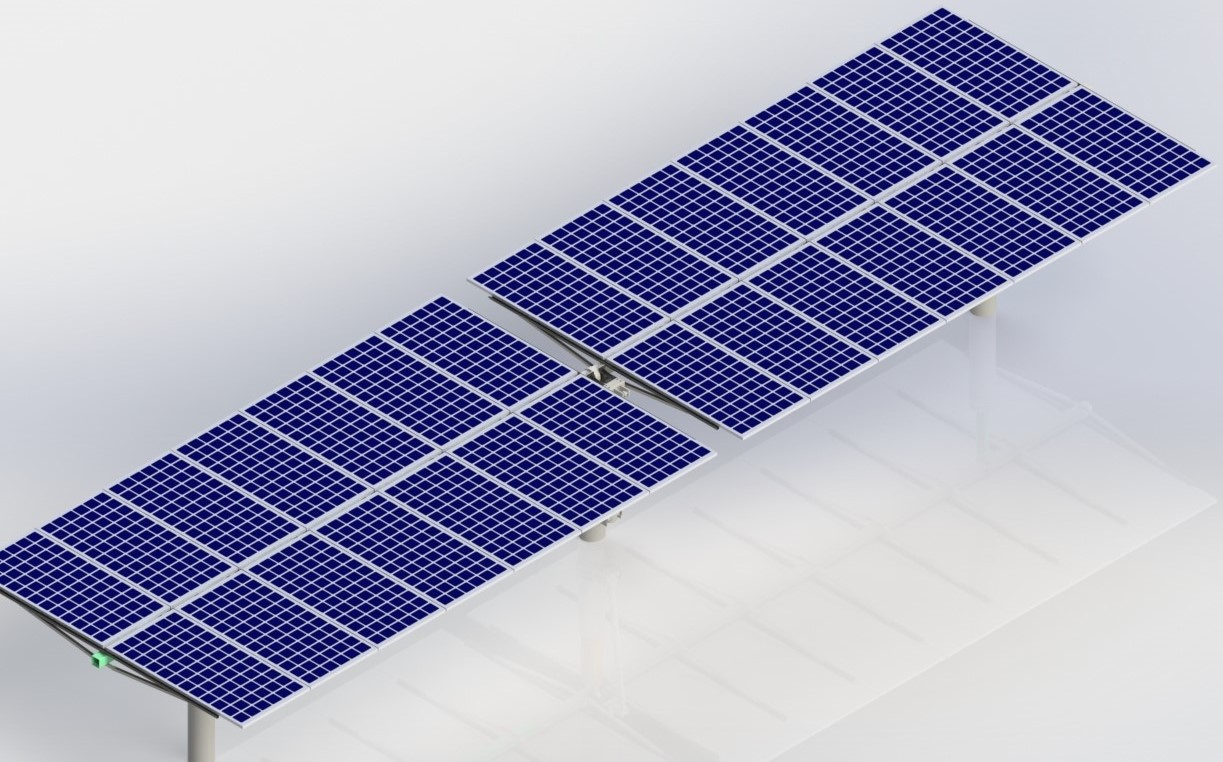

Excellent compatibility with all the mainstream solar modules available in the industry: framed,frameless and bi-facial. Independent 2V module design, which reduces the quantity of piles and the construction cost significantly.
Free obstacles among trackers in N-S direction, easy to maintain and clean.
Multi-point drive, within 20 meters length for each tracker in the north-south direction, which greatly reduce the impact of wind torsion to bracket, improve the critical anti-wind capability, avoid the instability that the traditional 2V system may have in extreme weather.
Its design is configured with one single set of controller, which ensures point-to-point real-time monitoring, easy to detect fault points in time every time and reduce ouput loss.
Technical Details
Tracking Structure
Control System
Features & Characteristics:
Max. gradient difference adaptability in N-S direction up to 15%.
Excellent compatibility with all the mainstream solar modules available in the industry: framed,frameless and bi-facial. Independent 2V module design, which reduces the quantity of piles and the construction cost significantly.
Free obstacles among trackers in N-S direction, easy to maintain and clean.
Multi-point drive, within 20 meters length for each tracker in the north-south direction, which greatly reduce the impact of wind torsion to bracket, improve the critical anti-wind capability, avoid the instability that the traditional 2V system may have in extreme weather.
Its design is configured with one single set of controller, which ensures point-to-point real-time monitoring, easy to detect fault points in time every time and reduce ouput loss.
Technical Details

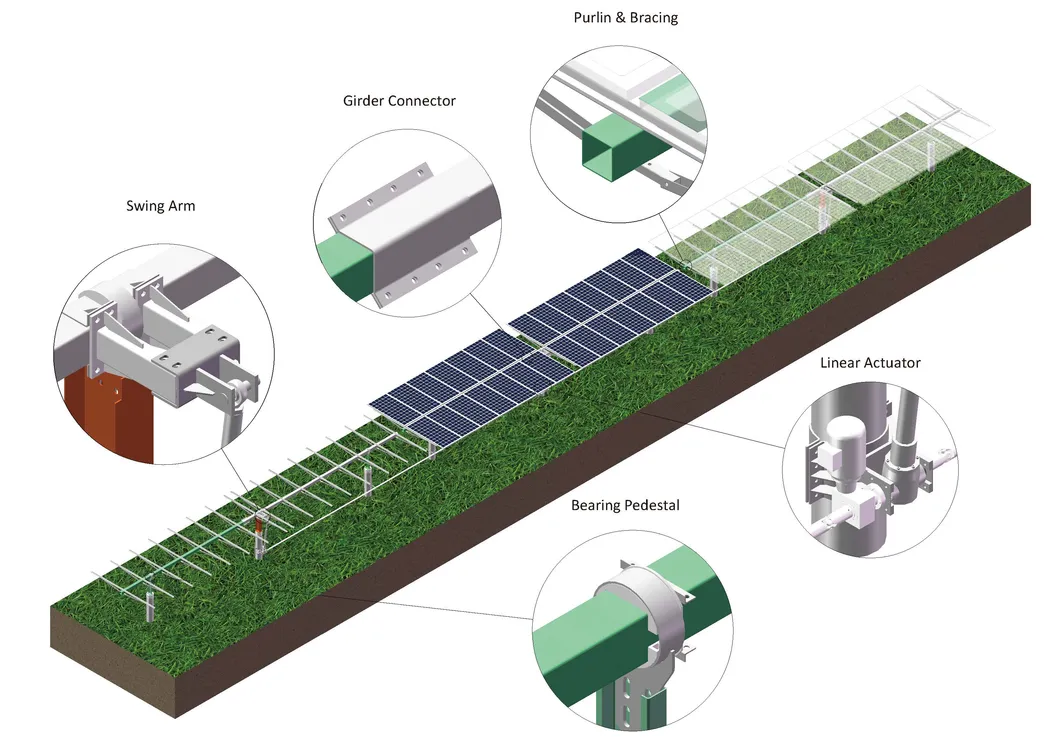

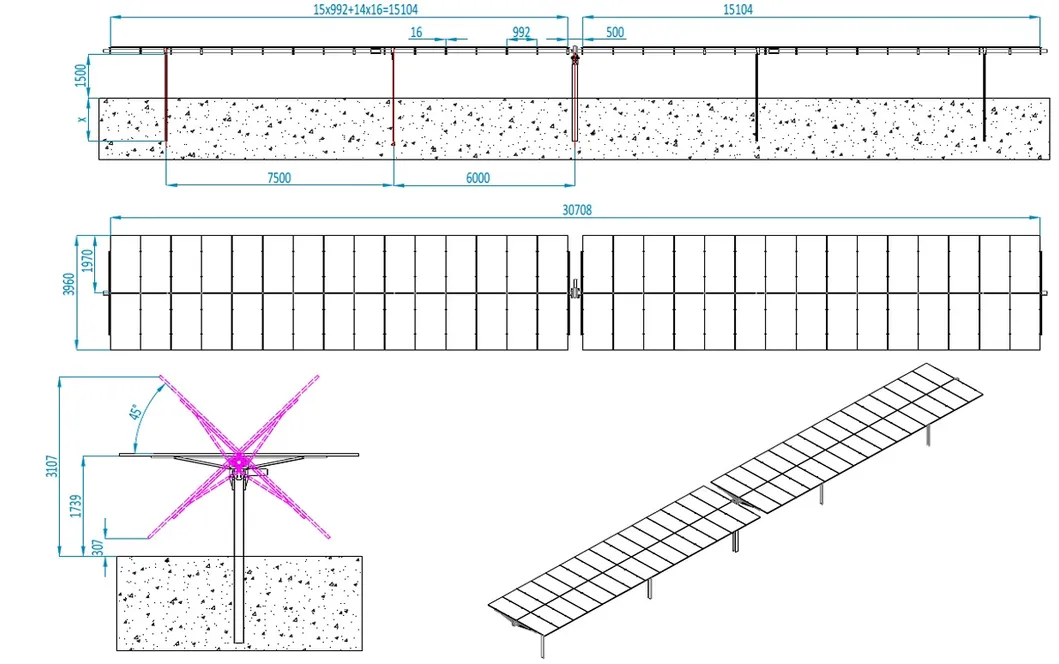

Tracking Structure
| Tracking Technology | Horizontal Single Axis Tracker |
| System Voltage | 1000V / 1500V |
| Tracking Range (East to West) | ±45° |
| Working Wind Speed | 18 m/s(Customizable) |
| Max. Wind Speed (at Stow Position) | 45 m/s (ASCE 7-10) |
| Modules per Tracker | ≤90 in portrait(Customizable) |
| Principal Materials | HDG Q235B/Q355B/ZAM |
| Mean Coating Thickness | ≥65μm |
| Drive System | Linear Accuator |
| Foundation Type | PHC Pile / Concrete / Driven Pile |
Control System
| Tracking Control | MCU |
| Tracking Mode | Closed Loop Time Control + GPS |
| Tracking Accuracy | <1° |
| Communication | Wired/ Zigbee |
| Powder Acquisition Mode | External Supply / Self-powered |
| Communication Protocol | Modbus RTU |
| Auto Stow at Night | Yes |
| Auto Stow During Strong Wind | Yes (response after 10 seconds) |
| Optimized Backtracking | Yes |
| Protection Degree | IP65 |
| Working Temperature | -30°C ~ 65°C |
| Anemometer | Yes |
| Power Consumption | 0.3KW/H per day |
