Rosen 9kw Solar Generator off Grid System for Home / Farm Power
Principle of solar energyThe Off-Grid solar system is an electricity generating solar PV power system that is not connected to the utility(State) grid, and has to be connected with batteries for electricity storage.It consists of solar panels, Charge Controller(regulator), Battery,off grid Inverters......
Send Inquiry
Product Description

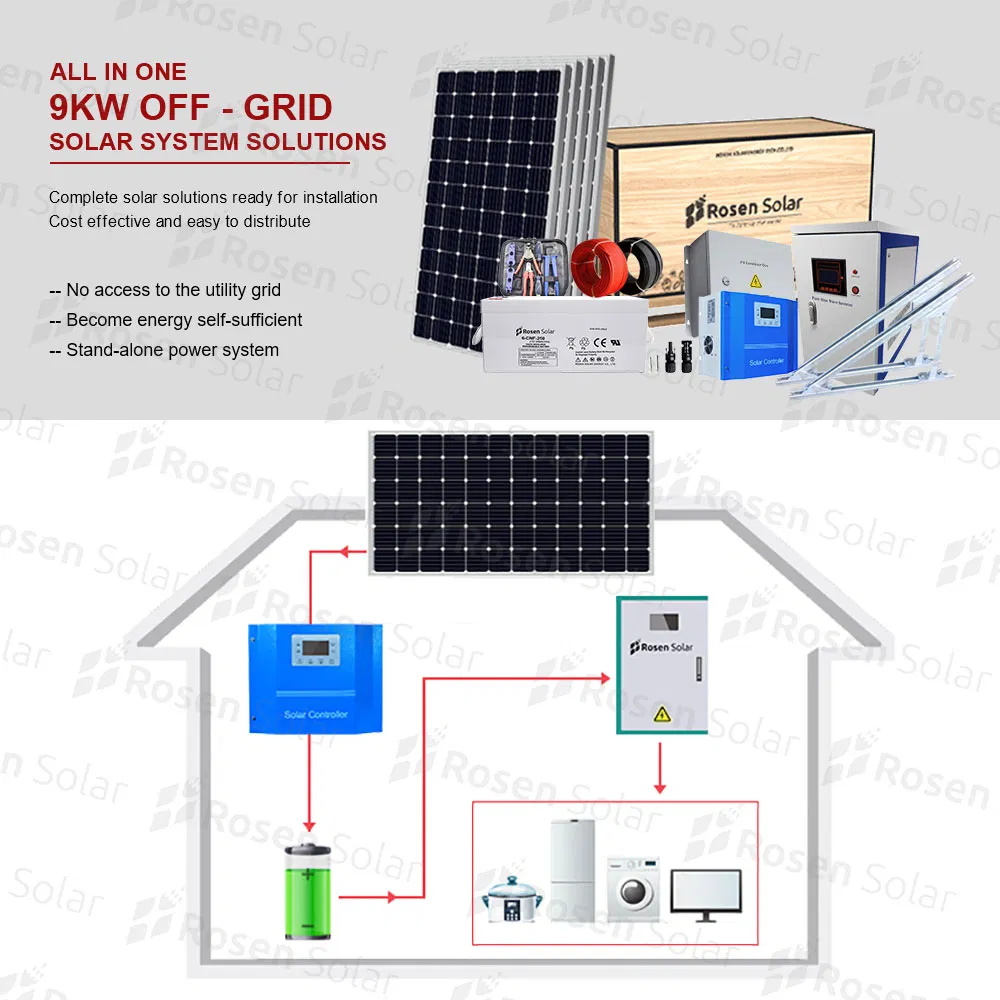

Principle of solar energy
The Off-Grid solar system is an electricity generating solar PV power system that is not connected to the utility(State) grid, and has to be connected with batteries for electricity storage.

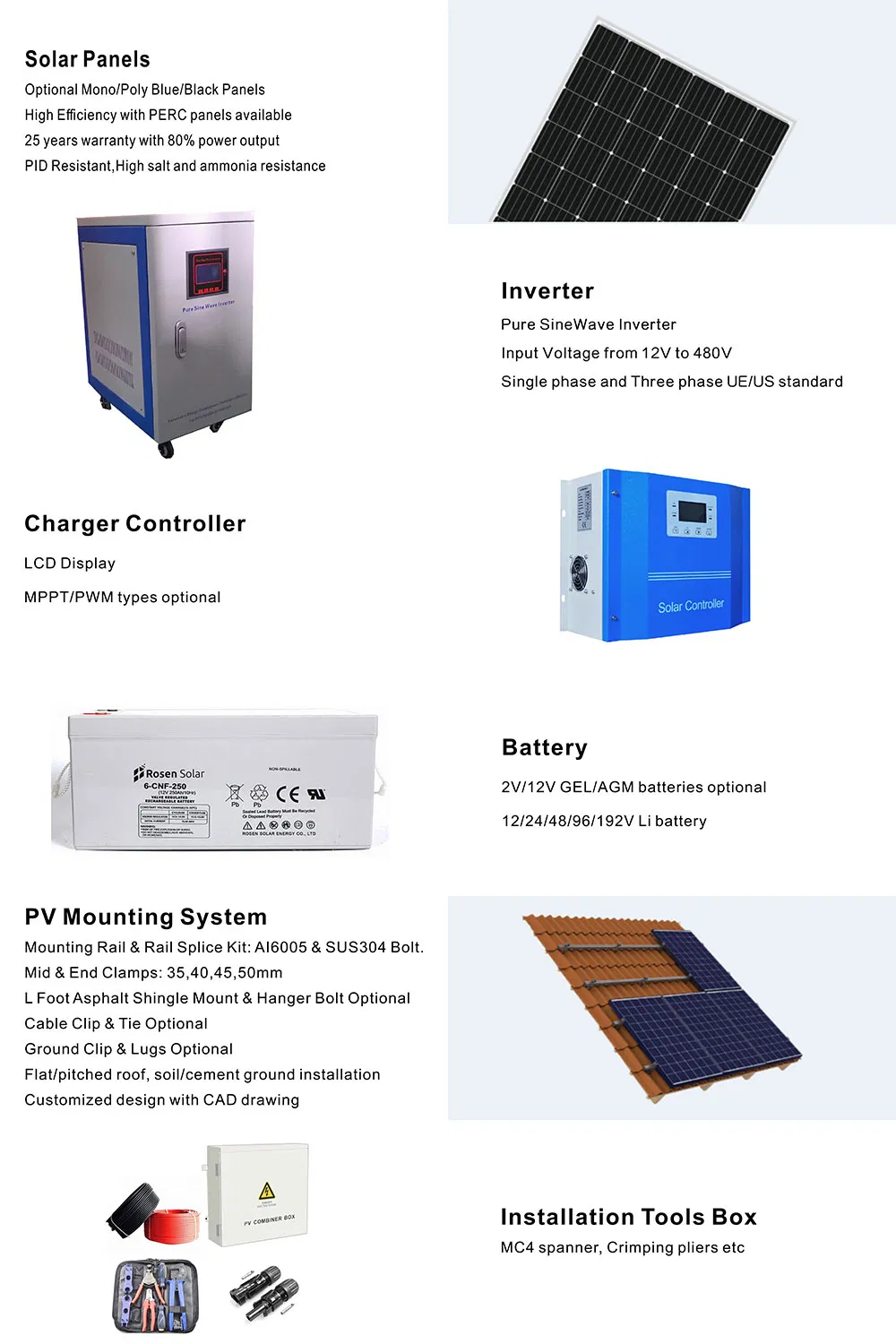

It consists of solar panels, Charge Controller(regulator), Battery,off grid Inverters, Mounting Brackets and solar system connection equipments such as MC4, PV Cable and Installation Tool Box.
Users can store the excess power in the batteries for usage at night or backup of sudden power cut. The inverter converts the DC power into AC for loads single phase(110/120V;220/230/240Vac) or three phase(240V;380V;480Vac)etc. It is also called Stand Alone System(SAPS) functioned as UPS.

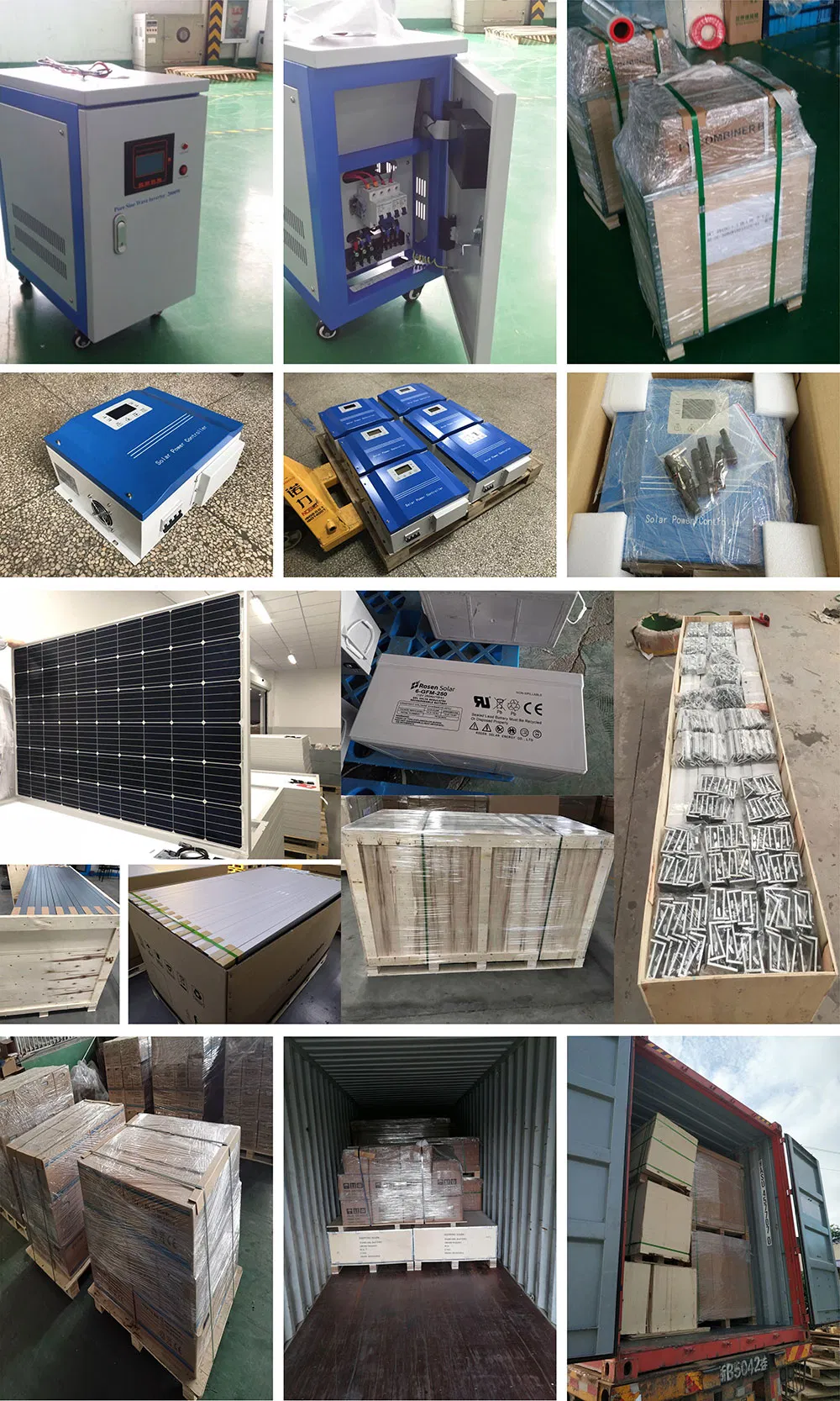

Ready for Installation Package and Delivery

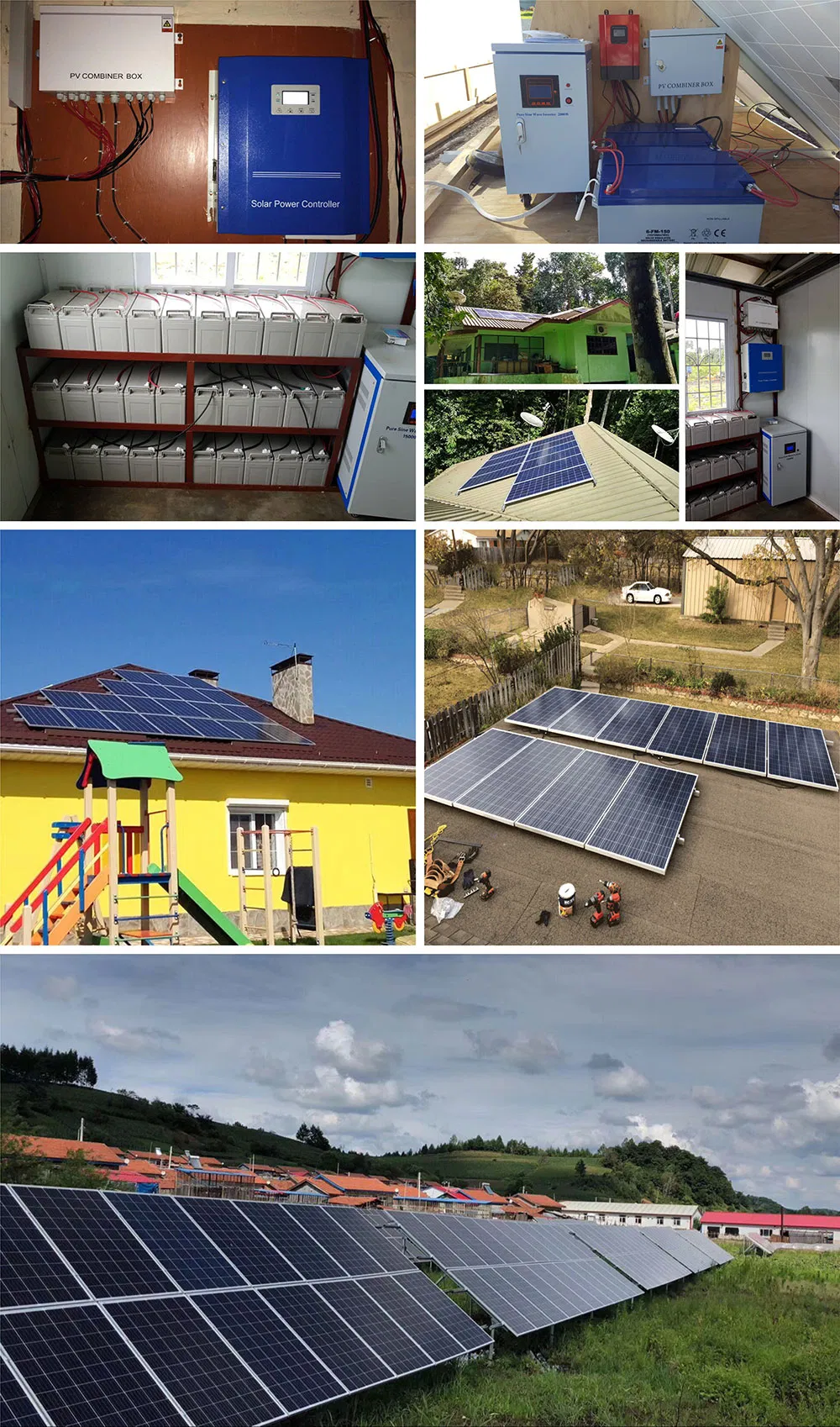

Our Projects
Rosen Off Grid Projects are installed all around the world, mainly in Africa, South America, Mid-East, Asia etc,for rooftop or ground installation, with Residential Systems 1-20Kilowatts, Commercial systems 30-300Kilowatts and Industrial projects with battery storage.
The Off-Grid solar system is an electricity generating solar PV power system that is not connected to the utility(State) grid, and has to be connected with batteries for electricity storage.
It consists of solar panels, Charge Controller(regulator), Battery,off grid Inverters, Mounting Brackets and solar system connection equipments such as MC4, PV Cable and Installation Tool Box.
Users can store the excess power in the batteries for usage at night or backup of sudden power cut. The inverter converts the DC power into AC for loads single phase(110/120V;220/230/240Vac) or three phase(240V;380V;480Vac)etc. It is also called Stand Alone System(SAPS) functioned as UPS.

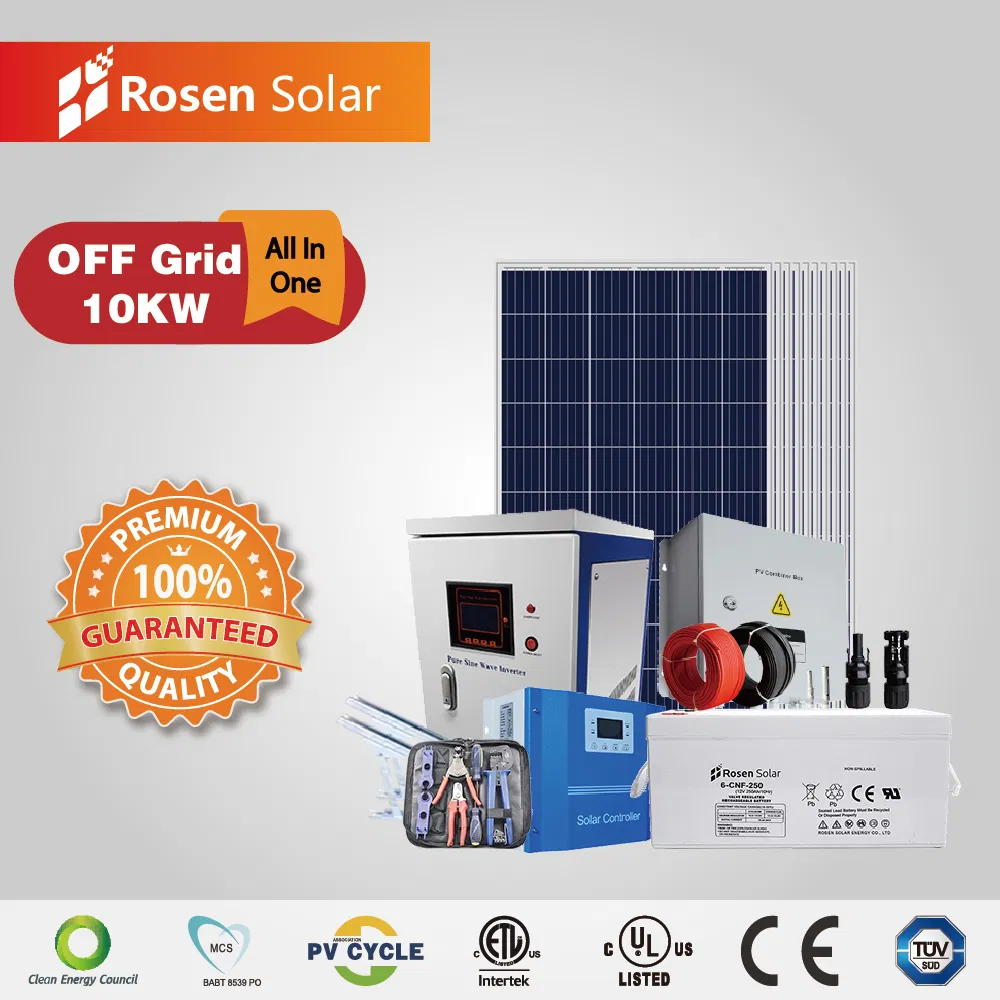

| 9KW OFF GRID SOLAR SYSTEM CONFIGURATION | |||||
| No. | Photo | Item | Specification | Quantity | Warranty |

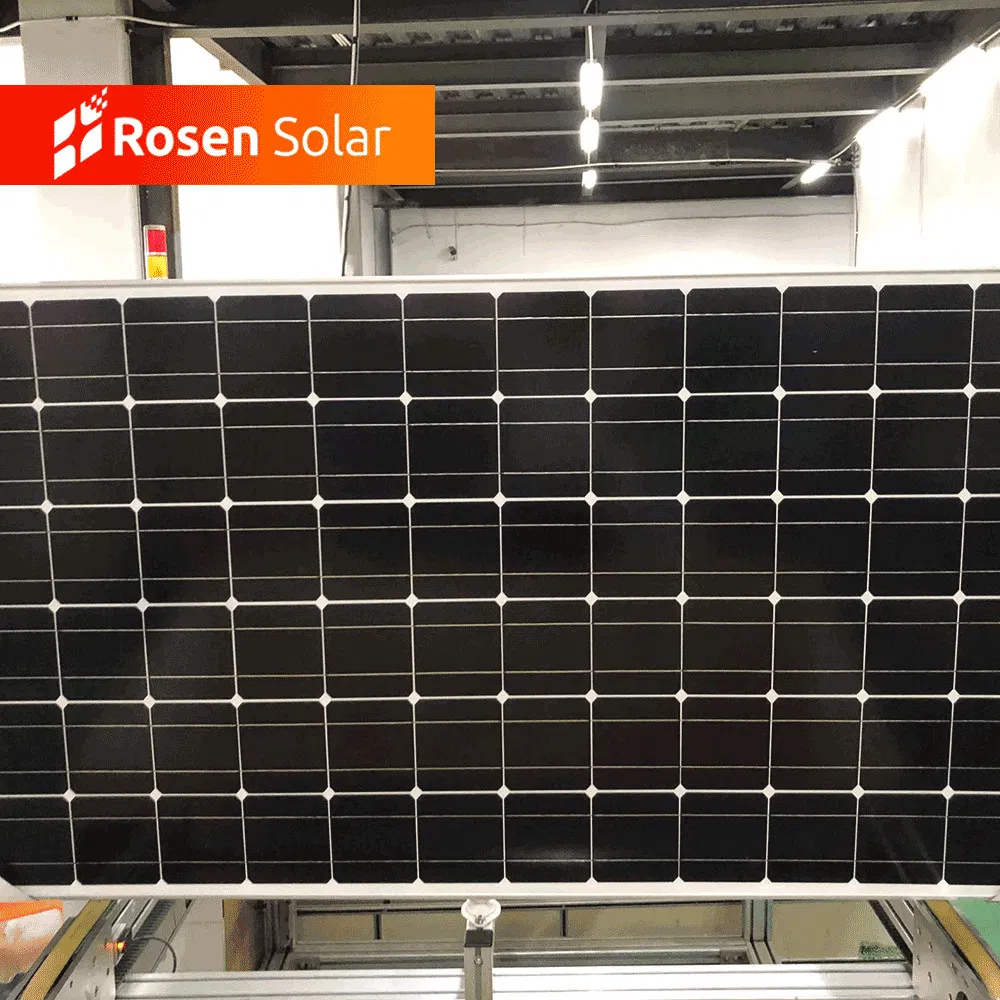

| 1 |  | Solar Panels | Rosen PV Module Model:RS380M-72 Mono 380W 72cells Dimension: 1956*992*40mm Weight: 22kg | 24 pcs | 25 Years |
| 2 |  | PV Combiner Box | Rosen DC Combiner Box 3 input 1 output (Switches,Breaker, SPD, Anti-lightning) | 1 pc | 10 Years |

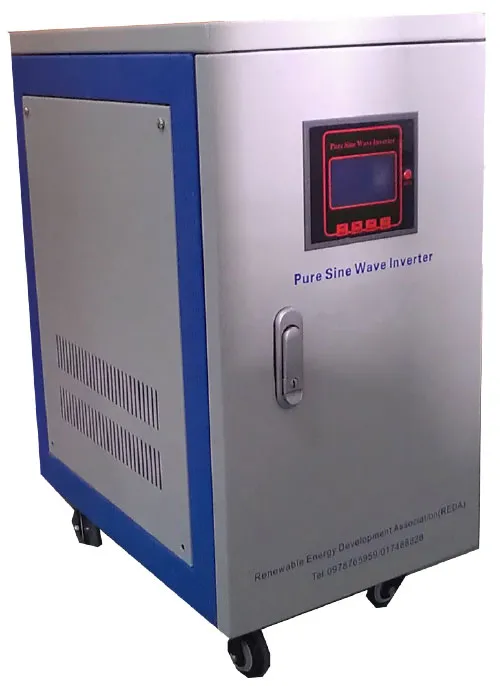

| 3 |  | Off Grid Inverter | Off Grid inverter 9KW 192Vdc AC Single/Three Phase Opt EU: 230/380V US: 120/240V Frequency: 50/60Hz | 1 pc | 10 Years |

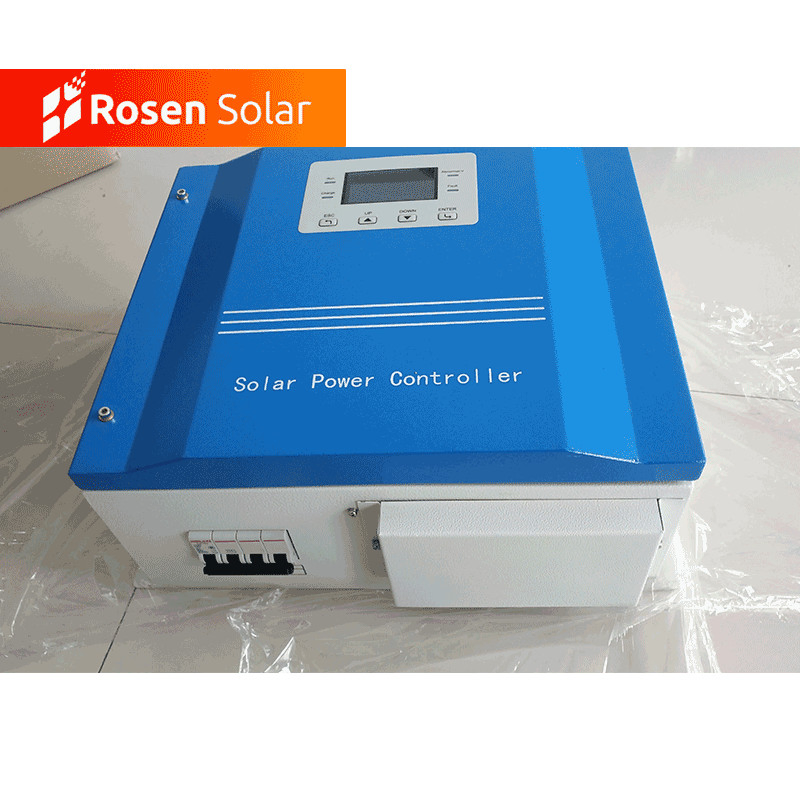

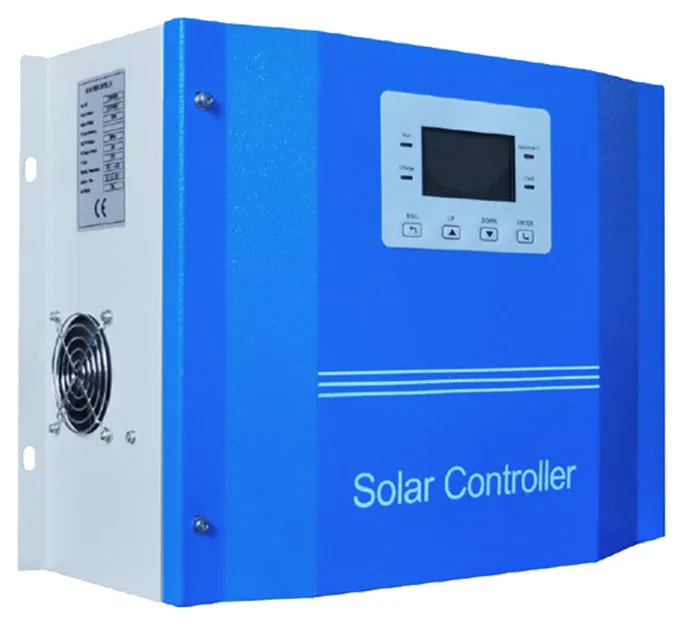

| 4 |  | Charge Controller | MPPT/PWM Regulator 192Vdc 50A Automatical recognition LCD Screen, IP67 Protection | 1 pc | 10 Years |

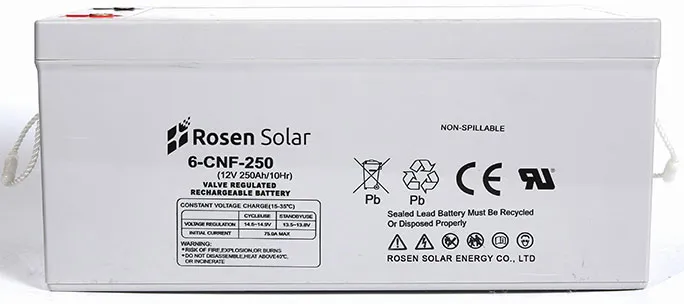

| 5 |  | Deep Cycle Battery | GEL/AGM Batteries Voltage:12V Capacity:250Ah Optional Deep Cycle Maintenance Free Lithium/LifePo4 Optional | 16 pcs | 5 Years |
| 6 |  | Mounting Bracket | Aluminium Alloy / Galvanized steel Mounted on the flat/pitched roof or Ground For roof wind speed up to 40m/s Customized | 1 set | 20 Years |

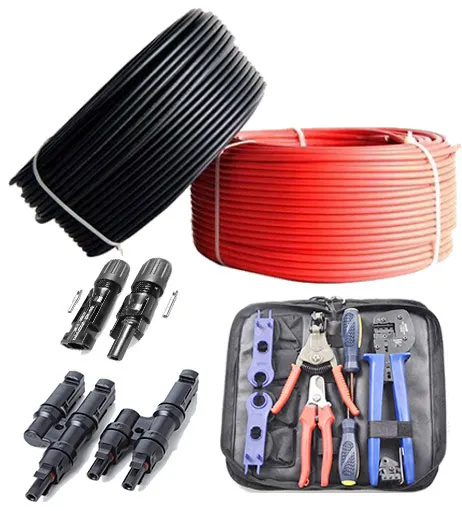

| 7 |  | PV Cable | Single-core PV Cable 4/6/10mm² (+;-) etc, UV Protection | 600 mts | 20 Years |
| MC4 compatible connector | 30A 1000Vdc, Male/Female/Fuse IP67 Rated | 24 pairs | 15 Years | ||
| Installation Tools | Wire stripper; wire cutters; Crimping pliers For TYCO connector etc | 1 set | 10 Years | ||
| Technical Specification, Installation Manual, Quotation List: 00-86 159-55104975 (Tel) | |||||
Ready for Installation Package and Delivery
Our Projects
Rosen Off Grid Projects are installed all around the world, mainly in Africa, South America, Mid-East, Asia etc,for rooftop or ground installation, with Residential Systems 1-20Kilowatts, Commercial systems 30-300Kilowatts and Industrial projects with battery storage.
