Qbh Stainless Steel Solar Power Energy Panel Holder Dual Ended Thread Stud Flange Nut EPDM Washer Roofing Bolt Repairing Replace Spare PV Photovoltaic Parts
SpeciticationsProduct NameDouble-Threaded Bolts for PV Mounting SystemsPlace of Origin:CHINABrand Name:QBHWeb:qbfastener.en.made-in-china.comCertification:ISO9001Model Number:M10 M12Minimum Order Quantity:900kgPrice:2500USD-4000USD/TONPackaging Details:BULK or according customer requirementDelivery ......
Send Inquiry
Product Description
Specitications
| Product Name | Double-Threaded Bolts for PV Mounting Systems |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | QBH |
| Web: | qbfastener.en.made-in-china.com |
| Certification: | ISO9001 |
| Model Number: | M10 M12 |
| Minimum Order Quantity: | 900kg |
| Price: | 2500USD-4000USD/TON |
| Packaging Details: | BULK or according customer requirement |
| Delivery Time: | 30DAYS |
| Payment Terms: | L/C, T/T,OA |
| Supply Ability: | 200TON/MONTH |
Product Descriptions

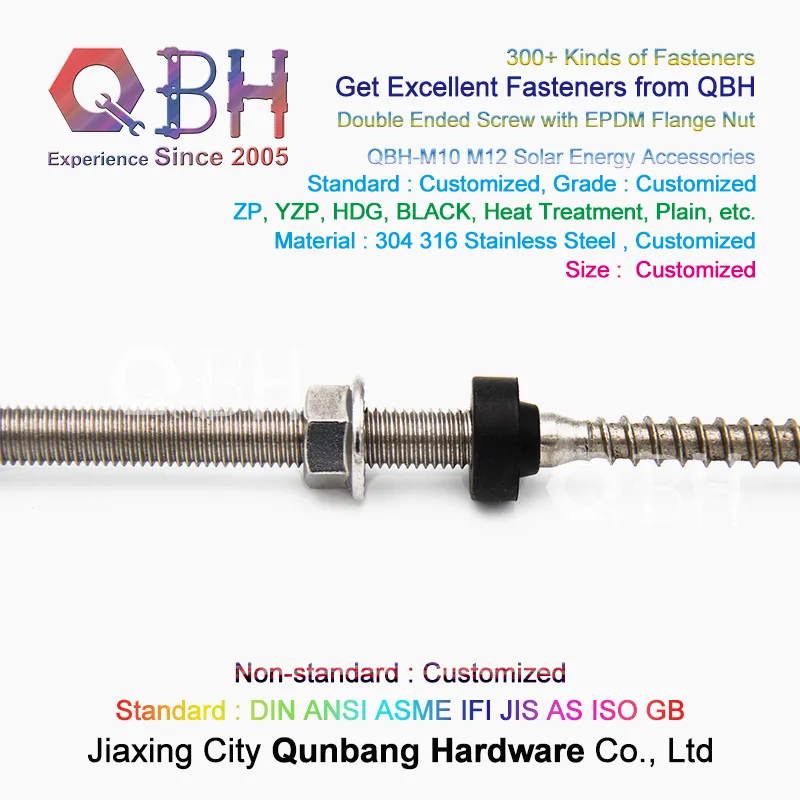

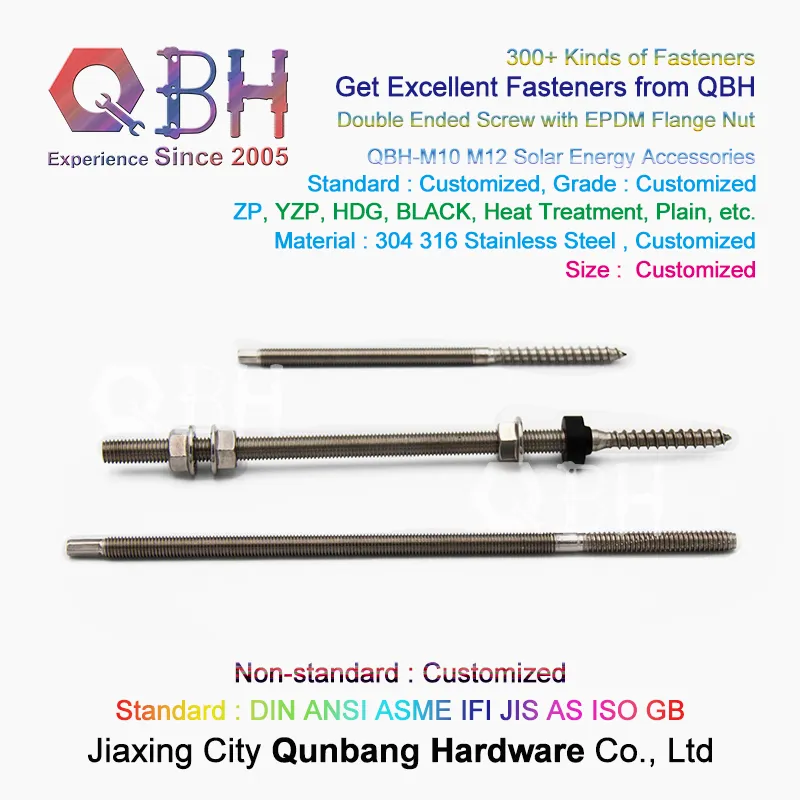

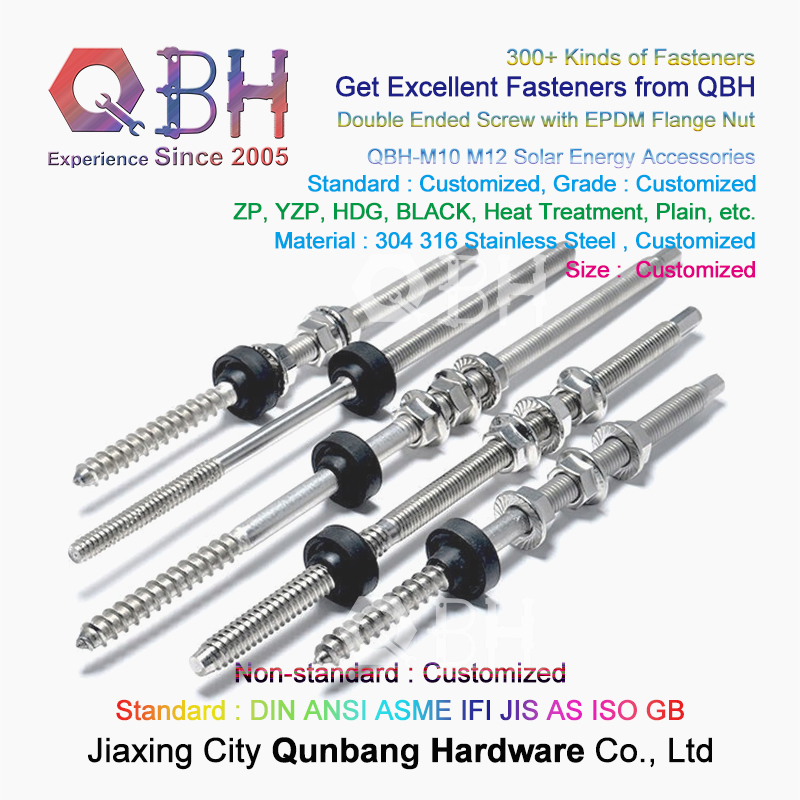

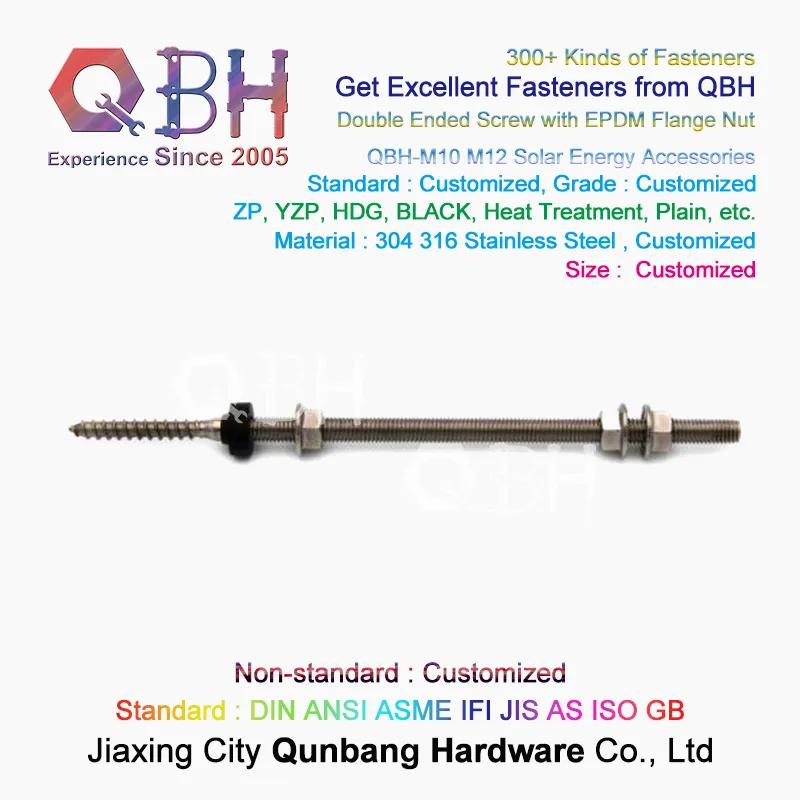

Stainless Steel 304 316 M10 M12 Dowel Screw Take With EPDM And Flange Nus For
Solar Mounting From QBH High Quality

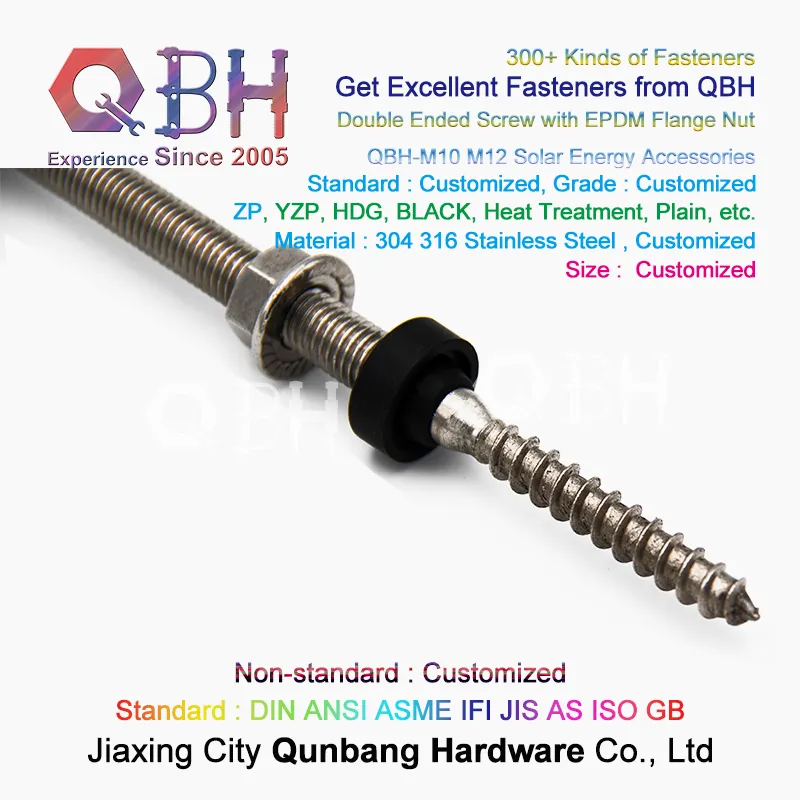

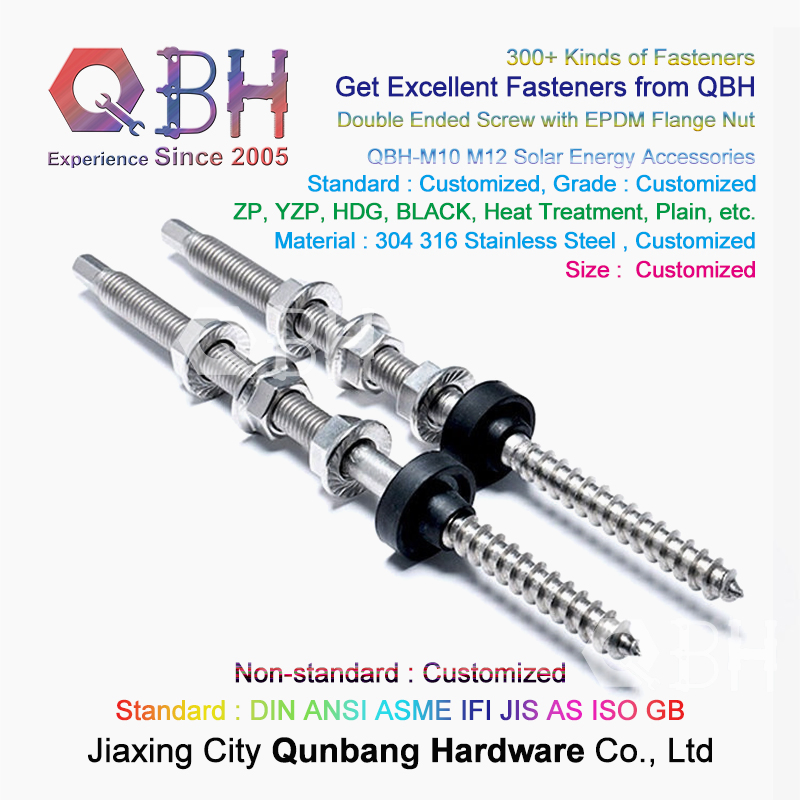

It is mainly used in photovoltaic industry,the two ends present different thread,at the same
time assemble with EPDM and flange nuts.

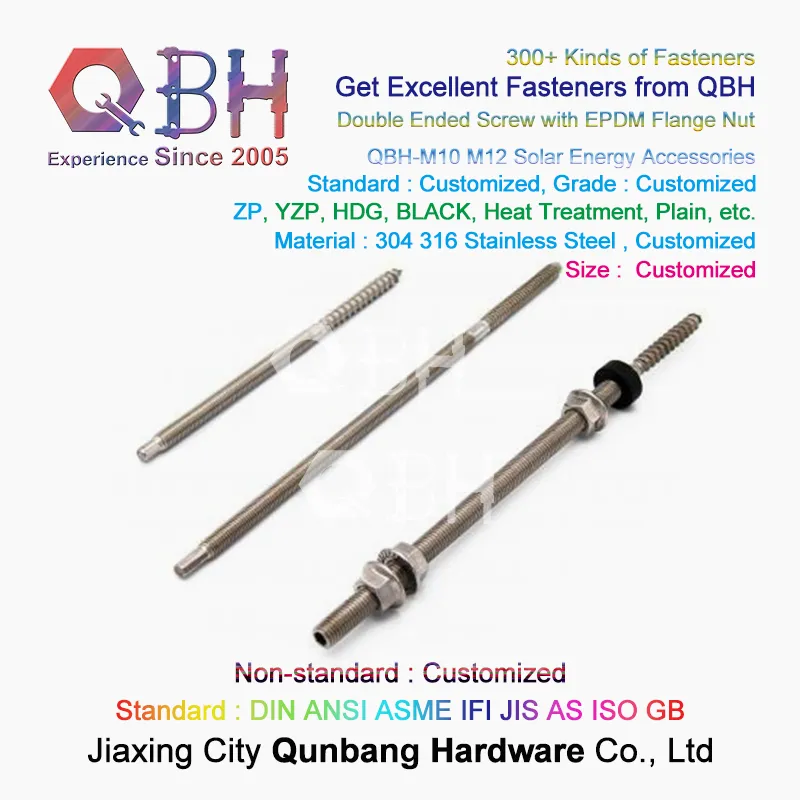

QBH a threaded rod, also known as a stud, is a relatively long rod that is different threaded
on both ends; the thread may extend along the complete length of the rod.They are designed
to be used in tension. Threaded rod in bar stock form is often called all-thread.
We can provide free samples for customer inspection,if we cha any more.

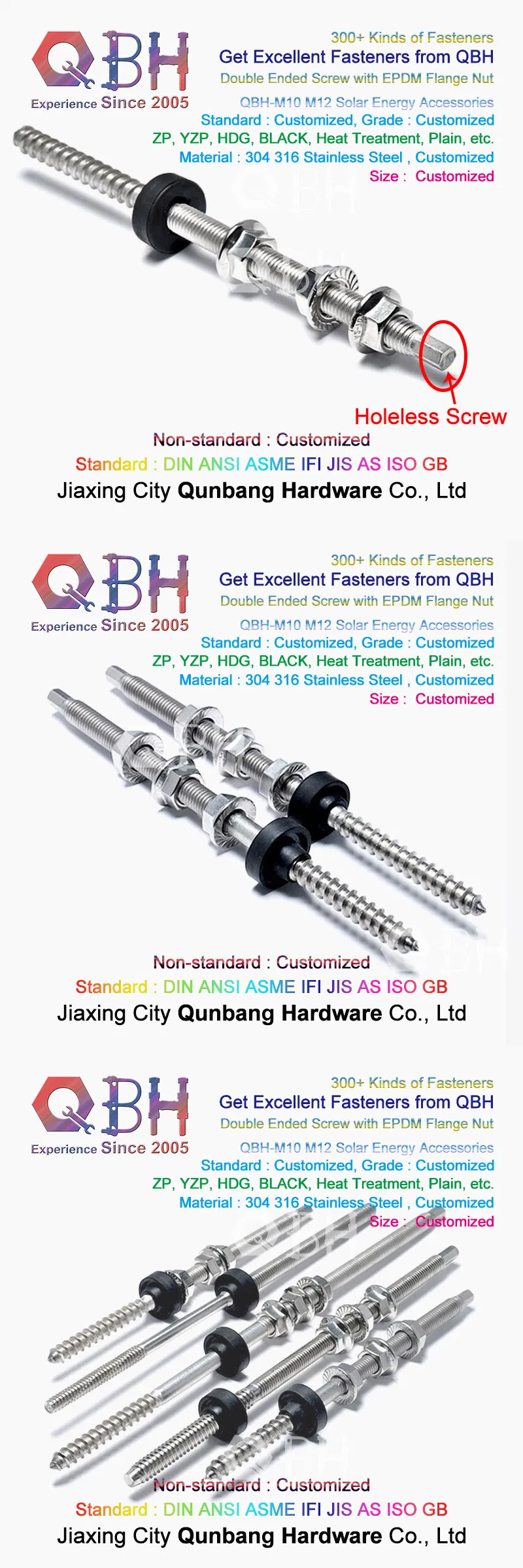

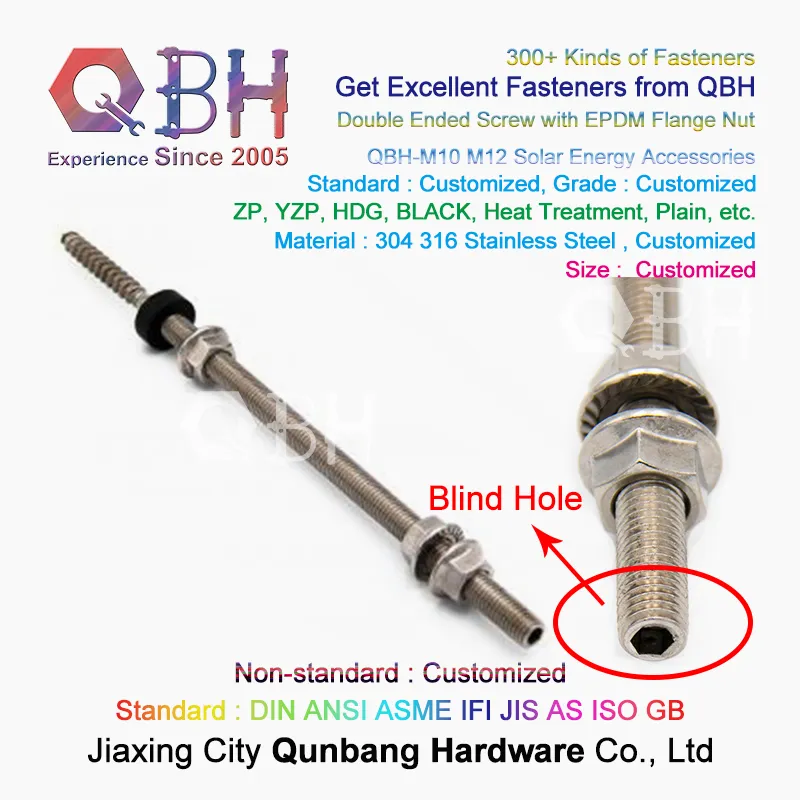

Socket Blind Hole Type
Solid Type

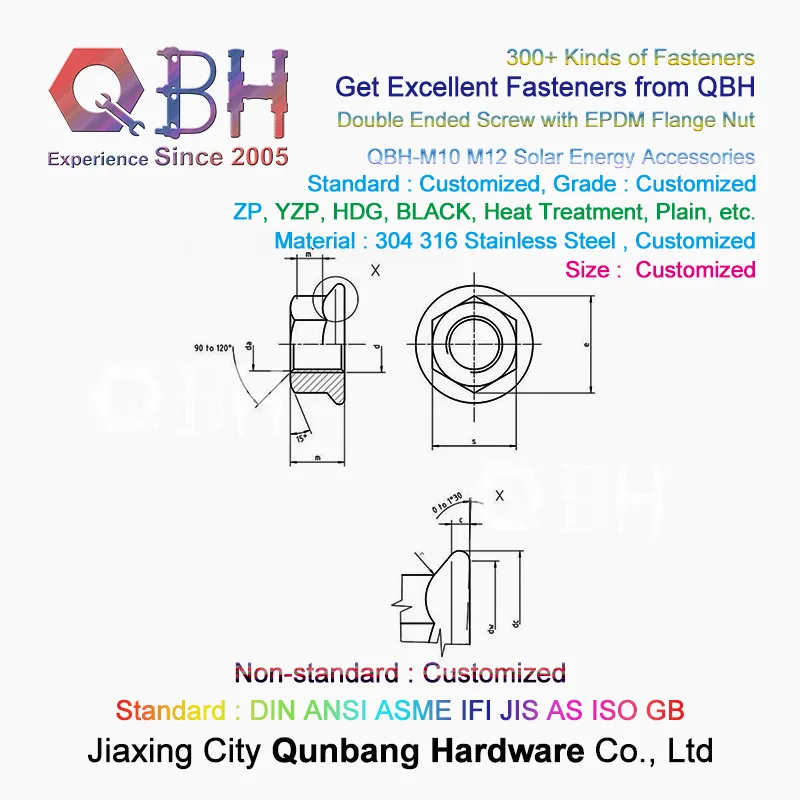

FLANGE NUTS
Flange Nuts are hex nuts with a bottom circular flange that is larger than their top hex section. There
are two types commonly available: flange lock nuts, which are prevailing torque type lock nuts,
and serrated flange nuts, which are free spinning but have a serrated bearing surface to grip the
mating surface.
Legend:
s - size of the hexagon
e - the diameter of the circumscribed circle (not less than)
m - height of the nut
d - the nominal diameter of the thread
dc - outer diameter of the ring
dw - contact surface diameter
r - radius
Makings:QBH
MATERIAL:304 316
Stainless: A2 A4
Plastic: -
Non Ferrous: -
Thread: 6G
Notes:
Table according to DIN 6923:
dimensions in mm
| Thread size d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
| - | - | M8x1 | M10x1,25 | M12x1,5 | M14x1,5 | M16x1,5 | M20x1,5 | ||
| - | - | - | (M10x1) | (M12x1,5) | - | - | - | ||
| P | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | |
| c | min. | 1 | 1,1 | 1,2 | 1,5 | 1,8 | 2,1 | 2,4 | 3 |
| da | min. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| max. | 5,75 | 6,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 21,6 | |
| dc | max. | 11,8 | 14,2 | 17,9 | 21,8 | 26 | 29,9 | 34,5 | 42,8 |
| dw | min. | 9,8 | 12,2 | 15,8 | 19,6 | 23,8 | 27,6 | 31,9 | 39,9 |
| e | min. | 8,79 | 11,05 | 14,38 | 16,64 | 20,03 | 23,36 | 26,75 | 32,95 |
| m | max. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| min. | 4,7 | 5,7 | 7,6 | 9,6 | 11,6 | 13,3 | 15,3 | 18,9 | |
| m´ | min. | 2,2 | 3,1 | 4,5 | 5,5 | 6,7 | 7,8 | 9 | 11,1 |
| s | nominal=max. | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
| min. | 7,78 | 9,78 | 12,73 | 14,73 | 17,73 | 20,67 | 23,67 | 29,67 | |
| r | max. | 0,3 | 0,36 | 0,48 | 0,6 | 0,72 | 0,88 | 0,96 | 1,2 |
Process flow
Cold Forging
Annealing Treatment ( if need ) -> Wiredrawing -> Clod Forging -> Tapping -> Make Heat Treatment ( if need )
-> Finish -> Packing
Product Grade
Grade A2-70 A2-80 Grade A4-70 A4-80
Materials and Chemical compstition
| CHEMICAL COMPOSI(% ) | |||||||||
| Type | C | Si | Mn | P | S | Ni | Cr | Mo | Cu |
| ≤ | ≤ | ≤ | ≤ | ≤ | ≥ | ≥ | ≥ | ≈ | |
| 201Cu | 0.08 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 14.0-17.0 | 2.0-3.0 | |
| 201 | 0.15 | 1.00 | 8.50 | 0.06 | 0.03 | 3.50-5.50 | 16.0-18.0 | ||
| 202 | 0.15 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 17.0-19.0 | ||
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 5.00-8.00 | 16.0-18.0 | ||
| 302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | ||
| XM7 (302HQ) | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.5 | 17.0-9.00 | 3.0-4.0 | |
| 303 | 0.15 | 1.00 | 2.00 | 0.20 | ≥0.15 | 8.00-10.0 | 17.0-19.0 | ≤0.60 | |
| 304 | 0.07 | 1.00 | 2.00 | 0.035 | 0.03 | 8.00-10.0 | 18.0-20.0 | ||
| 304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | 1.0-3.0 | |
| 304M | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.0 | 18.0-20.0 | ||
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (12Ni) | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (10Ni) | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00-13.0 | 17.0-19.0 | Ti≤5*C% | |
| 2520 | 0.08 | 1.00 | 2.00 | 0.035 | 0.03 | 19.0-22.0 | 24.0-26.0 | ||
