Industry Commercial Application 100kw Hybrid off Grid Solar Energy System Solutions Three Phase UPS System

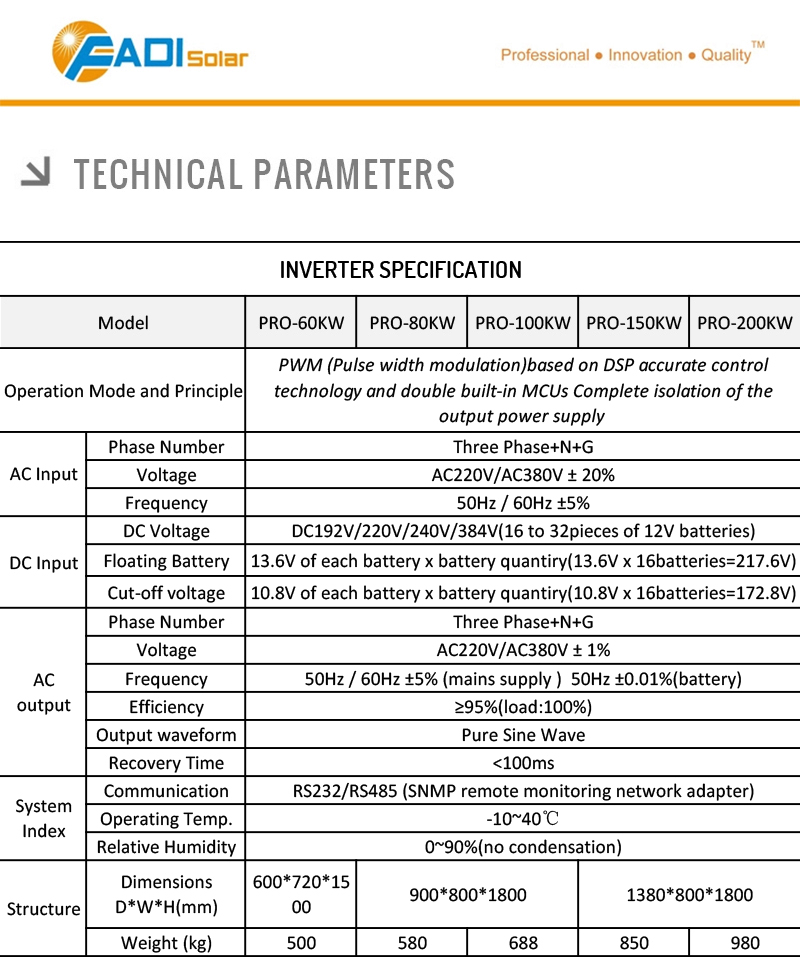

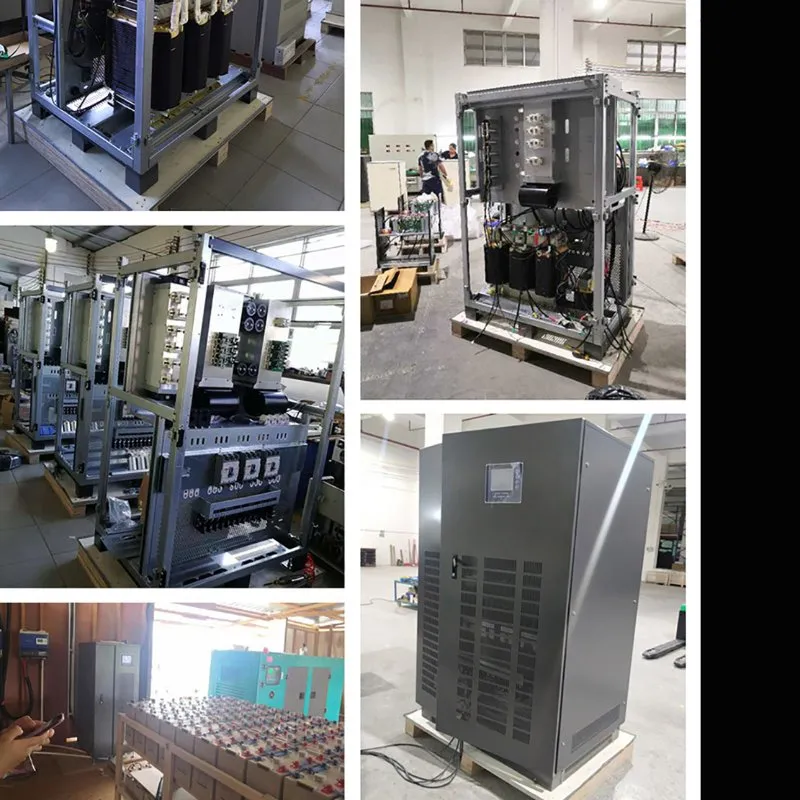

SOLAR INVERTER SPECIFICATION
Model		PRO-60KW	PRO-80KW	PRO-100KW	PRO-150KW	PRO-200KW
Operation Mode and Principle		PWM (Pulse width modulation)based on DSP accurate control technology and double built-in MCUs Complete isolation of the output power supply
AC Input	Phase Number	Three Phase+N+G
	Voltage	AC220V/AC380V ± 20%
	Frequency	50Hz / 60Hz ±5%
DC Input	DC Voltage	DC192V/220V/240V/384V(16 to 32pieces of 12V batteries)
	Floating Battery	13.6V of each battery x battery quantiry(13.6V x 16batteries=217.6V)
	Cut-off voltage	10.8V of each battery x battery quantiry(10.8V x 16batteries=172.8V)
AC output	Phase Number	Three Phase+N+G
	Voltage	AC220V/AC380V ± 1%
	Frequency	50Hz / 60Hz ±5% (mains supply ) 50Hz ±0.01%(battery)
	Efficiency	≥95%(load:100%)
	Output waveform	Pure Sine Wave
	Recovery Time	<100ms
System Index	Communication	RS232/RS485 (SNMP remote monitoring network adapter)
	Operating Temp.	-10~40ºC
	Relative Humidity	0~90%(no condensation)
Structure	Dimensions DWH(mm)	6007201500	9008001800		13808001800
	Weight (kg)	500	580	688	850	980

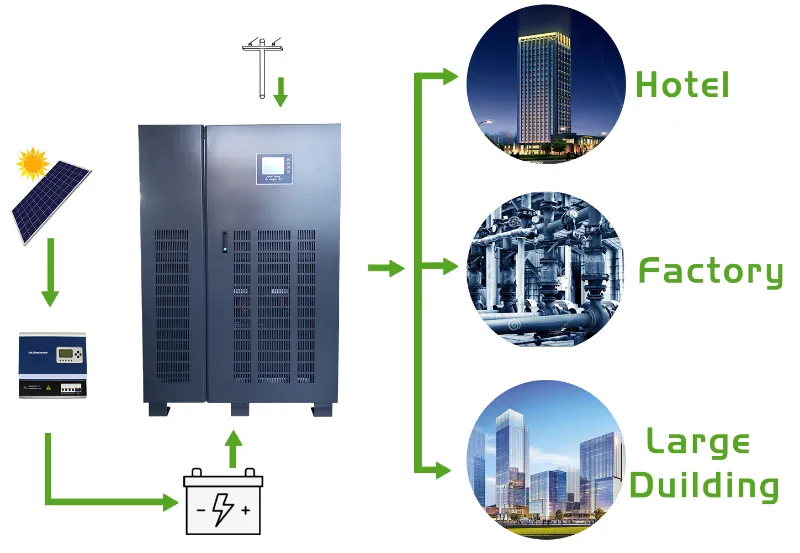

* Product can provide reliable power supply protection for large data centers, network computer rooms as well as the electric power link of fields such as manufacturing, traffic and energy to meet the high reliability requirement of users for large-power inverters
* Based built-in MCUs, the product can output stable and pure sine waves and provide safe and reliable power supply protection for user

Feature
* advanced operation mode
* Frequency tracking, phase-locking voltage stabilization, noise filtering and prevention of impact by fluctuation of the power grid realized in output of the inverter
* Efficient IGBT (insulated gate bipolar transistor) inversion technology good high-speed switching feature, large-voltage and large-current operating characteristics and voltage drive of IGBT
* High adaptability a wide range of input frequency (45Hz-65Hz), which realizes stable operation of fuel generators
* Greater loading capacity suitability for industrial applications such as machine tools and wire cutters
* Management function big LCD, visualized display of operation statuses through flow charts, intelligent icon touch buttons,tabular data, event records and more visualization of parameters of the inverter by means of communication with a computer via a RS232 /RS485 interface with help of intelligent monitoring software of the inverter
* Intelligent battery management intelligent battery charge
* Intelligent battery fault detection: measurement of single parameters, display of the measurement results on the LCD and immediate alarming and notification for the administrator upon any battery fault
* Personalized settings proper adjustment of the input parameters according to the input power supply conditions.

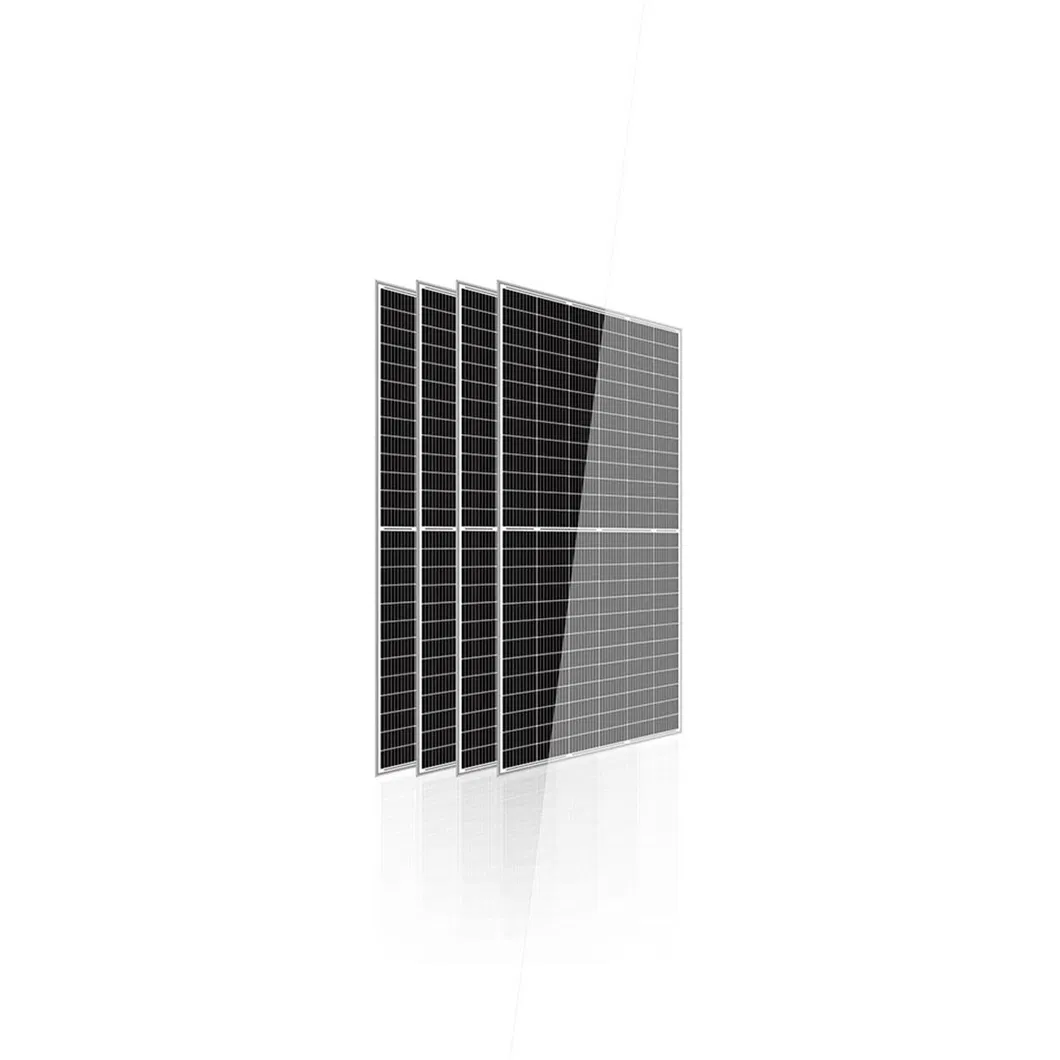

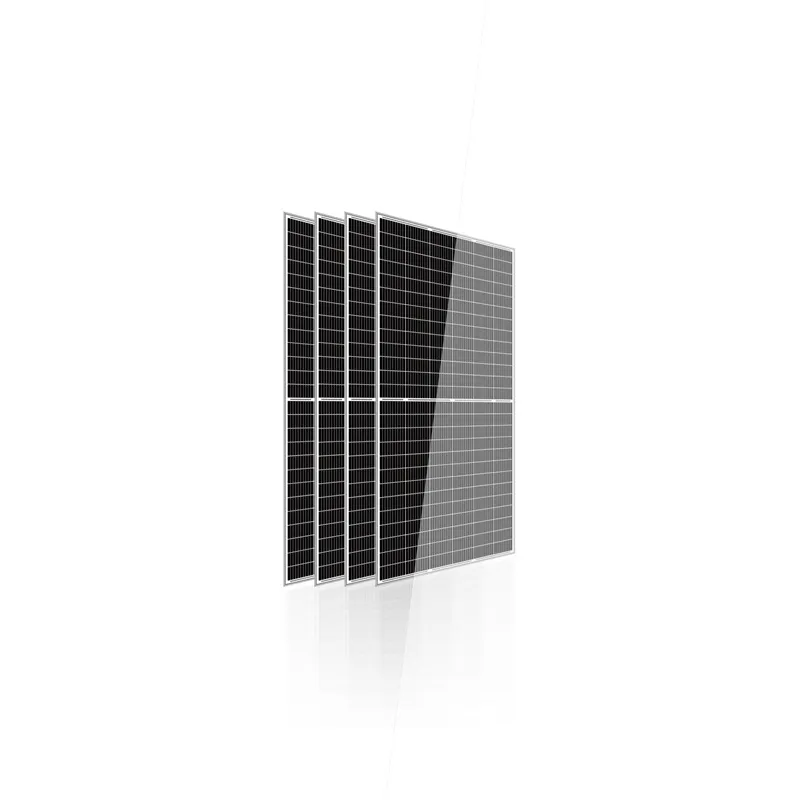

SOLAR MODULE
Model tpye: 455W
Peak power (Pmax):455W
Cell Effficiency:20.9%
Maximum power voltage(Vmp):33.3V
Maximum power current (Imp):8.75A
Open circuit voltage(Voc):46.4V
Short circuit current(Isc):9.43A
Power Tolerance:±3%
Maximum system voltage:1000V Dimensions:2094*1038*35MM Weight:23.5kg
Solar cells:144 cells in series (6*24)

*STC Irradiance 1000W/m2,AM1.5 spectrum,modeul temperature 25ºC

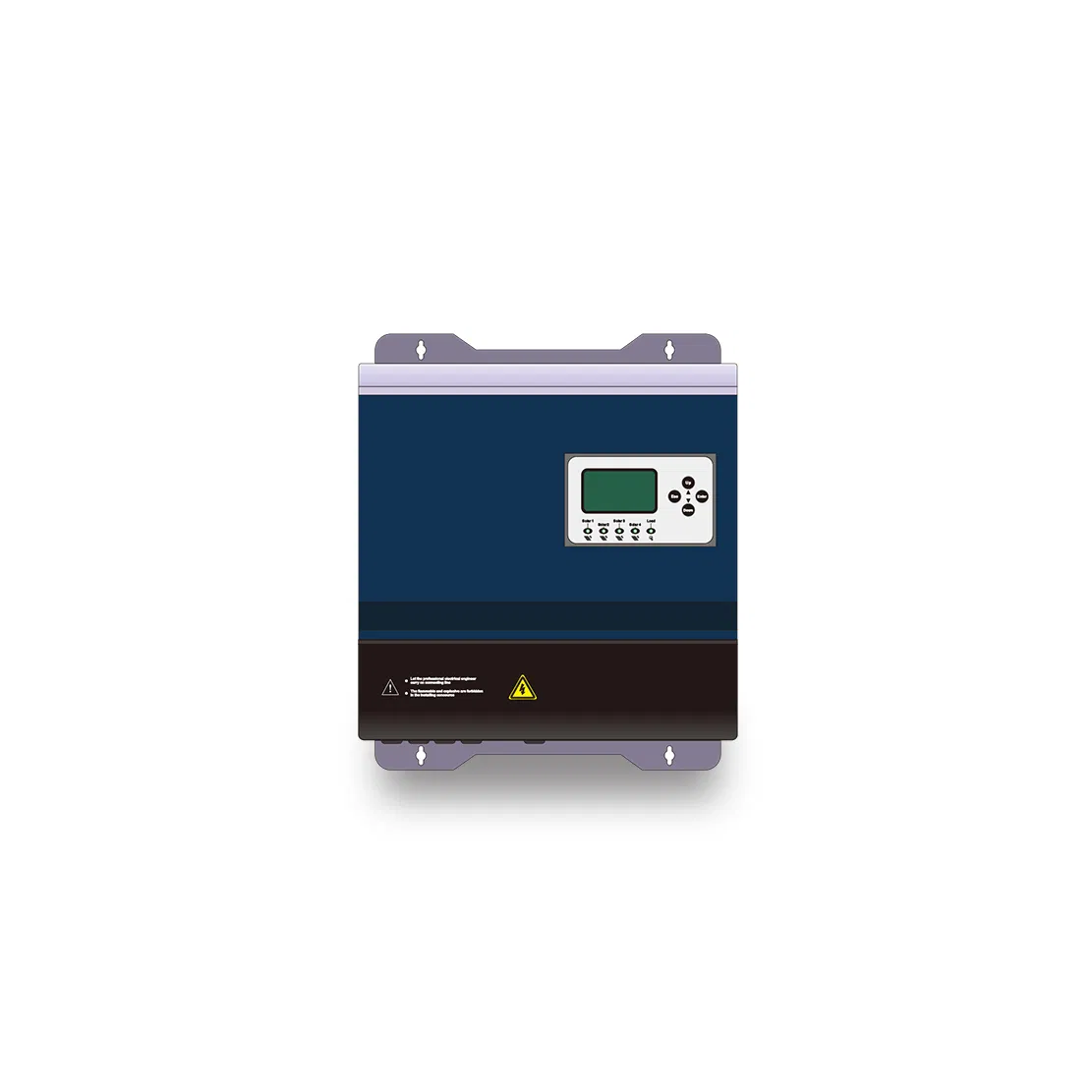

SOLAR CHARGE CONTROLLER
Model CP384VDC-100A PWM
Rated Voltage 384VDC
Rated charge current 100A
MAX PV power 38KWp
PV voltage rang 400v-800v Over charge ,low-voltage, and over-voltage protection, etc.

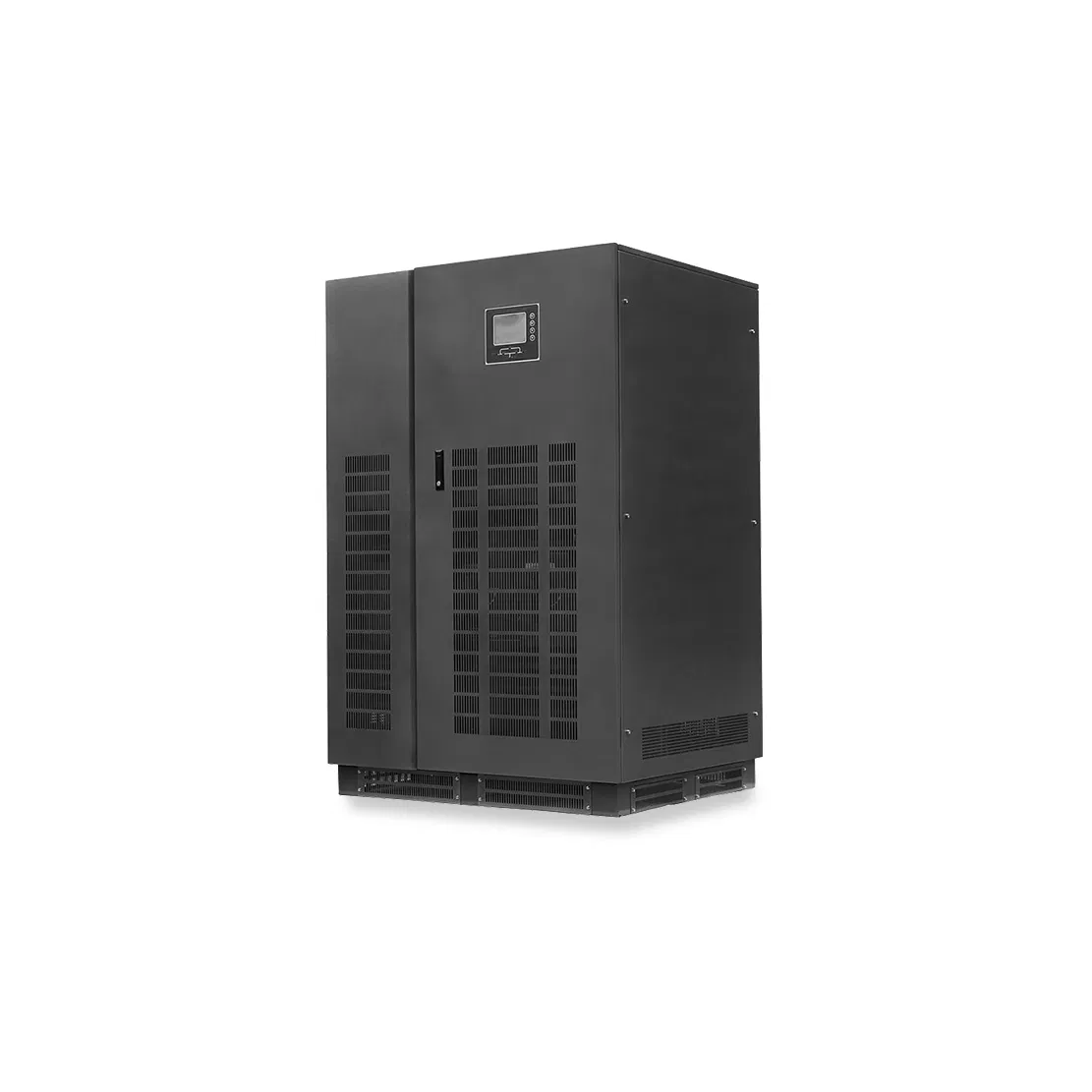

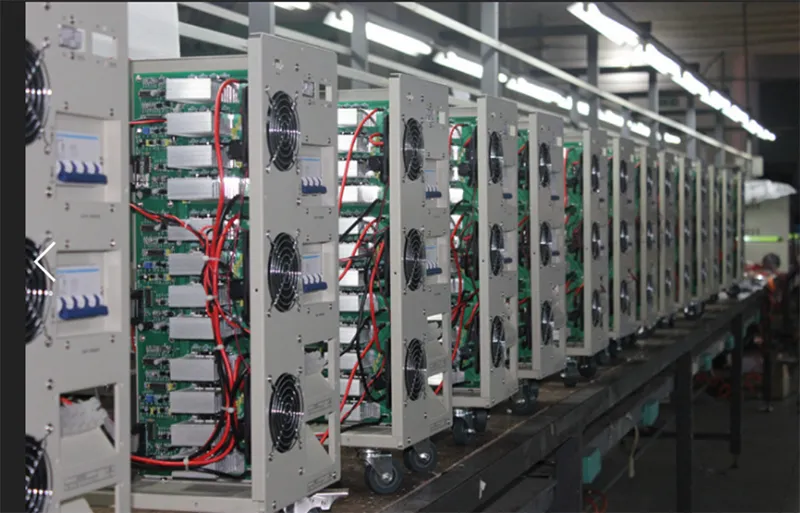

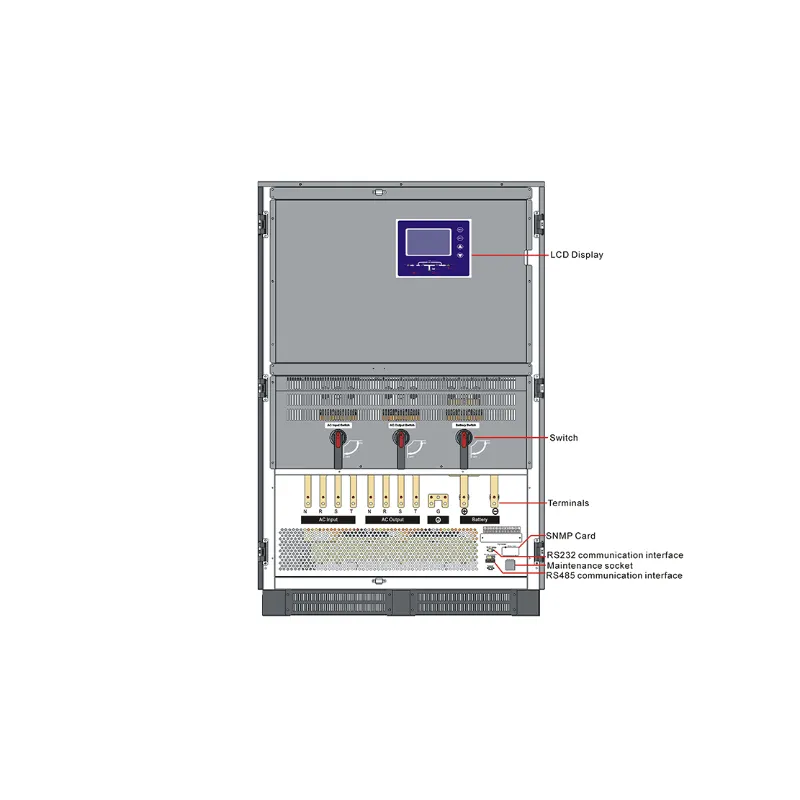

SOLAR INVERTER

100KW 3 phase
Rated capacity:100KW
DC input:384VDC
AC Output :380VAC 50HZ,
AC input :380VAC 50HZ , Size:1138*945*1725MM
Net weight:720kg

rotections: against short-circuit, overload, battery reverseoutput short-circuit , low-voltage, and over-voltage protection, etc.
Bypass function:system will use solar power priority, and then battery when battery run out , inverter will automatic switch to grid power for home use

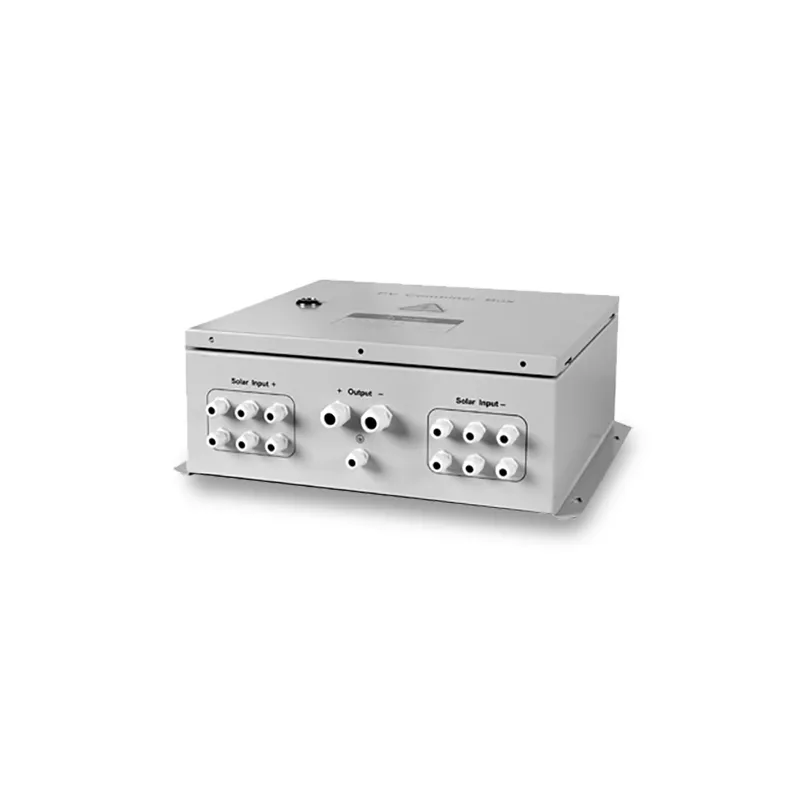

PV COMBINER BOX.
>With PV dedicated high voltage lightning protection device
>Waterproof terminals
>Lightning Protection,it can reduce solar cable

We provide:
12 years warranty for solar panels
1 year warranty for solar inverters, can extend to 2 year.
3 year for batteries.
others; 1 year.
Any items due to our quality problem will replace with brand new ones!

Over 12 years experience in sustainable energy business
24/7 Pre & After service team, ready to serve on valuable client
Professional * INNOVATION * QUALITY.
Delivery time guarantee!

Joint us, and be a distributor of FADI SOLAR!
