Hybrid Solar 10kw 20kw 30kw Solar Storage System
Mono PERC Half-Cut 166 Solar PanelsPeak Power Watts: 450WModule Efficiency(%): 20.4%Module Dimensions:2101 × 1038× 35mmJunction Box: IP 68 ratedSolar Cells: Mono PERC Half-cut 166×166mmFrame: Silver Anodized Aluminum AlloyWeight: 22.9KGWarranty:25 years0~+5W positive po......
Send Inquiry
Product Description

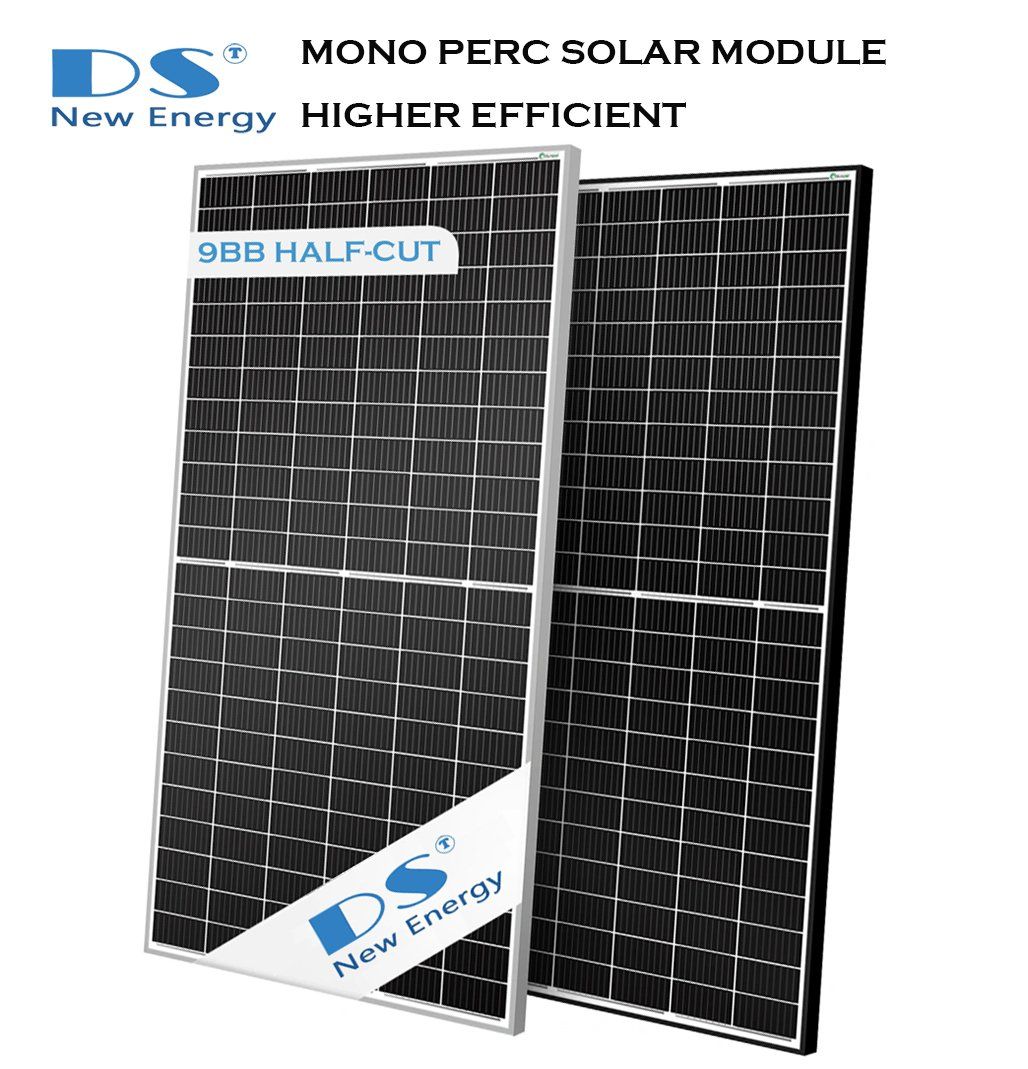

Mono PERC Half-Cut 166 Solar Panels
Peak Power Watts: 450W
Module Efficiency(%): 20.4%
Module Dimensions:2101 × 1038× 35mm
Junction Box: IP 68 rated
Solar Cells: Mono PERC Half-cut 166×166mm
Frame: Silver Anodized Aluminum Alloy
Weight: 22.9KG
Warranty:25 years
0~+5W positive power tolerance
PID Resistant, High salt and ammonia resistance
Withstands 5400Pa snow and 2400Pa wind loads
Compatible with 1000V and 1500V
Peak Power Watts: 450W
Module Efficiency(%): 20.4%
Module Dimensions:2101 × 1038× 35mm
Junction Box: IP 68 rated
Solar Cells: Mono PERC Half-cut 166×166mm
Frame: Silver Anodized Aluminum Alloy
Weight: 22.9KG
Warranty:25 years
0~+5W positive power tolerance
PID Resistant, High salt and ammonia resistance
Withstands 5400Pa snow and 2400Pa wind loads
Compatible with 1000V and 1500V

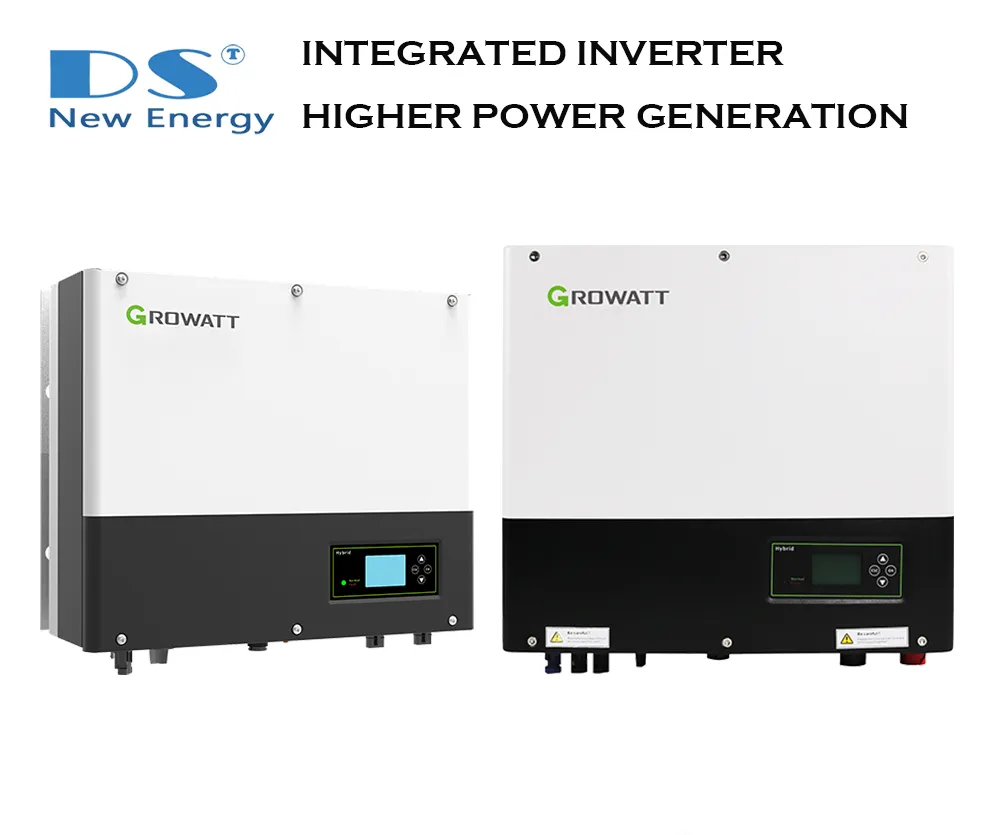

Hybrid Inverter with Built-in MPPT
Max. efficiency 98.1%
Super high frequency switching technology
Wide voltage range and low startup voltage
2 MPPT design with precise MPPT algorithm
Integrated Export Power Manager (EPM)
Compact and lightweight
Friendly and adaptable connection to the grid
Max. efficiency 98.1%
Super high frequency switching technology
Wide voltage range and low startup voltage
2 MPPT design with precise MPPT algorithm
Integrated Export Power Manager (EPM)
Compact and lightweight
Friendly and adaptable connection to the grid

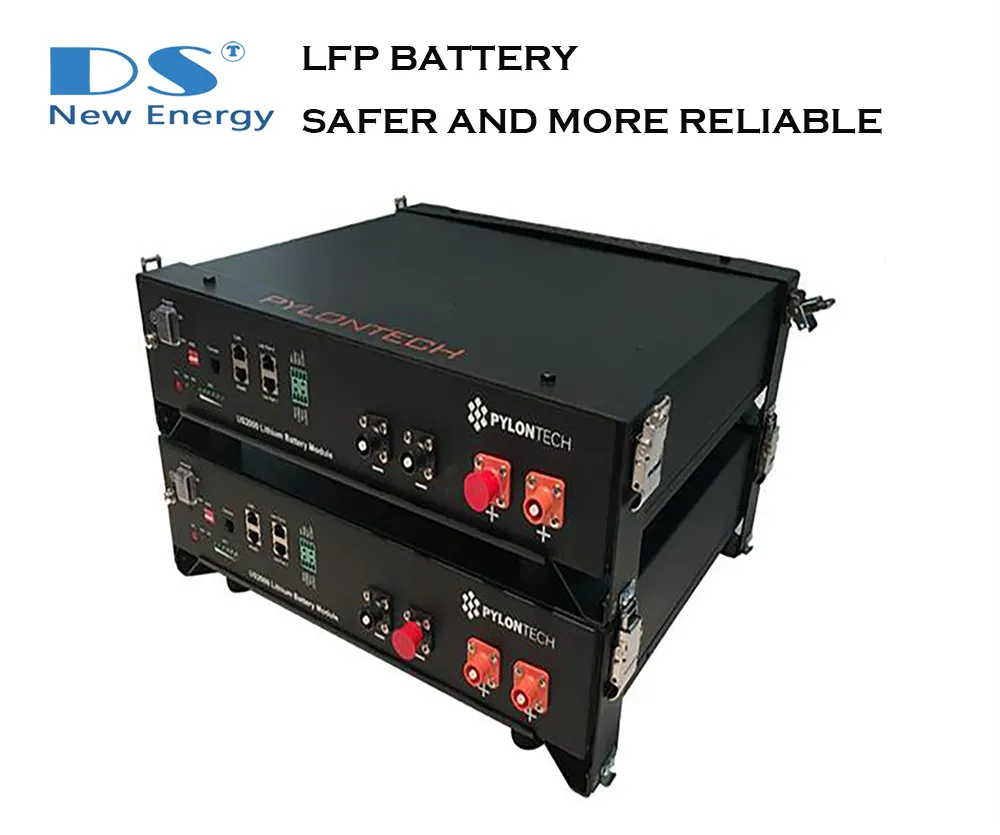

LFP (Lithium Iron Phosphate) Battery (GEL Battery optional)
Modular design with highest flexibility
LFP cell with longest lifespan and safety
Quick connecting to save installation time
Furniture like design suitable for indoor and outdoor
Proven BMS with widest compatibilities
Modular design with highest flexibility
LFP cell with longest lifespan and safety
Quick connecting to save installation time
Furniture like design suitable for indoor and outdoor
Proven BMS with widest compatibilities

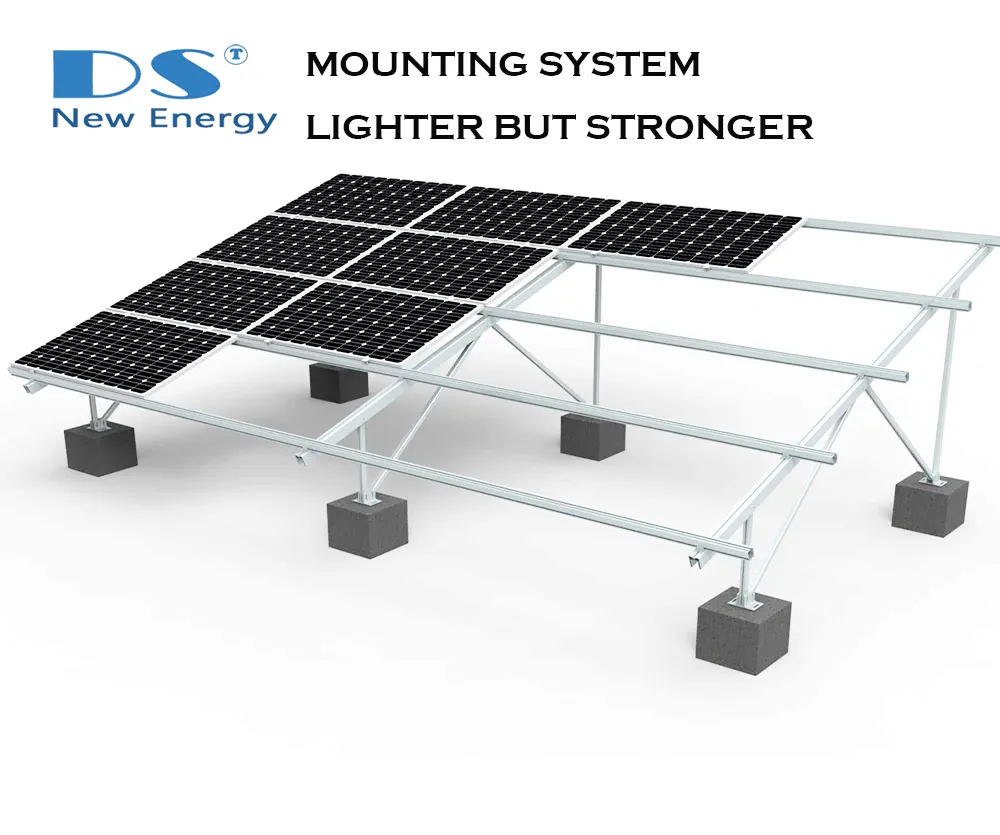

PV Mounting System
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof & Workshop roof)
Strictly mechanical tested wind & snow
Simple installation exercise with high efficiency
Anodized aluminum & stainless steel material with high durability.
Angel adjustable
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof & Workshop roof)
Strictly mechanical tested wind & snow
Simple installation exercise with high efficiency
Anodized aluminum & stainless steel material with high durability.
Angel adjustable

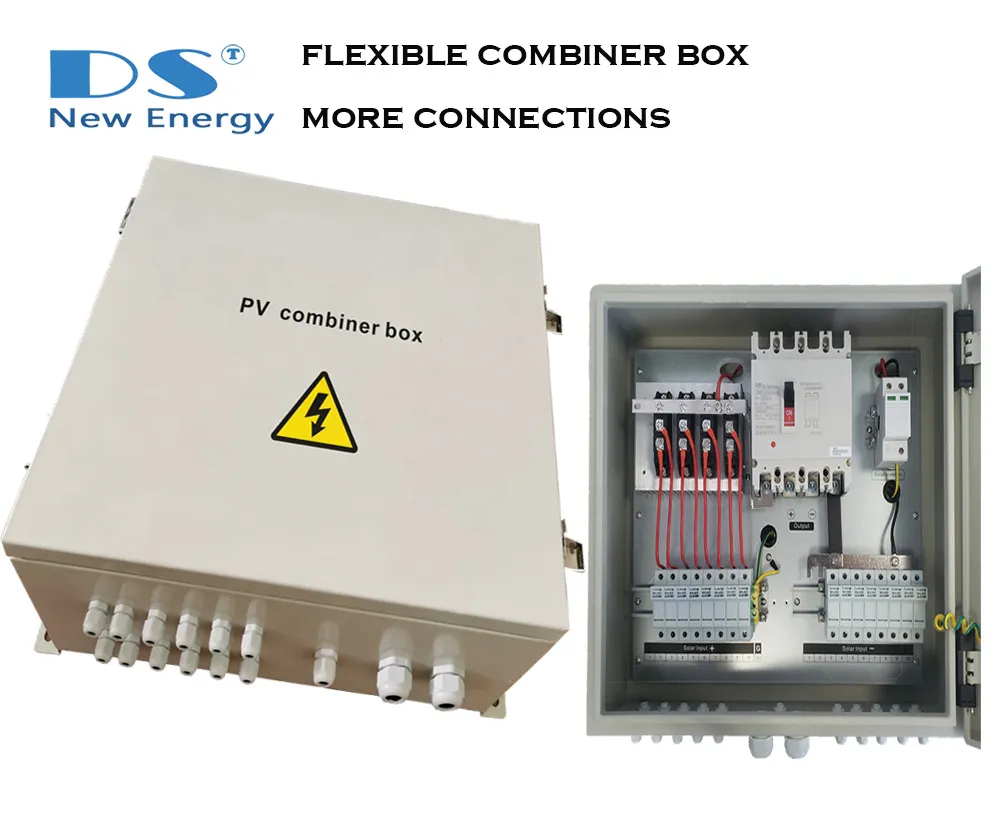

Integrated Combiner Box
IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Thunder-proof, waterproof
Iron steel material
IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Thunder-proof, waterproof
Iron steel material

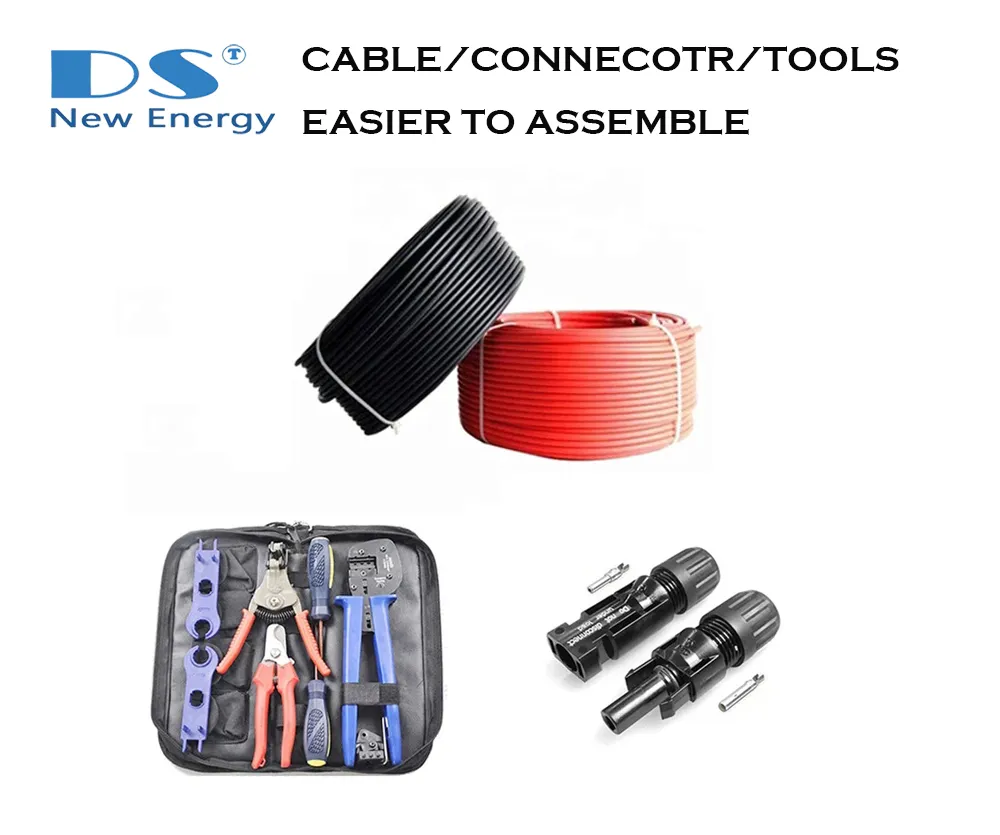

DC Cable & MC4 Connector & Tools
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black, Red Optional.
Lifetime: 25 Years
MC4 compatible connectors
PV swift installation tool bag
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black, Red Optional.
Lifetime: 25 Years
MC4 compatible connectors
PV swift installation tool bag
All-in-one includes
| Model Number | DSNEG-3K-HY | DSNEG-4K-HY | DSNEG-5K-HY | DSNEG-8K-HY | DSNEG-10K-HY |
| Solar Panel (mono or poly) | 6pcs | 8pcs | 12pcs | 18pcs | 22pcs |
| Hybrid Inverter | 3KW | 4KW | 5KW | 8KW | 10KW |
| LFP Battery with BMS | 3 pcs | 4pcs | 5pcs | 6pcs | 8pcs |
| Combiner Box | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
| DC Cable | 50 Meters | 50 Meters | 100 Meters | 100 Meters | 100 Meters |
| MC4 Compatible Connectors | 4 Pairs | 4 Pairs | 4 Pairs | 8 Pairs | 8 Pairs |
| Mounting System | Pitched Roof or Flat Roof or as customer requests | ||||
| System components might be various according to specific system setup. | |||||
