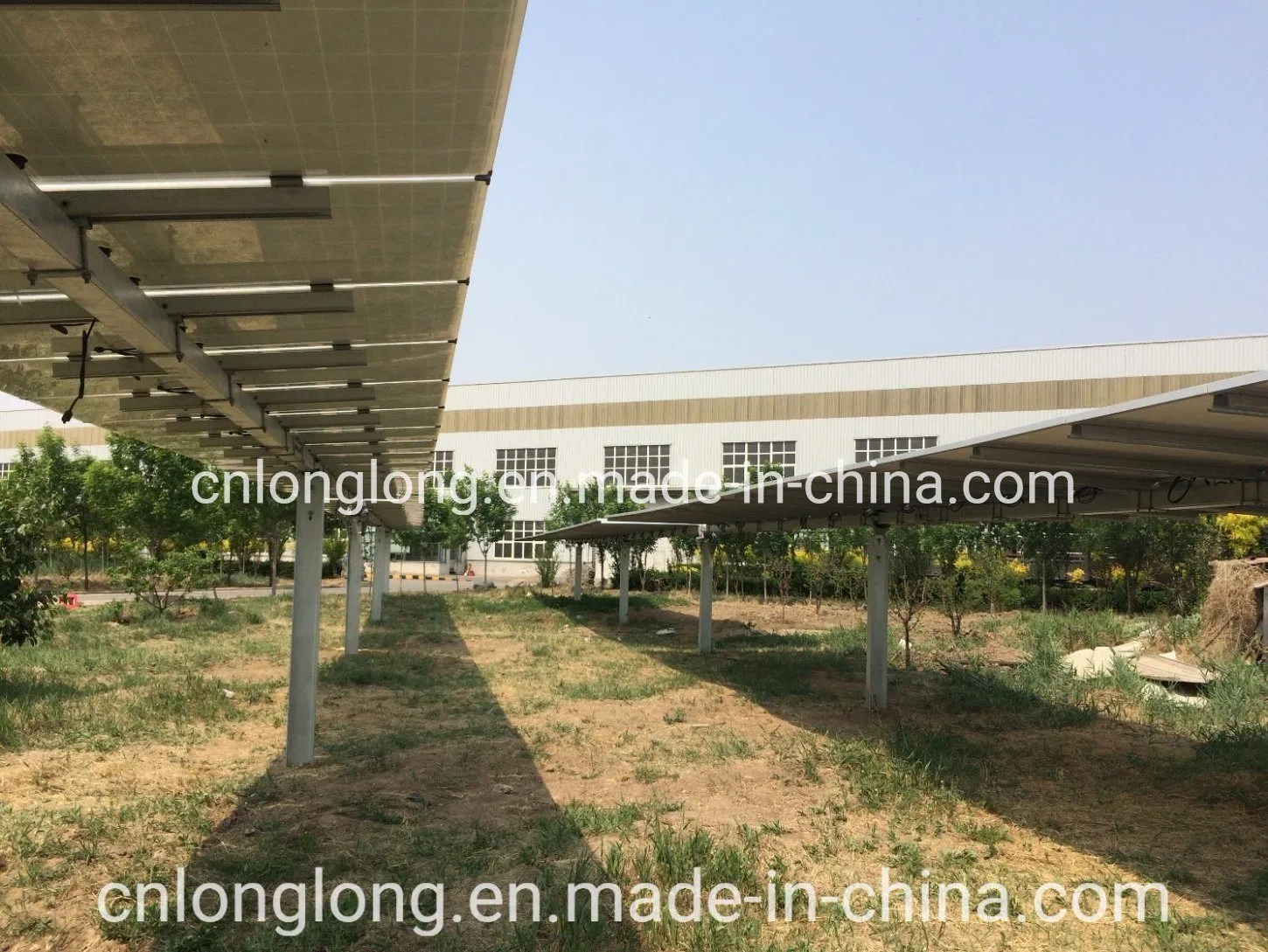

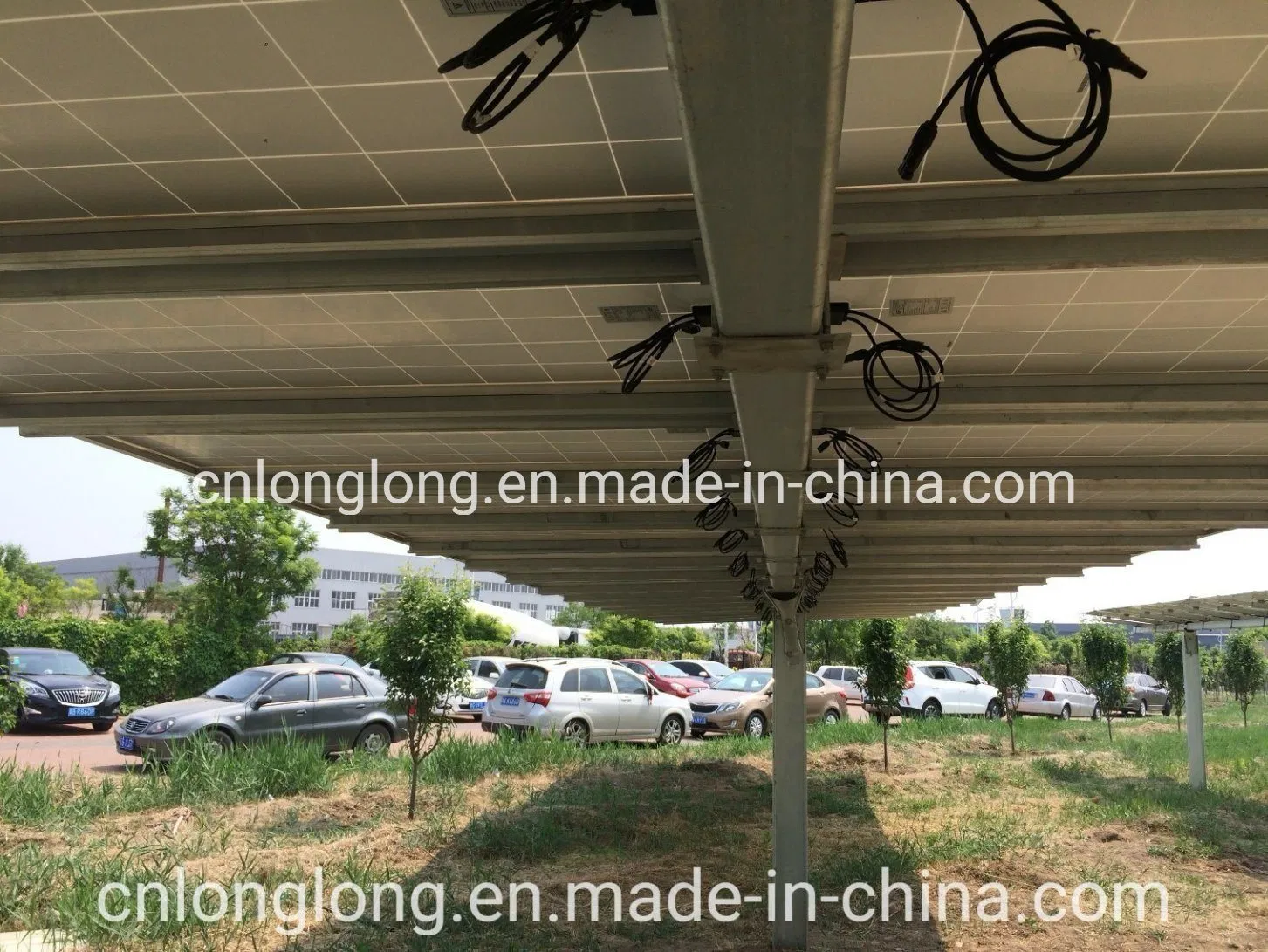

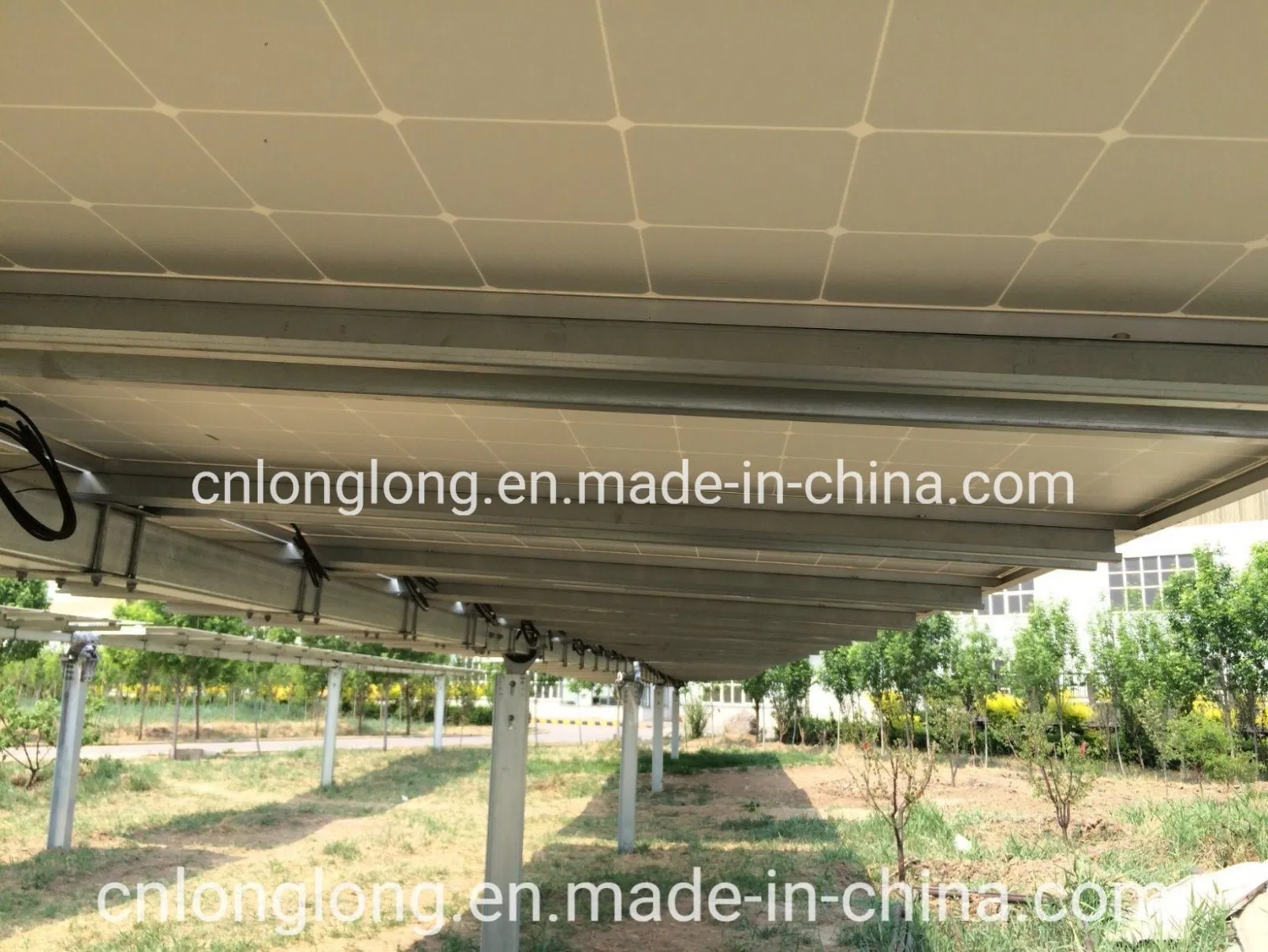

Hot Selling Low Price Single Axis Solar Tracker (single row)
Description TypeSingle-axis trackerDrive modeGear motor + SlewModule layoutSingle rowMain materialC4 anti-corrosion grade level(configurade)SupportStatic pressure pile or cement foundationCompatibilityConventional PV module and glass-glass moduleModule QTY36~60pcs panelPower22KWp~32KWpString QTY2~3 ......
Send Inquiry
Product Description
Description
| Type | Single-axis tracker |
| Drive mode | Gear motor + Slew |
| Module layout | Single row |
| Main material | C4 anti-corrosion grade level(configurade) |
| Support | Static pressure pile or cement foundation |
| Compatibility | Conventional PV module and glass-glass module |
| Module QTY | 36~60pcs panel |
| Power | 22KWp~32KWp |
| String QTY | 2~3 strings |
| Voltage level | 1000V, 1500V |
| Max wind speed | 144kw/h |
| Daily consumption | <0.08kwh |
| Controller power | 220VAC |
| Standard | UL2703, UL3703, IEC 62817, IEC 62305-3,IEC 60228,ASCE 7 |
| Tracking angle | ±45°~±60° |
| Algorithm | Astronomical algorithm |
| Tracking accuracy | ±0.1° |
| Back tracking | Configurable |
| Interface | Modbus, configurable |
| Protection | Wind stow, snow stow, lightning protection |
| Control way | One-in-Four,Zigbee network |
