Greensun Solar Home Inverter Growatt Inverter 5kw 6kw 7kw 8kw 10kw 15kw on Grid
Product Description On Grid InverterMax. DC Voltage up to 1000VHigh YieldHigh power density, offer lighter and easy installationReal Time Monitoring(Flexible communication connection, support RS485, WiFi, GPRS)Warranty:5 years/10 yearsProduct Parameters ModelMOD 10KTL3-XMOD 15KTL3-X MID 20KTL-XMID 2......
Send Inquiry
Product Description

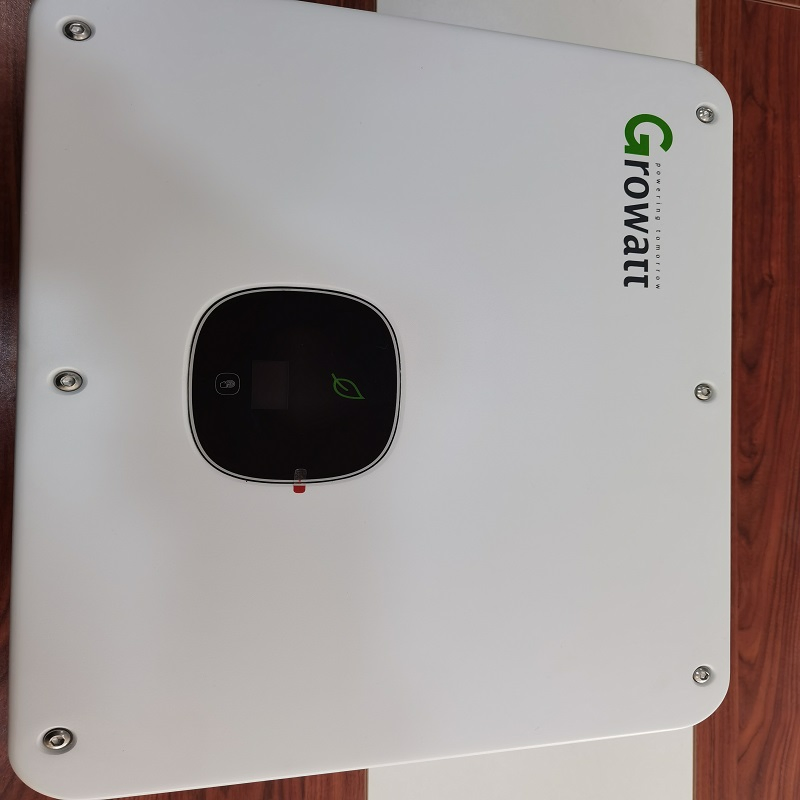

On Grid Inverter
♦Max. DC Voltage up to 1000V
♦High Yield
♦High power density, offer lighter and easy installation

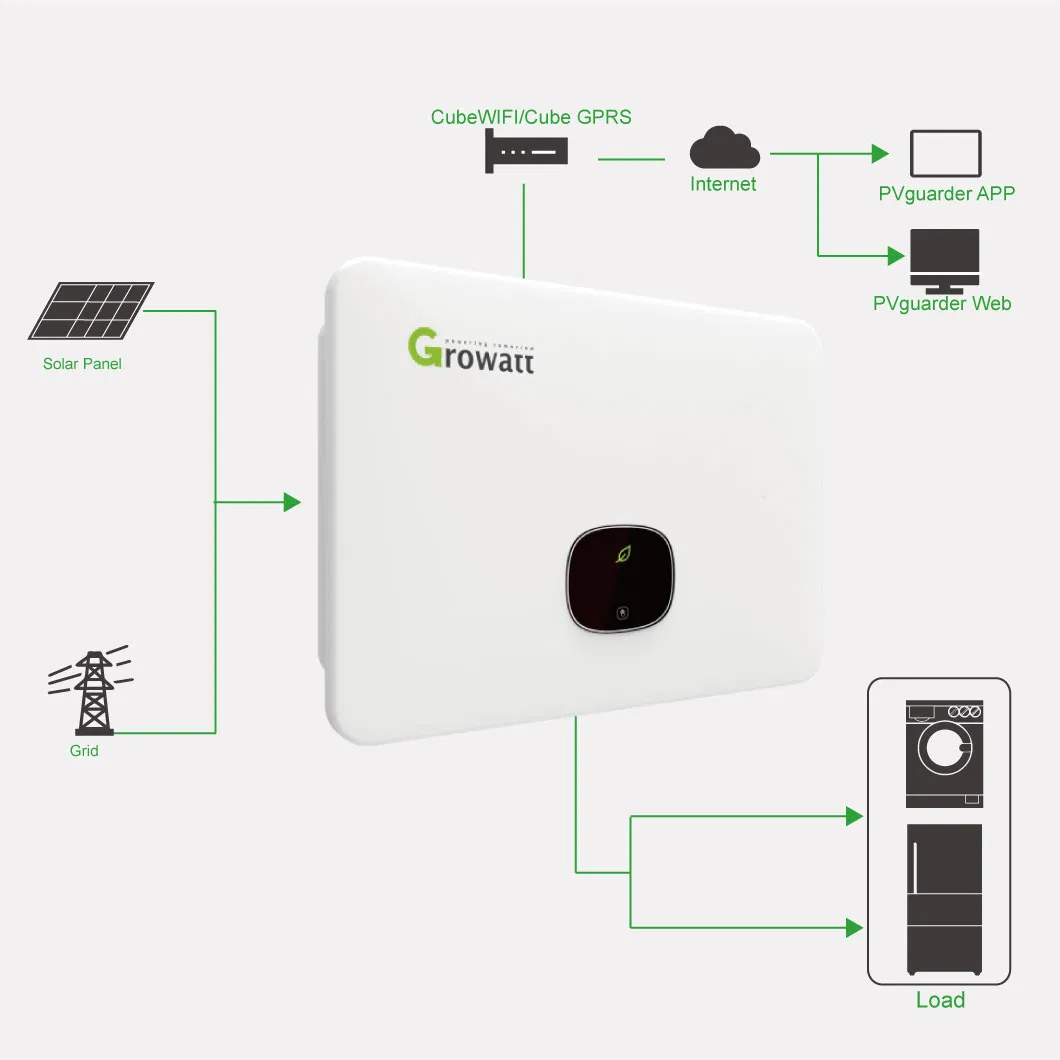

♦Real Time Monitoring(Flexible communication connection, support RS485, WiFi, GPRS)
♦Warranty:5 years/10 years
| Model | MOD 10KTL3-X | MOD 15KTL3-X | MID 20KTL-X | MID 25KTL-X |
| Input Data | ||||
| MAX Recommended PV Input Power | 15000W | 22500W | 30000W | 37500W |
| Max DC Voltage | 1100V | |||
| Start Voltage | 200V | 200V | 250V | 250V |
| Nominal Voltage | 580V | |||
| MPPT Voltage Range | 140-1000V | 140-1000V | 160-1000V | 160-1000V |

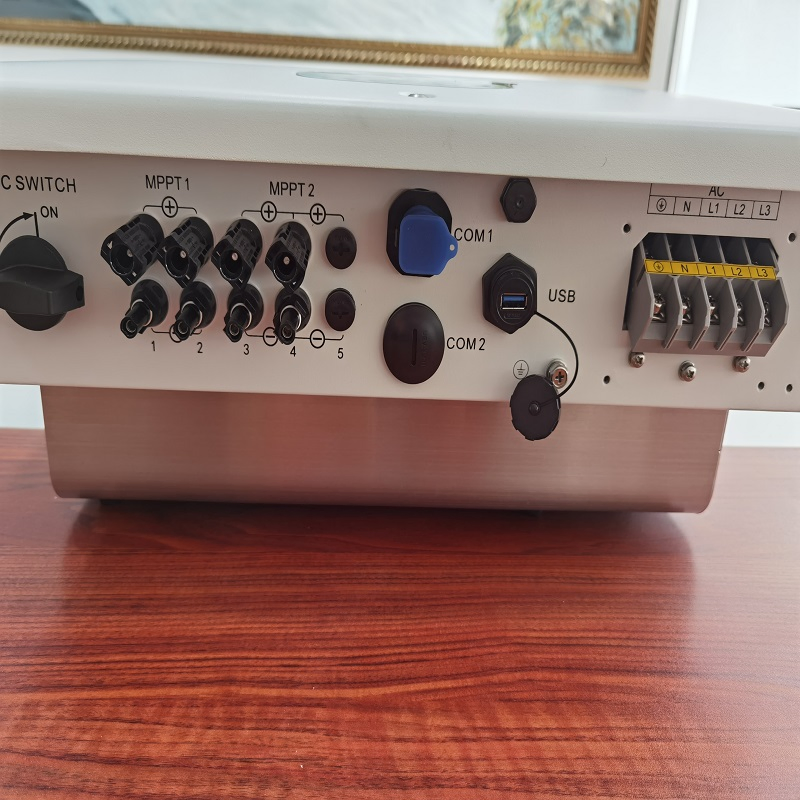

| NO. of MPPT Tracker | 2 | |||
| NO. of PV String per MPPT | 1 | 2/1 | 2 | 2 |
| Max Input Current per String | 16A | 32/16A | 25A | 25A |
| Output (AC) | ||||
| Rated AC output powe | 10000W | 15000W | 20000W | 25000W |
| Max. AC apparent power | 11000VA | 16500VA | 22000VA | 27700VA |
| Nominal AC voltage(range*) | 220V/380V, 230V/400V (340-440V) | |||
| AC grid frequency;(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||
| Max. output current | 16.7A | 25A | 31.9A | 40.2A |
| THDi | <3% | |||
| Efficiency | ||||
| Max.efficiency | 98.6% | 98.6% | 98.75% | 98.75% |
| European efficiency | 98.1% | 98.2% | 98.6% | 98.6% |
| MPPT efficiency | 99.9% | |||
| Protection devices | ||||
| DC reverse polarity protection | YES | |||
| DC Switch | YES | |||
| AC/DC surge protection | TypeII/Type II | |||
| Anti-islanding protection | YES | |||
| Ground fault monitoring | YES | |||
| General Data | ||||
| Size | 425/387/178mm | 425/387/178mm | 525/395/222mm | 525/395/222mm |
| Weight | 14kg | 16kg | 23kg | 23kg |
| Protection Grade | IP66 | IP66 | IP65 | IP65 |
| Operating temperature range | -25 °C ... +60 °C | |||
♦Greensun Solar Energy Tech. Co., Ltd is a professiona, fast growing company. The company is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, inverter, battery, controller, solar system and solar pump system.
♦Having professional engineering team, Greensun Solar provide best design and customization of solar system and solar pump system.

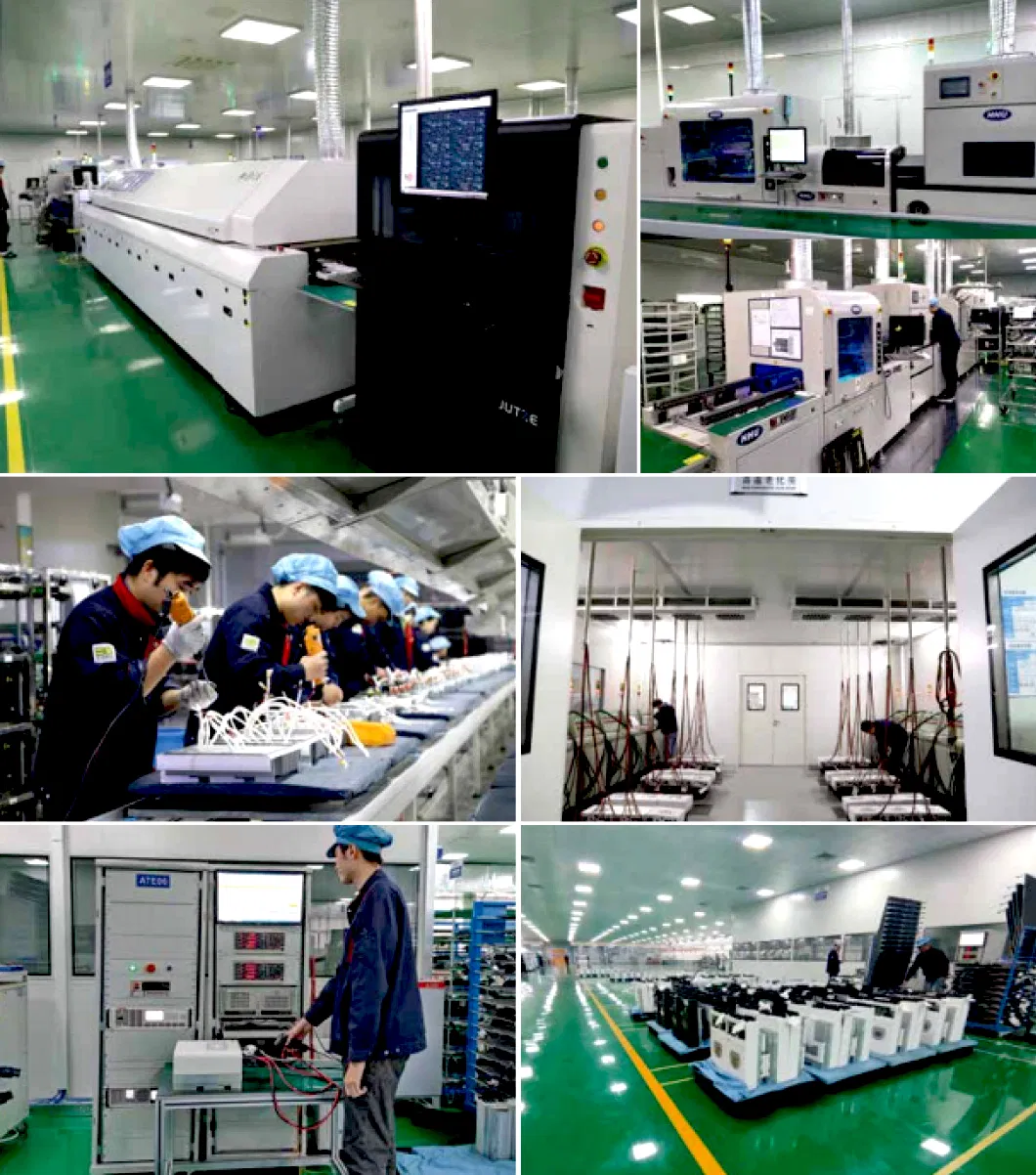

♦Greensun Solar was founded in 2003, headquartered in Hefei, Anhui China. Our factory covers 90,000 square meters area and has more than 1,000 employees.
♦Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
♦ We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system. We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.

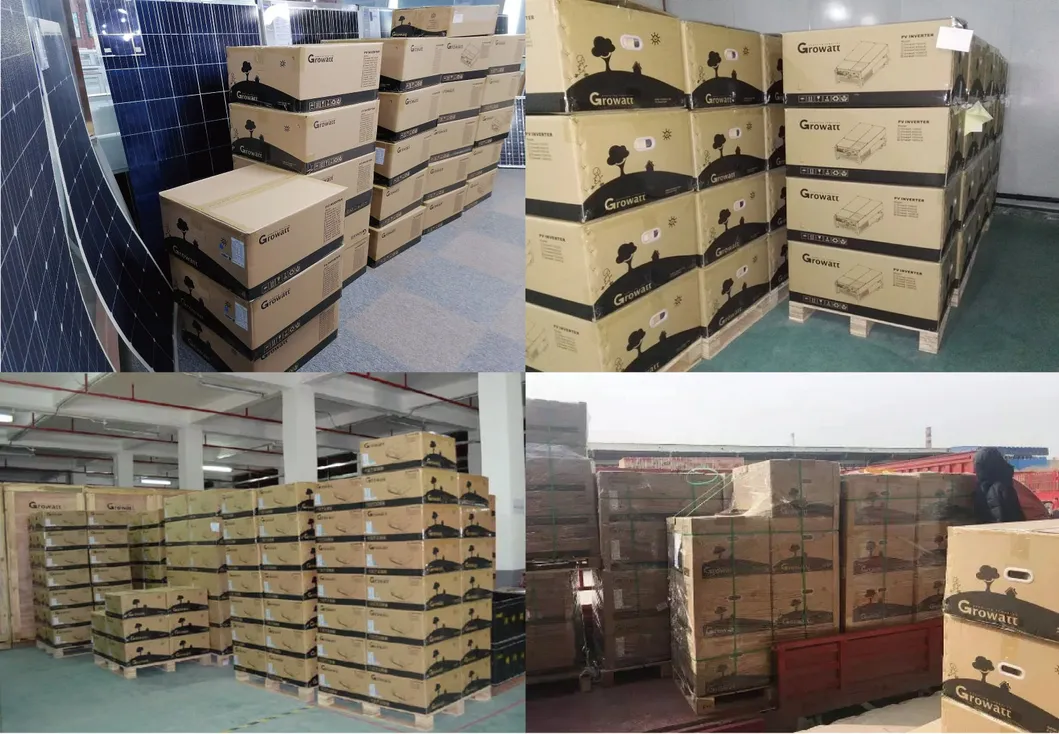

| Professional Packing: Carton, Wooden Pallet and Wooden Box. | |
| By Express | TNT, DHL, FedDex, UPS available |
| By Air | Shenzhen/Shanghai or other Designated Airport |
| By Sea | Shenzhen, Shanghai, Ningbo or other Designated Port in China |
♦We keep good quality and competitive price to ensure our customers benefit.
♦we have100%test before delivery.
♦We are looking forward to your visit.
