China Supplier Auto Solar Tracking System Horizontal Single Axis 1 Axis Solar Panel Tracker Mounting System
SpecificationTracking Structure ParametersTracking TechnologySingle- Horizontal flat single-axis tracking systemMaximum capacity per row≤48kWp (Estimated with 540W PV -Modules)PV-Modules quantity per row90 PCS (1Px90)Tracking range±45°to ±60°Tracking accu......
Send Inquiry
Product Description
Specification
What we can do?
Successful stories
Manufacture process
Certifications
Tracking Structure Parameters | ||||
Tracking Technology | Single- Horizontal flat single-axis tracking system | Maximum capacity per row | ≤48kWp (Estimated with 540W PV -Modules) | |
PV-Modules quantity per row | 90 PCS (1Px90) | Tracking range | ±45°to ±60° | |
Tracking accuracy | ±1° | Terrain Adaptability | 10°north-south, east -west unlimited | |
Protection of wind speed | 18m/s | Foundation form | Concrete (customizable all steel foundation) | |
Tracking Controller Parameters | ||||
Control system | MCU | Communication type | RS485 or wireless Zigbee | |
Night stow mode | Have | Backtracking algorithm | Have | |
Overload prevention | Have | Self trouble checking Function | Have | |
System voltage | DC24 | Drive System | Slewing drive | |
Power Acquisition Mode | External Supply/Self-Powered supply | Control algorithm | Astronomical algorithm + closed loop(AI Control) | |

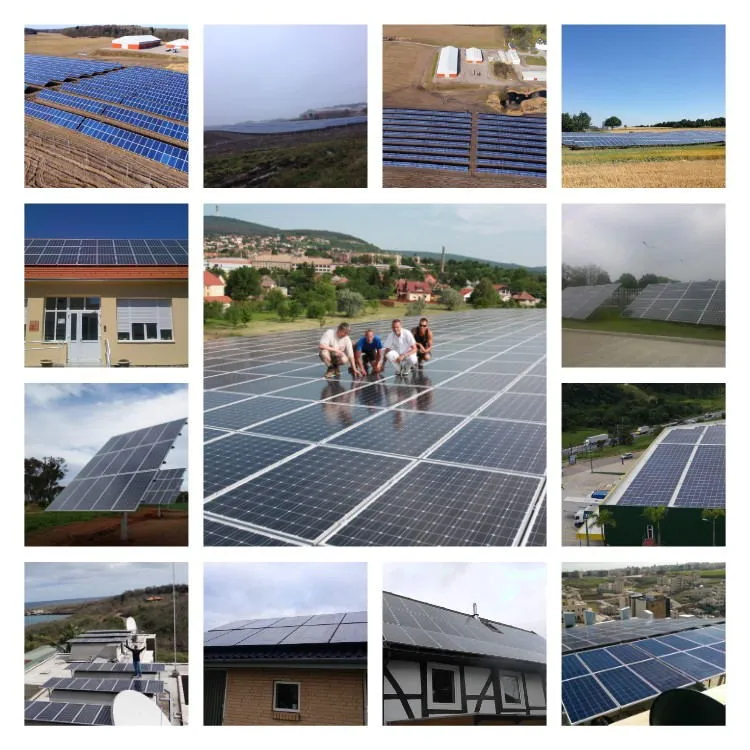

Successful stories

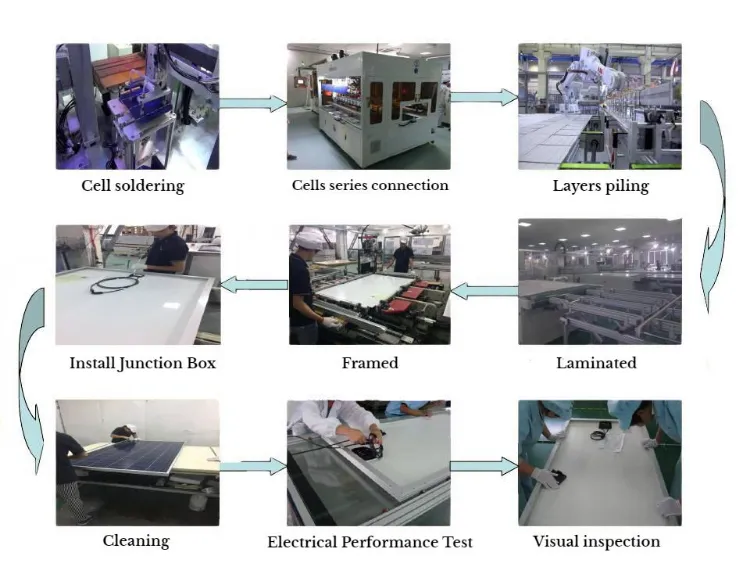

Manufacture processCertifications
