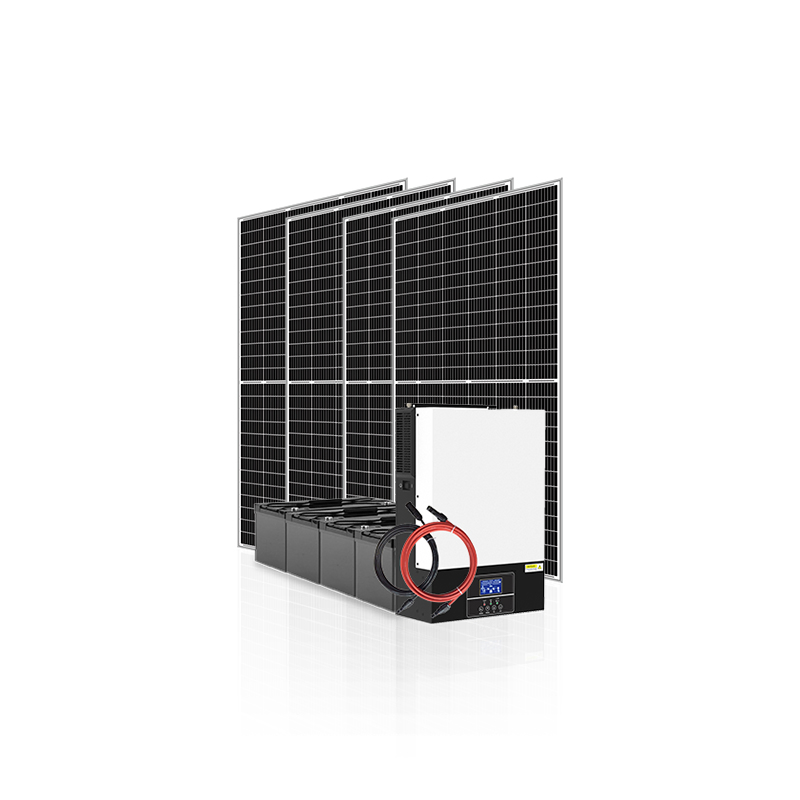

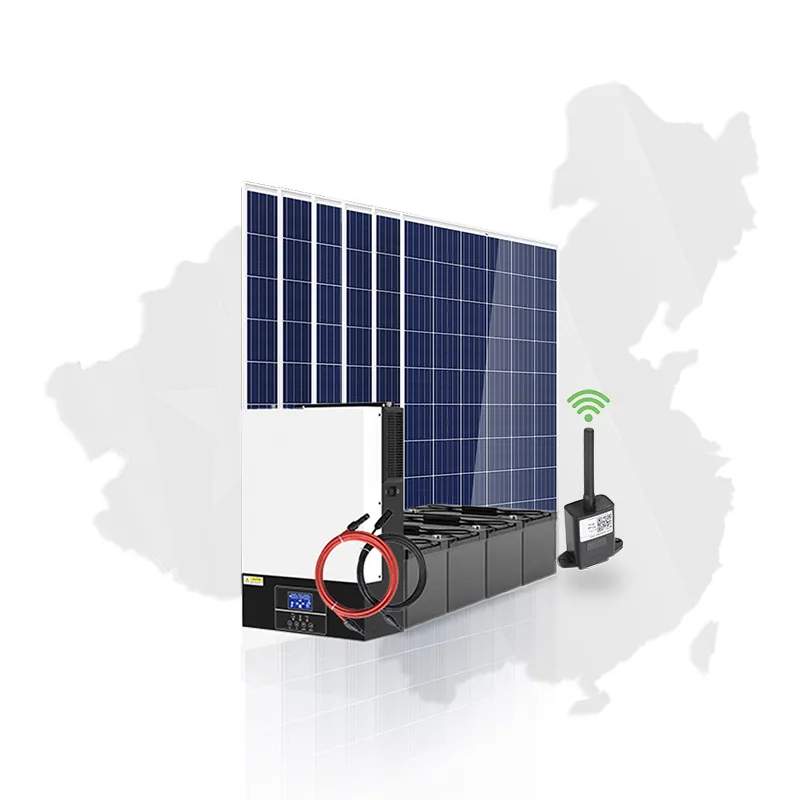

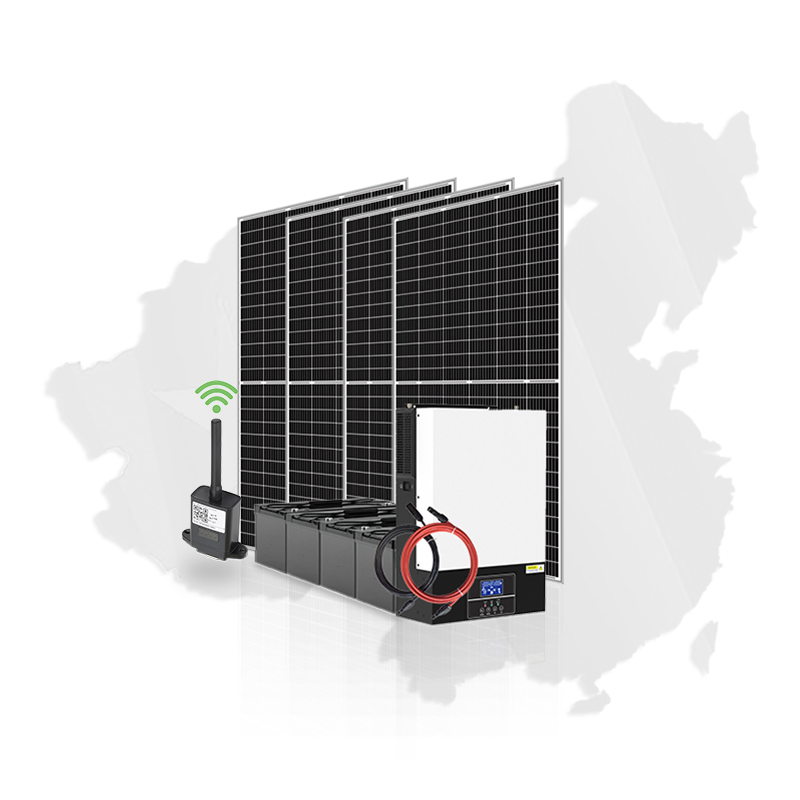

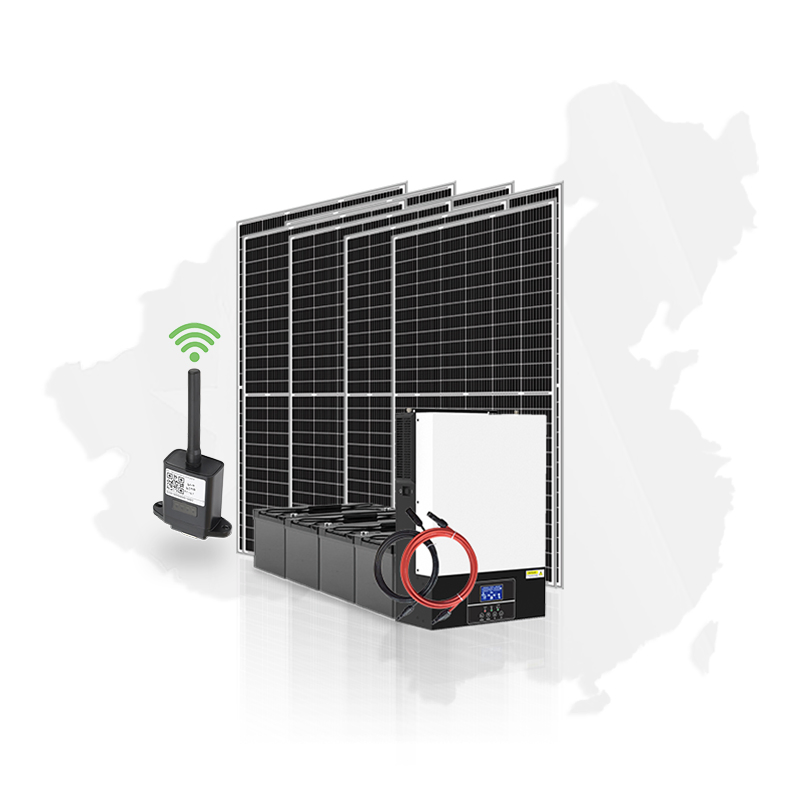

China off Grid Solar Power System for Home 5500W Solar Kit with Removable LCD Controller Panel WiFi MPPT Parallel Function

Product Description

N/N	GOODS DESCRIPTION	QUANTITY
1	SOLAR ENERGY SYSTEM / HYBRID OFF GRID MPPT WITH WIFI
2	3.5KW SOLAR SYSTEM
3	Bring us: 14~18~16KWH per day.
4	450W 9 BB LINE MONO (HALF CUT)	8
5	3.5KW-230VAC-24VDC 100A -MPPT 24V100A - REMOVE LCD / RS232 / GPRS / WIFI (optional)	1
6	WIFI MODULE	1
7	48V/50AH LITHIUM ION BATTERY	1
8	Panel Rack FOR ABOVE ALL SOLAR PANELS	1
9	5.5KW SOLAR SYSTEM
10	Bring us: 22~26KWH per day.
11	450W 9 BB LINE MONO (HALF CUT)	12
12	5.5KW-230VAC-48VDC 80A -MPPT 48V80A-REMOVE LCD / RS232 / GPRS / WIFI (optional)	1
13	WIFI MODULE	1
14	48V/50AH LITHIUM ION BATTERY	2
15	Panel Rack FOR ABOVE ALL SOLAR PANELS	1
16	ACCESSORIES
17	Solar Cable 6MM2 (100M/ROLL)	2
18	BATTERY CABLE 16MM2 - 30CM LENGTH	8
19	BATTERY CABLE 25MM2 - 30CM LENGTH	16

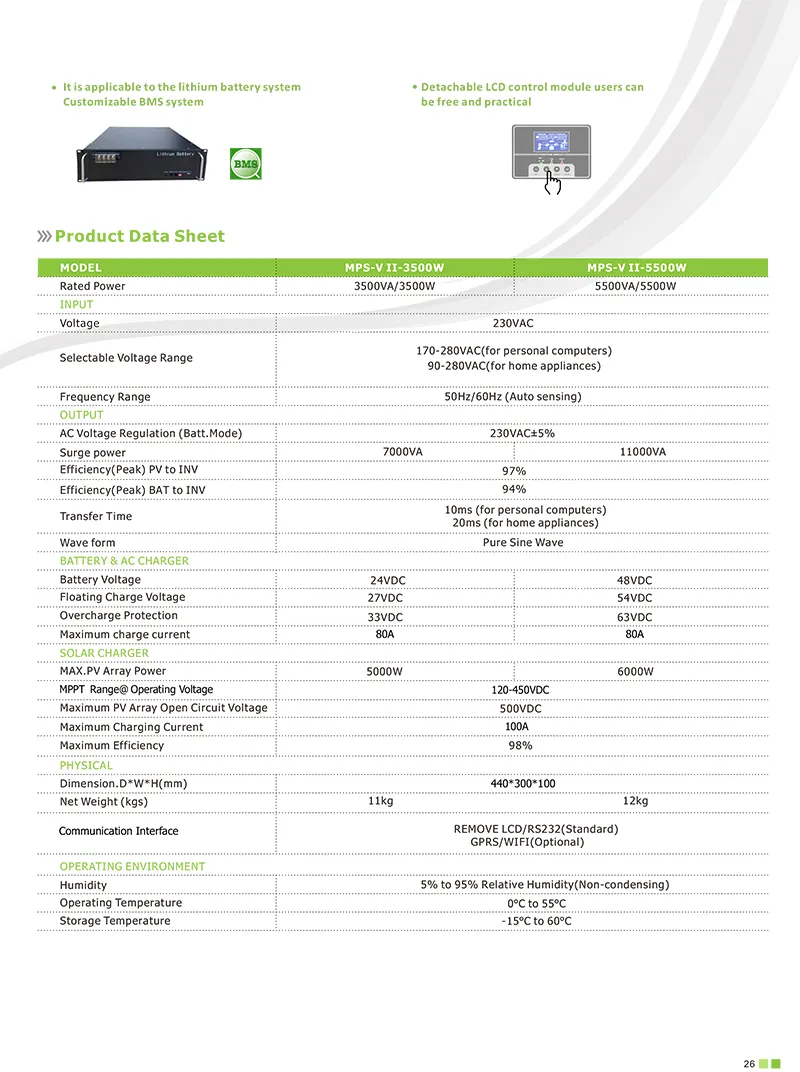

Model	FD-MPS-V2-3500	FD-MPS-V2-5500
Rated power	3500VA/3500W	5500VA/5500W
INPUT
voltage	230VAC
Select-able voltage range	170-280VAC(For Personal Computers);
	90-280Vac(For Home Appliances)
Frequency range	50Hz/60Hz(Auto Sensing)
OUTPUT
AC voltage regulation (Battery mode)	230VAC 5%
Surge power	7000VA	11000VA
Efficiency (peak)PV to INV.	97%
Efficiency (peak)Battery to INV.	94%
transfer time	10ms(For Personal Computers);
	20ms(For Home Appliances)
Wave form	Pure sine wave
Battery & AC charger
battery voltage	24VDC	48VDC
floating charge voltage	27VDC	54VDC
overcharge protection	33VDC	63VDC
maximum charge current	100A	80A
SOLAR CHARGER
Maximum PV Array power	5000W	5500W
MPPT range@ operating voltage	120~450VDC
maximum PV array open circuit voltage	500VDC
maximum charging current	100A	80A
maximum efficiency	98%
PHYSICAL
Dimension, DWH(mm)	100x300x400
Net weight (kg)	11	12
Communication interface	REMOVE LCD / RS232/ GPRS/ WIFI optional)
Environment
humidity	5% to 95% Relative Humidity(Non-condensing)
operating temperature	00C to 500C
storage temperature	-150C to 600C

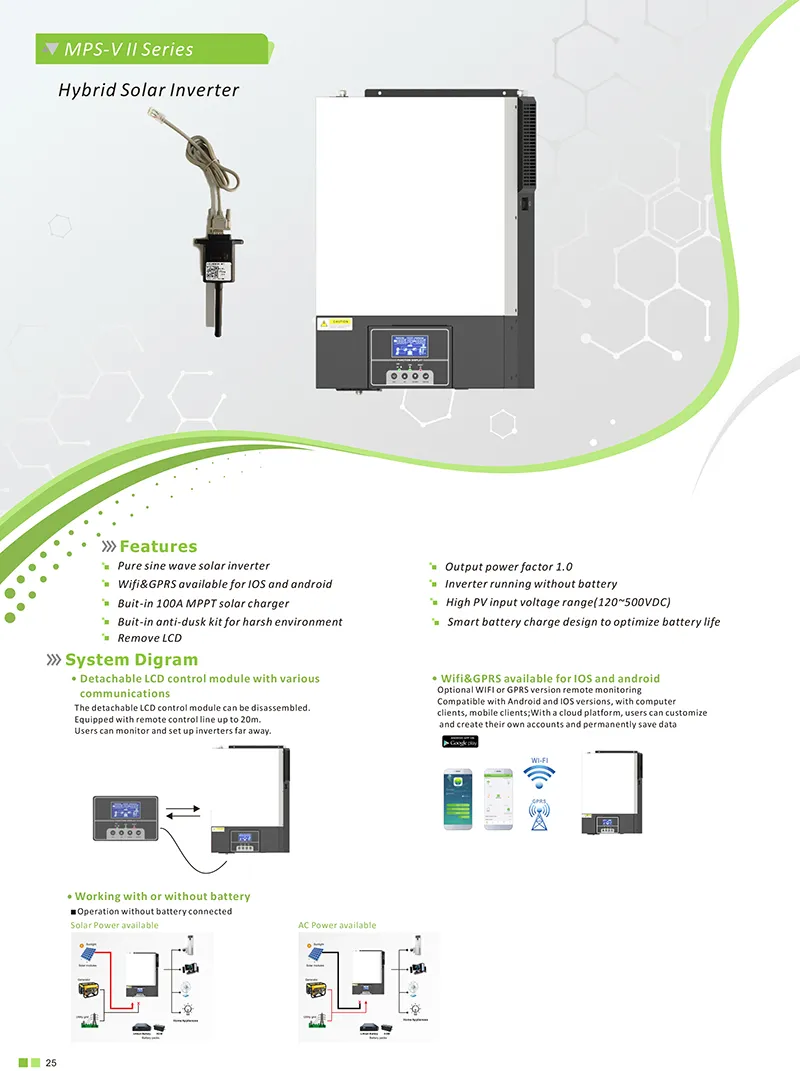

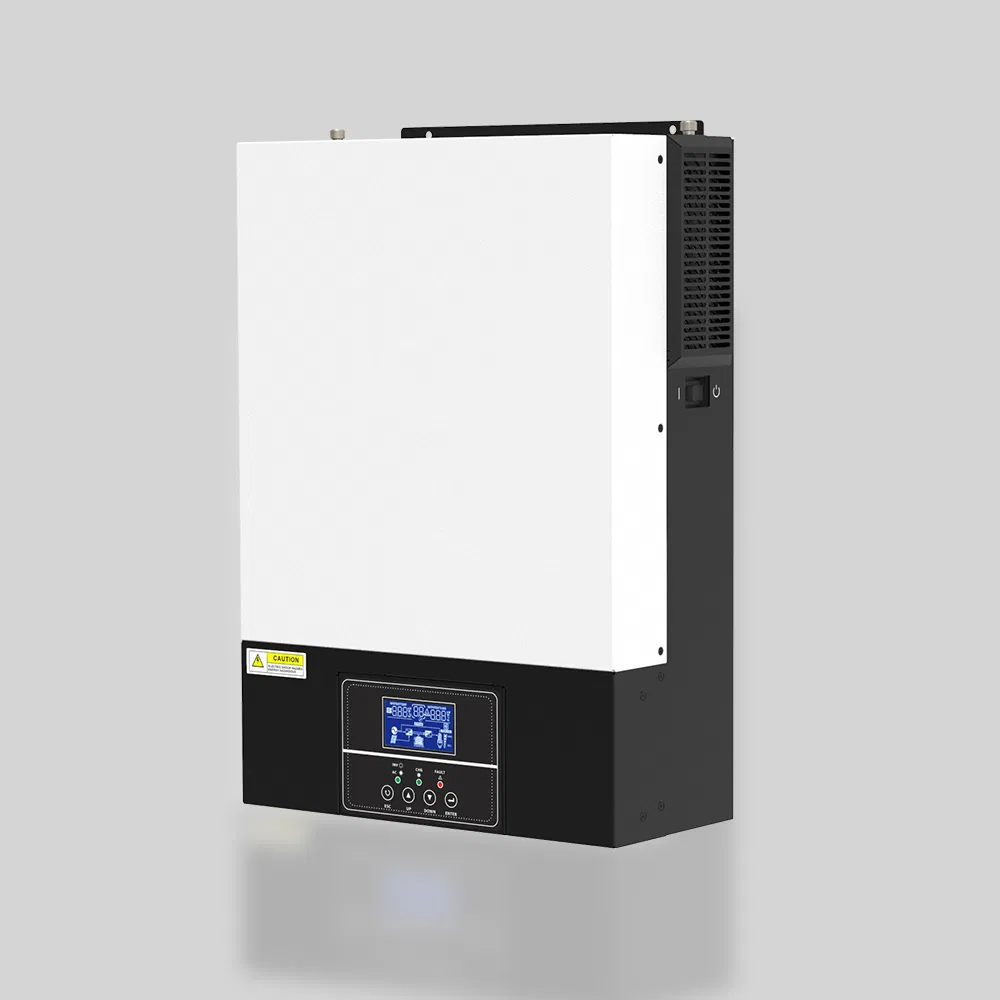

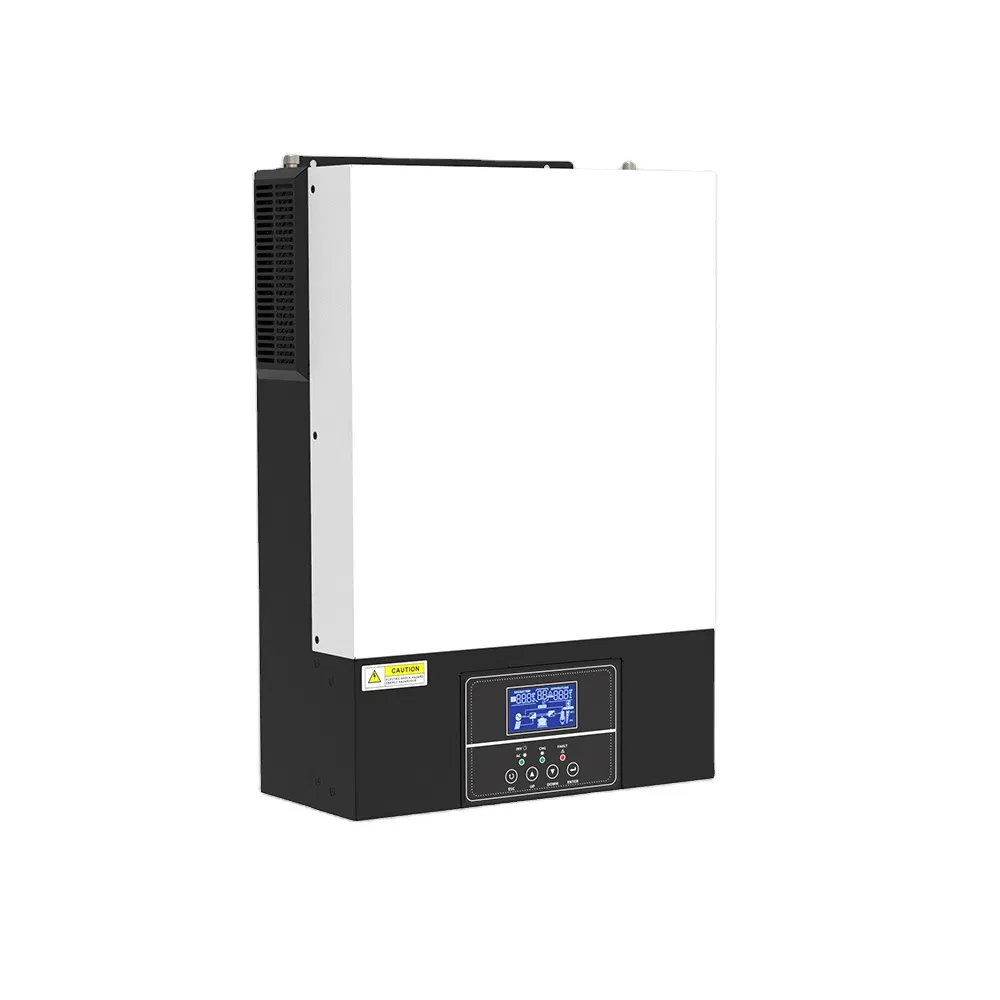

OUR INVERTERS KEY FEATURES:

1. Detachable LCD Controller Module
Users can be free and practical

------------------------------

2. Wifi&GPRS availa ble for IOS and Android

Optional WIFI or GPRS version remote mon itoring
Compatible with Android and IOS versions, with computer clients, mobile clients;
With a cloud platform, users can customizeand create their own accounts and permanently save data

----------------------------

3. Detacha ble LCD control m odule with various communications
The detachable LCD control module can be disassembled .
Equipped with remote control line up to 20m.
Users can monitor and set up inverters far away.

-----------------------------

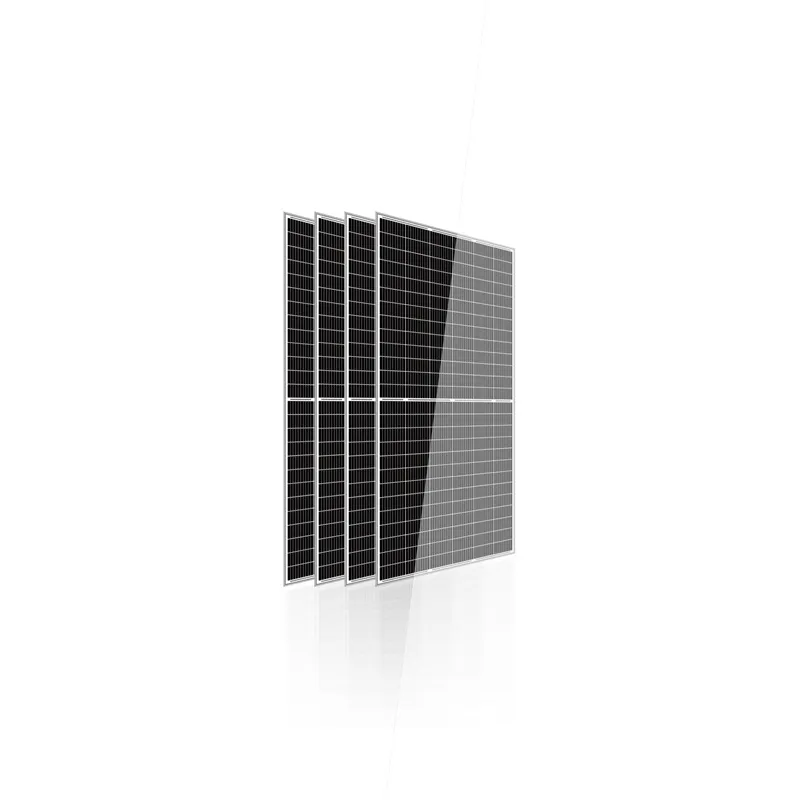

Solar Panels

• Optional Mono/Poly Blue/Black Panels
• High Efficiency with Half Cell PERC panels available
• 5BB/6BB/9BB PV cell Mono 158.75mm/166mm/182mm
• Anti-PID

Solar Battery

• 2v/12V/24V/48V Battery Optional
• Lead Acid Deep Cycle Battery
• Lithium ion LifePO4 Module or Powerwall Optional
• Fast installation and convenient design

Mouting Brackets

• Tile or color steel roof tile/ground installation
• Customized design with CAD auto drawing
• Complete set of Rail, Splice, Mid & End clamps, L feet, Hanger Bolt, earth clamp etc

DC Cable & MC4 Connector

• Cross Section: 4mm2, 6mm2, 10mm2 16mm2, 25mm2 Optional Rated
• Voltage:1000VDC
• Colors: Black For STD, Red Optional.
• Lifetime:more than 25 Years

Installation Tool Box

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

We provice:
12 years warranty for solar panels
1 year warranty for solar inverters, can extend to 2 year.
3 year for batteries.
others; 1 year.
Any items due to our quality problem will replace with brand new ones!

Over 12 years experience in sustainable energy business
24/7 Pre & After service team, ready to serve on valuable client
Professional * INNOVATION * QUALITY.
Delivery time guarantee!

Joint us, and be a distributor of FADI SOLAR!
