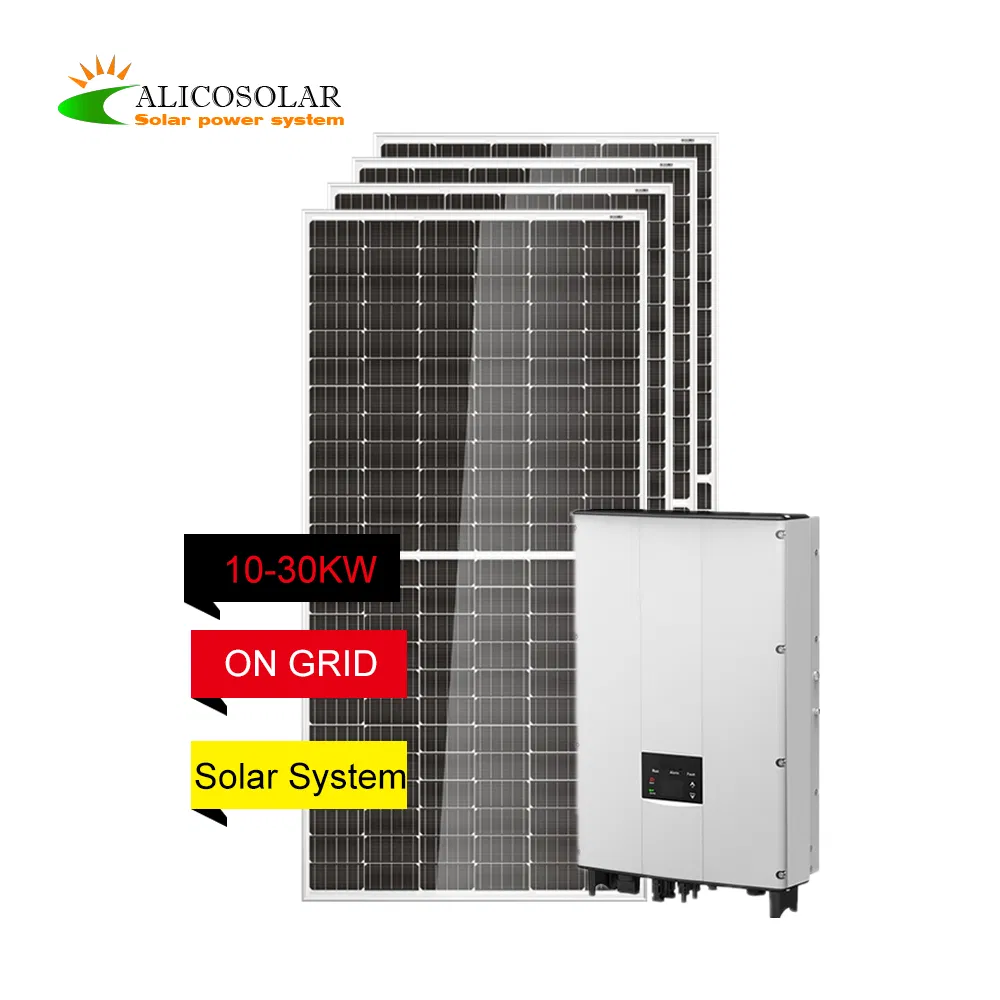

2868 10kw 12kw on Grid Solar System

Product Description

Name	12KW On-grid Description	Quantity
Solar Panel	Mono/Poly 290W 60 Cells PV Module	45 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On-Grid Inverter	12KW Single Phase	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 Meters
MC4 Connector	4mm2 1000VDC	10 Pairs
Mounting System	Standards Pitched Roof ( Customized Optional)	1 Set

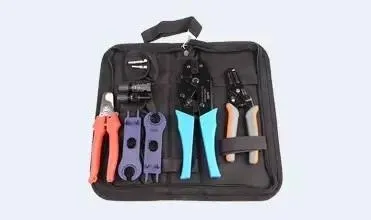

PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Note: Product dimensions and physical appearance in this data sheet are nominal. Alicosolar reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

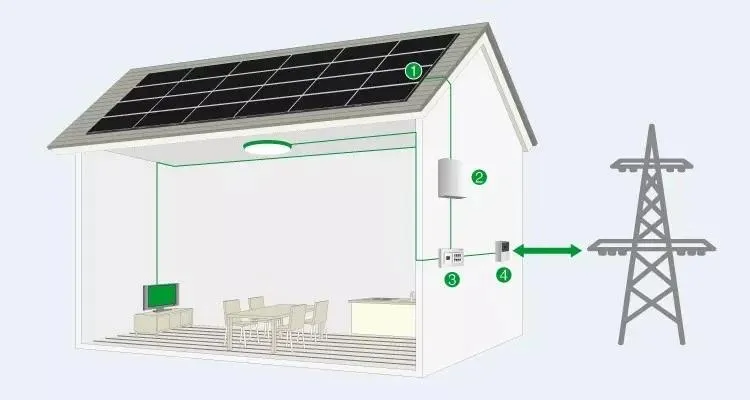

2868 10kw 12kw on Grid Solar System

1.Solar Panel

2.On Grid Inverter

3.Switch Box

4.Power Meter

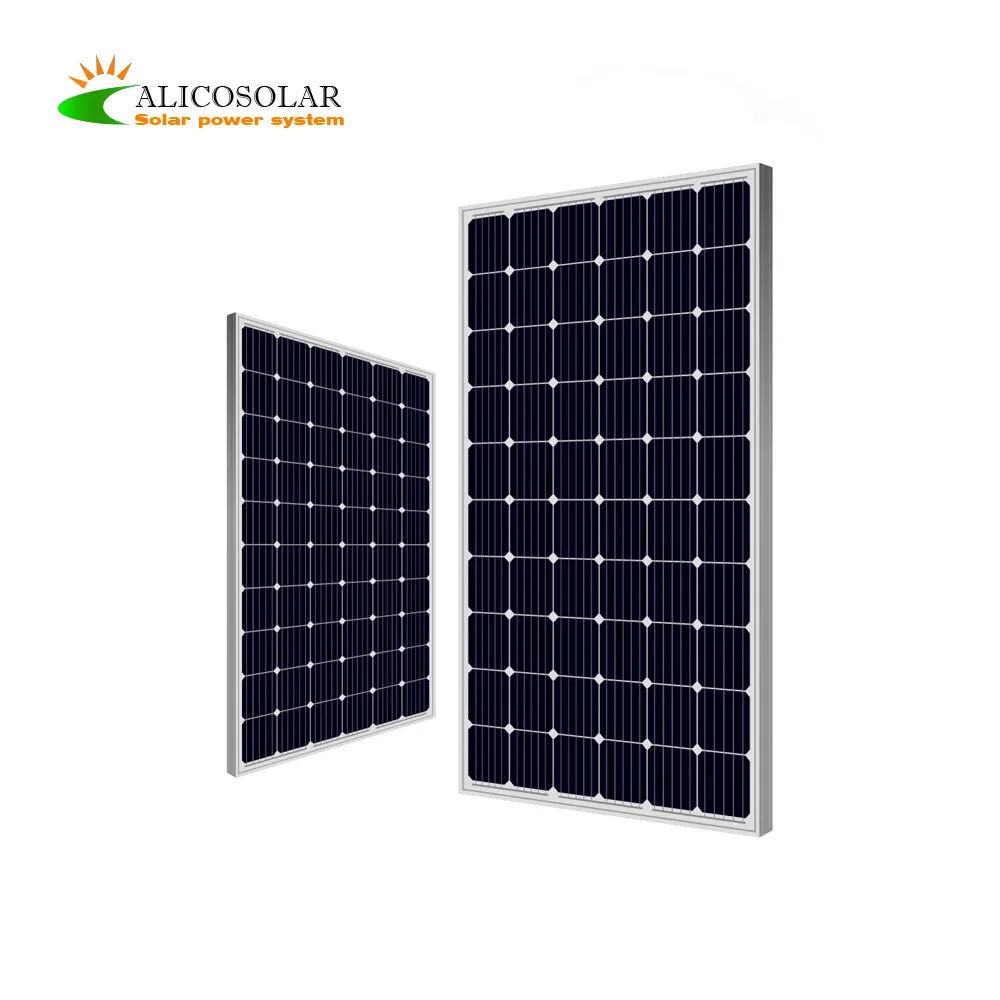

Mono Solar Panels

Peak Power Watts: 290W (ASM660290)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 39.5V
Short Circuit Current: 9.55A
Dimensions:1640×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)

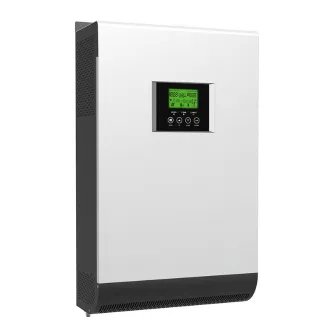

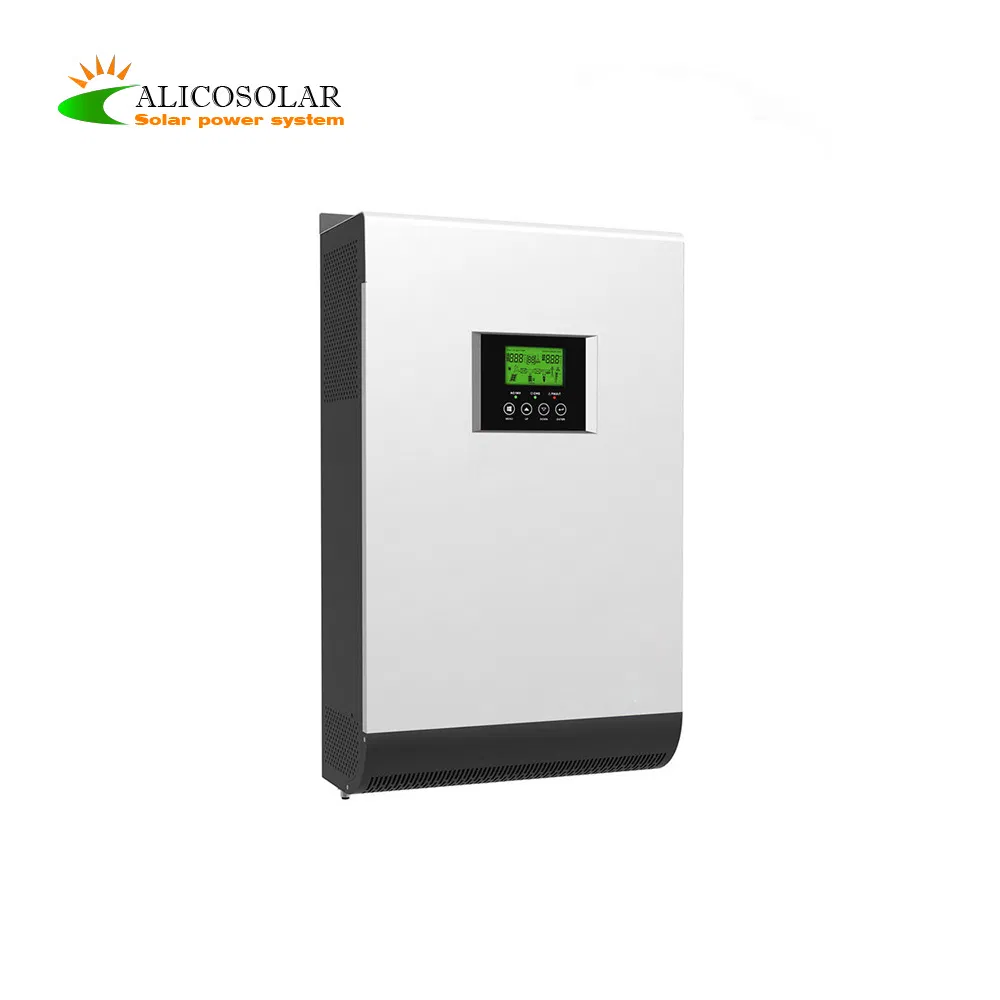

On-Grid Inverter

Max.DC Input Power: 5.8KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

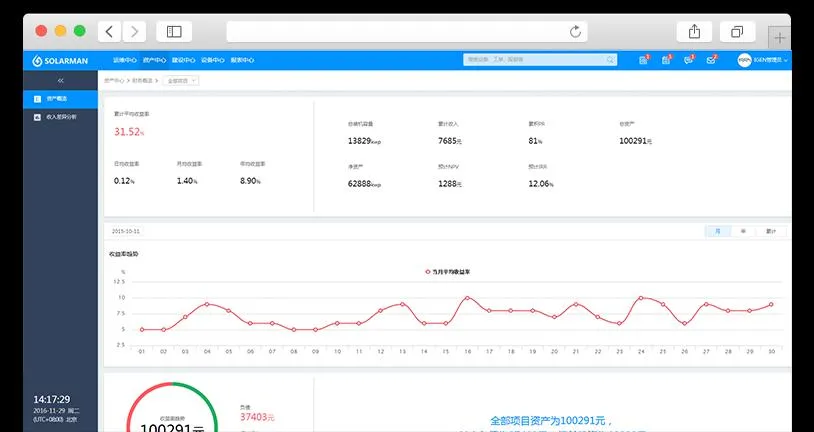

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod

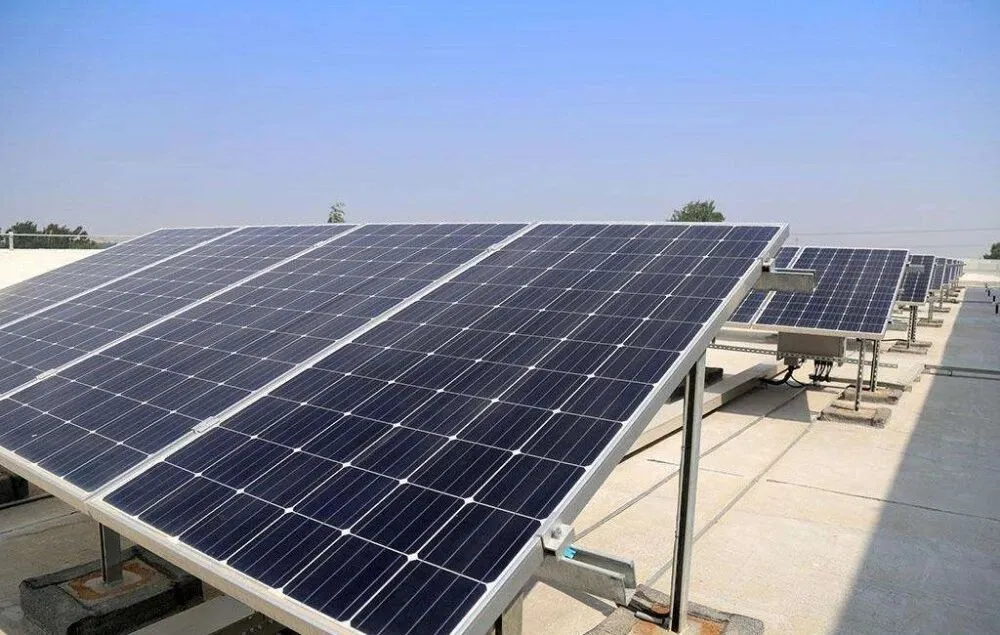

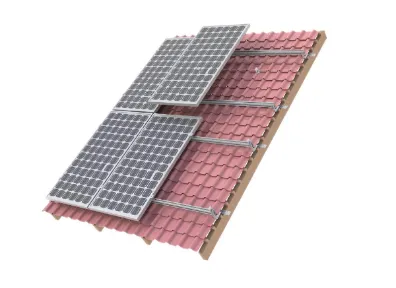

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

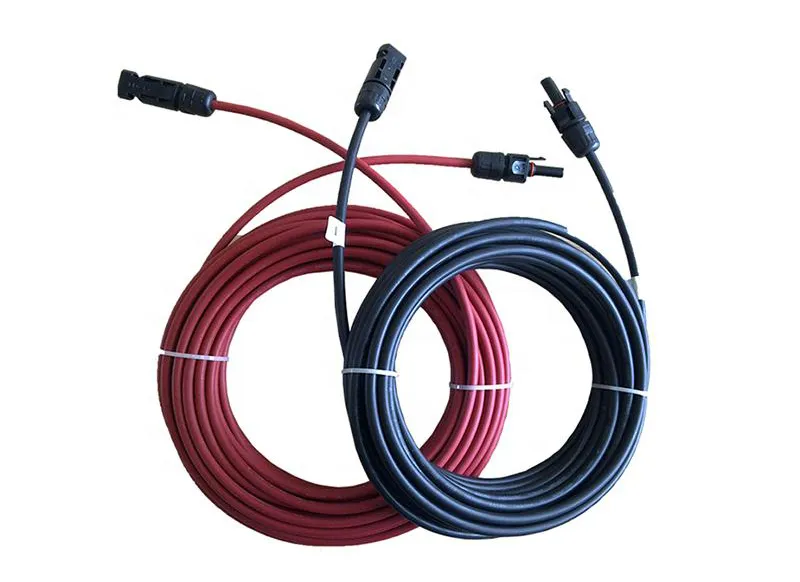

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
