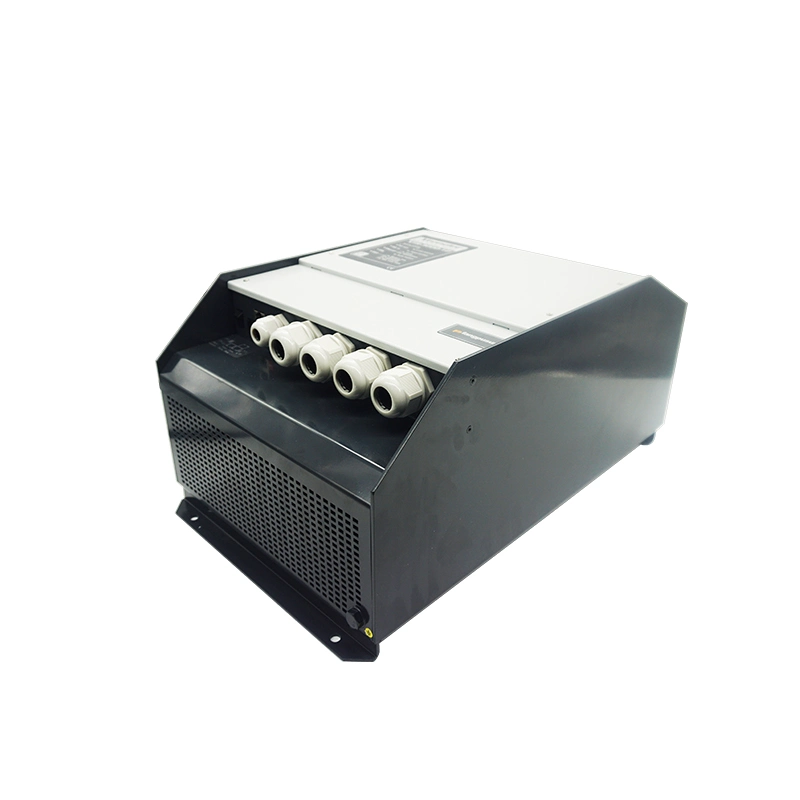

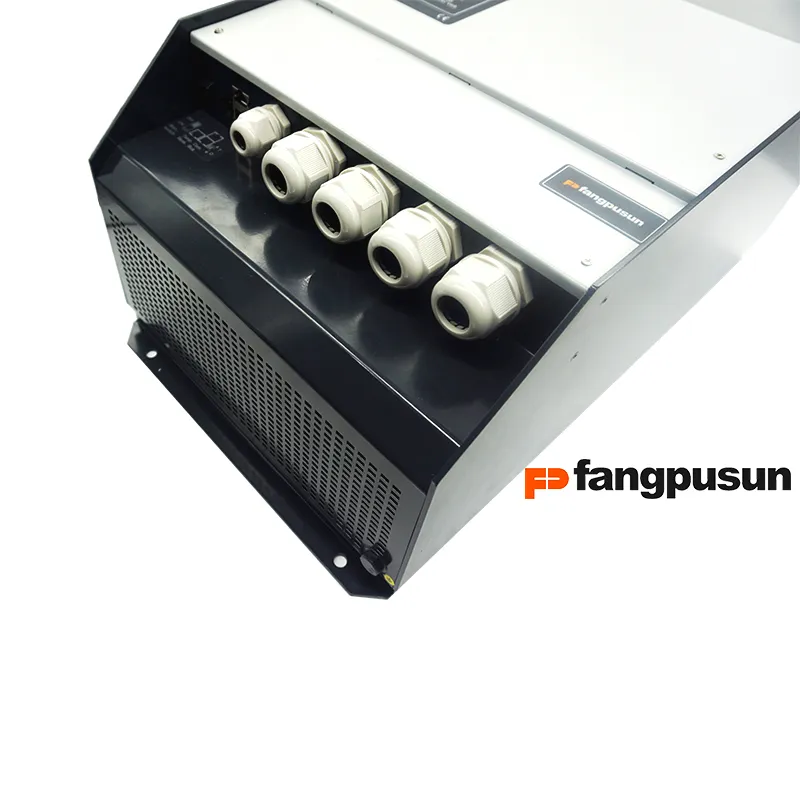

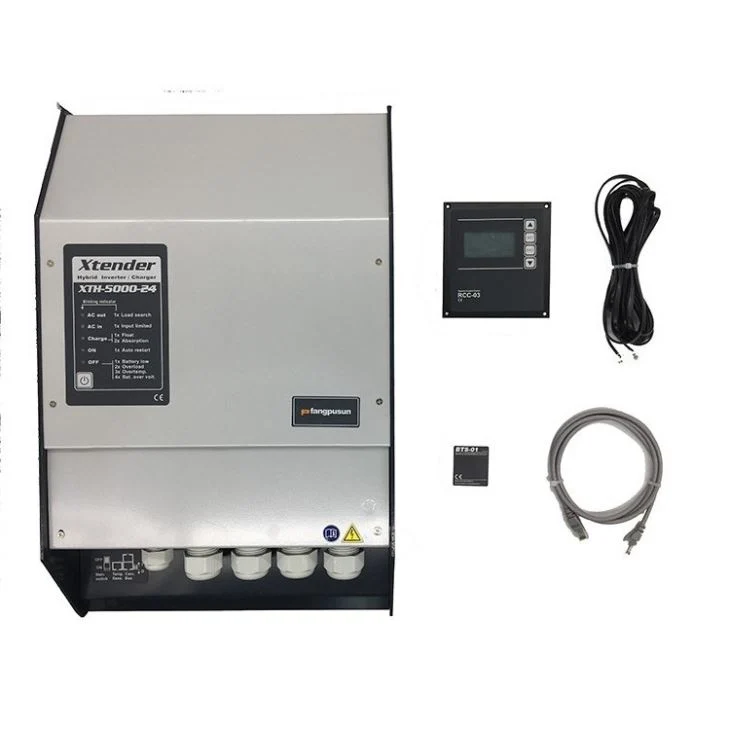

2021 New Fangpusun Xtender Xth 5000-24 Hybrid Inverter/ Charger 24V to 230V 5000W Inverters 10kw 15kw
Inverter/Charger Features* Configured individually, in parallel, split-phase, or three-phase* Power frequency inverter, no interference, high efficiency 95%, standby power consumption 2-3W* 5 main functions: It can be an off-grid inverter, battery charger, current injector, transfer system and pr......
Send Inquiry
Product Description

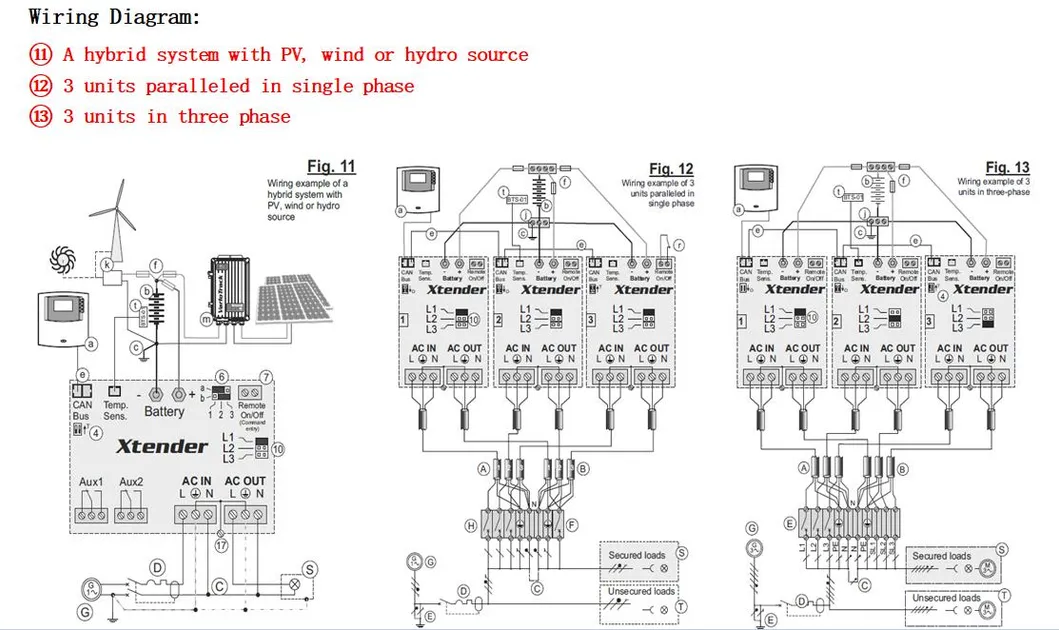

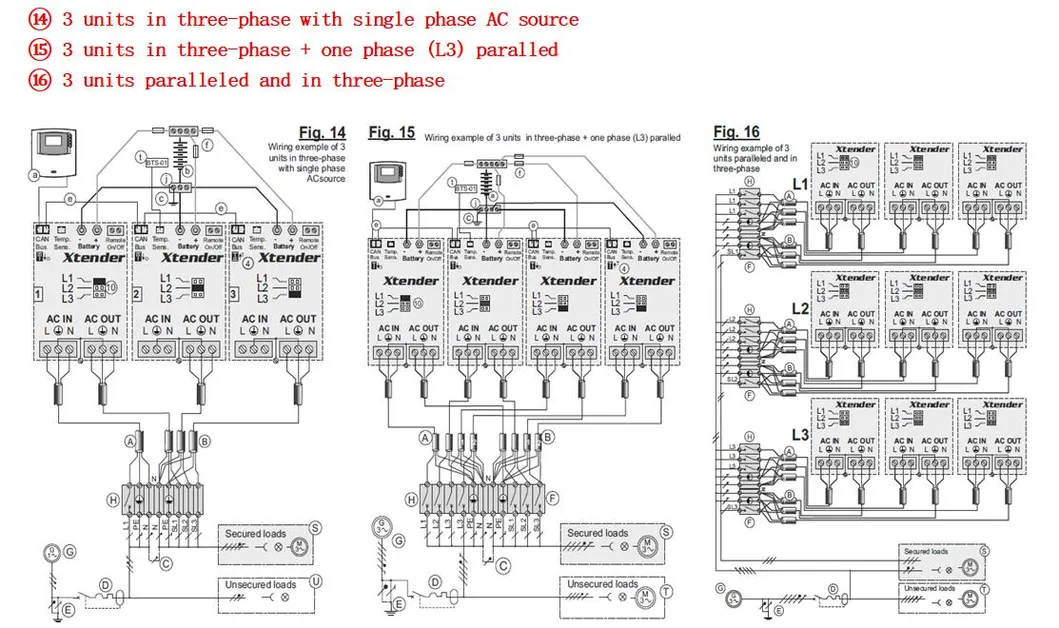

| * Configured individually, in parallel, split-phase, or three-phase |
| * Power frequency inverter, no interference, high efficiency 95%, standby power consumption 2-3W |
| * 5 main functions: It can be an off-grid inverter, battery charger, current injector, transfer system and provide support to an AC source. |
| * Battery charger adapted to OPzS, NiFe, Lithium, Redox Flow battery and VRB battery. |
| * Allows the Xtender to assist the AC source. the currents from both sources (AC-in and inverter) are combined output if the loads are more than the AC source can supply |
| * Information upload P.C. |

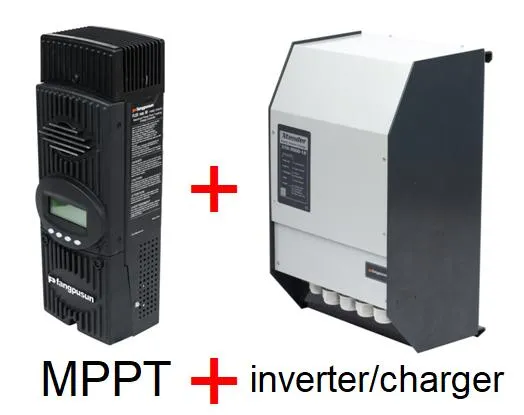

Gene General Hybrid inverter built in MPPT | When the hybrid Inverter built in MPPT breaks down, the whole machine has to be repaired or updated, and the power system will be suspended. |
 | No matter MPPT solar controller or inverter / charger fails, as long as a part of them is replaced, the whole off-grid power supply system can continue to work normally, and the cost is lower than replacing the hybrid Inverter built in MPPT. |

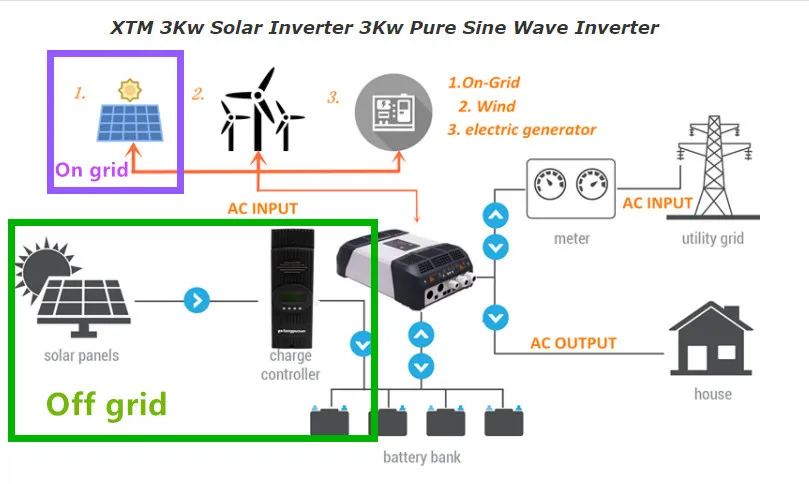

1. It's not just the inverter, it also can charge the battery from generator, solar panel, grid power
2. high efficiency 95%, it takes less time to fill the battery than other charger
3. Warranty 5 years
4. As same as Europe design and with competitive price
5. Compatible Switzerland Studer products
6. No magnetic interference, especially suitable for hospital precision instruments, banks, supermarkets, school and other large places
Model | XTH 3000-12 | XTH 5000-24 | XTH 6000-48 | XTH 8000-48 | |
| Characterisation of the operating performance | |||||
| Nominal battery voltage | 12V | 24V | 48V | 48V | |
| Input voltage range | 9.5-17VDC | 19-34VDC | 38-68VDC | 38-68VDC | |
| Continuous Power | 2500VA | 4500VA | 5000VA | 7000VA | |
| Power 30 min. | 3000VA | 5000VA | 6000VA | 8000VA | |
| Power 5 Sec. | 7.5KVA | 12KVA | 15KVA | 21KVA | |
| Max.efficiency | 93% | 94% | 96% | 96% | |
| Own consumption stand by | 1.4W | 1.8W | 2.2W | 2.4W | |
| Own consumption stand by | 14W | 18W | 22W | 30W | |
| Acoustic level without ventilation | 40 dB | ||||
| Acoustic level with ventilation | 45 dB | ||||
| Maximum load | Up to short-circuit | ||||
| Maximum asymmetric load | Up to Pcont. | ||||
| Load detection (stand-by) | 2 to 25 W | ||||
| Cos φ | 0.1-1 | ||||
| Output voltage | Pure sine wave 230Vac (±2%) / 120Vac (1) | ||||
| Output frequency | 45Hz-60Hz(1) ± 0.05% (crystal controlled) | ||||
| Harmonic distortion | <2% | ||||
| Overload and short-circuit protection | Automatic disconnection with 3 time restart attempt | ||||
| Overheat protection | Warning before shut-off - with automatic restart | ||||
| Battery charger | |||||
| Charge Characteristic | 6 steps : Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption Number of steps,thresholds,end current and times completely adjustable with the RCC-02/03 | ||||

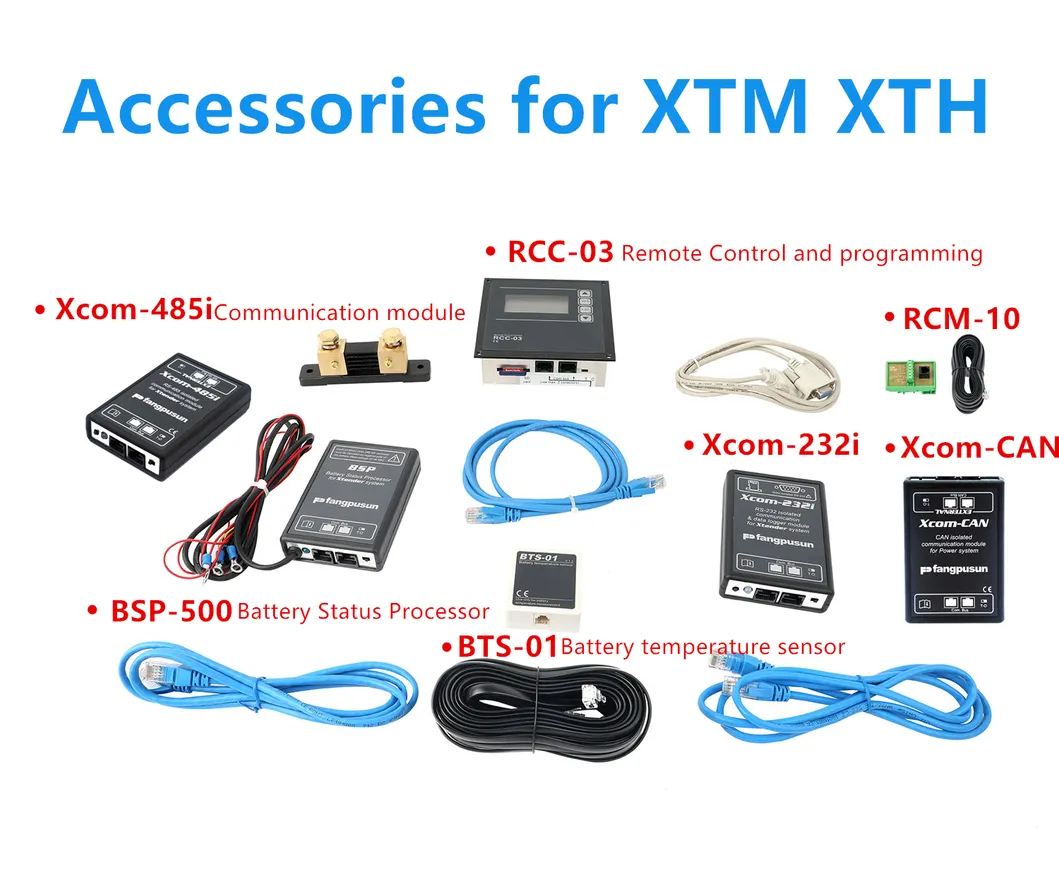

| Temperature compensation | With BTS-01 or BSP 500/1200 | ||||
| Maximum charging current | 160A | 140A | 100A | 120A | |
| Input voltage range | 150 to 265Vac / 50 to 140Vac (1) | ||||
| Input frequency | 45 to 65Hz | ||||
| Input current max . (transfer relay) / Output current max . | 50Aac / 56Aac | ||||
| Transfer time | < 15ms | ||||
| Protection index | IP 20 | ||||
| Operating temperature range | -20 to 55ºC | ||||
| Ventilation | Forced from 55ºC | ||||
| Warranty | 2 Years | ||||
Q. How to place order?
A: 1. List detail model name and quantity
2. confirm fangpusun logo or no logo
3. confirm mode of transport
4. answer to you lead time
5. transfer money
6. arrange to shipment and advise you tracking number
Q. Recommended articles?
Manufactory of Flexmax MPPT solar controller
Are you still worried about Flexmax mppt solar charge controller out of stock?
Are you still waiting for enough quantity Flexmax MPPT 60A 80A solar controller used in your project?
Are you still looking for compatible 12v 24v 36v 48v 60v MPPT solar controller for Outback inverter?
Are you still looking for a parallel MPPT solar controllers?
Are you still looking for a factory that can customize Flexmax MPPT solar controller ?
No doubt, We have full stock, fast delivery speed, OEM service and visual production service. We can update the production status of orders by video at any time.

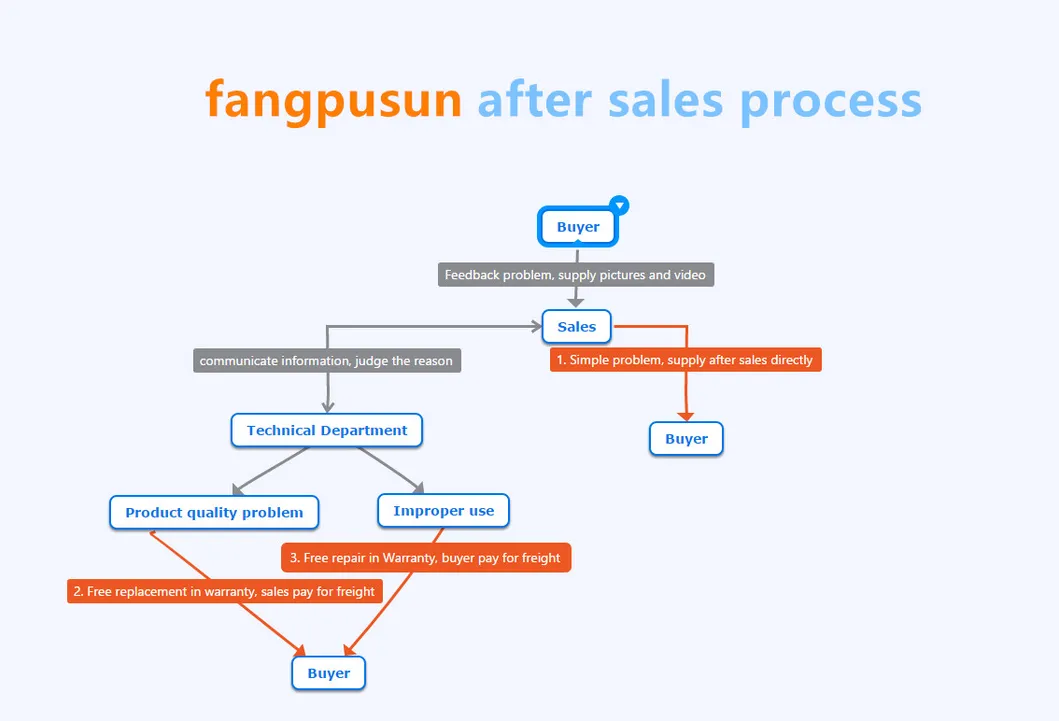

Q. Warranty service?
