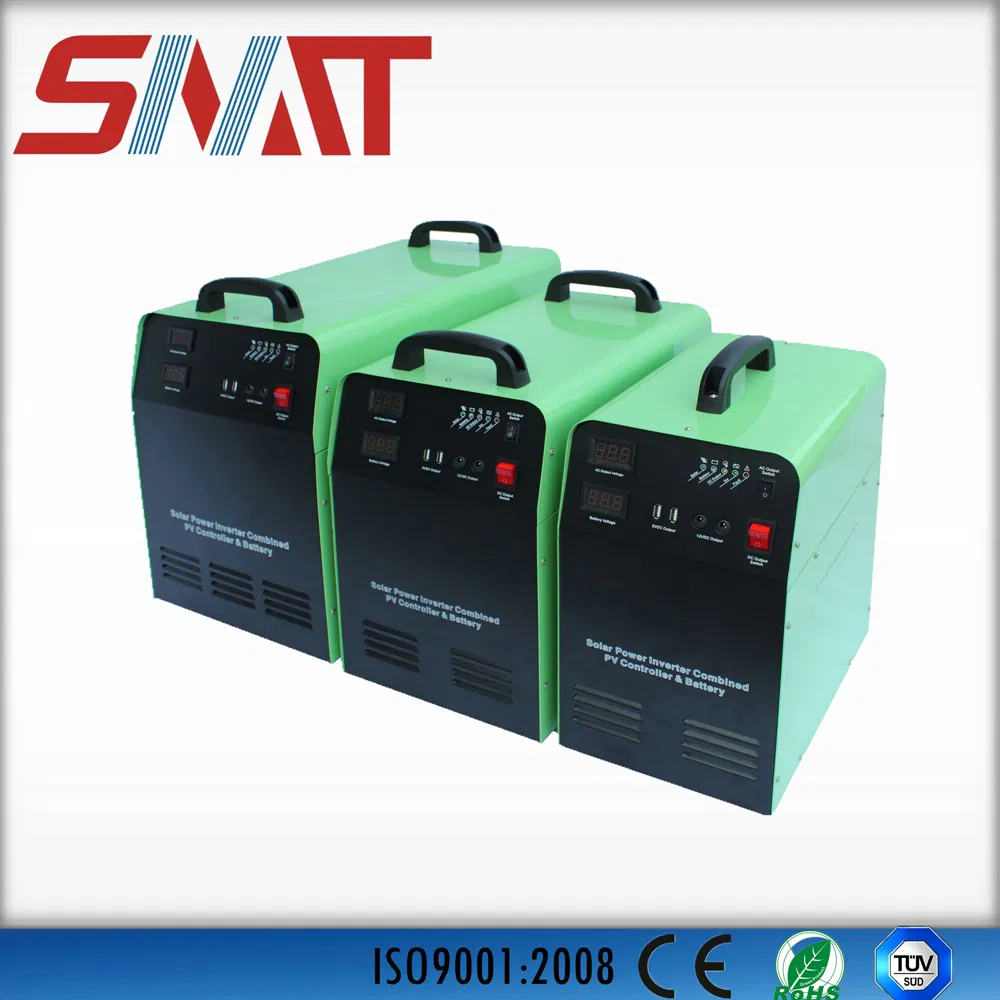

1000W-1500W DC Inverter, Power PV System, Solar Power Generator System
1000W-1500W DC Inverter, Power PV System, Solar Power Generator SystemProduct overviewThe product applies to diversified loads because its digital design, purer sine wave output and excellent overcurrent protection can withstand the loads with a large starting current; the product is provided with i......
Send Inquiry
Product Description

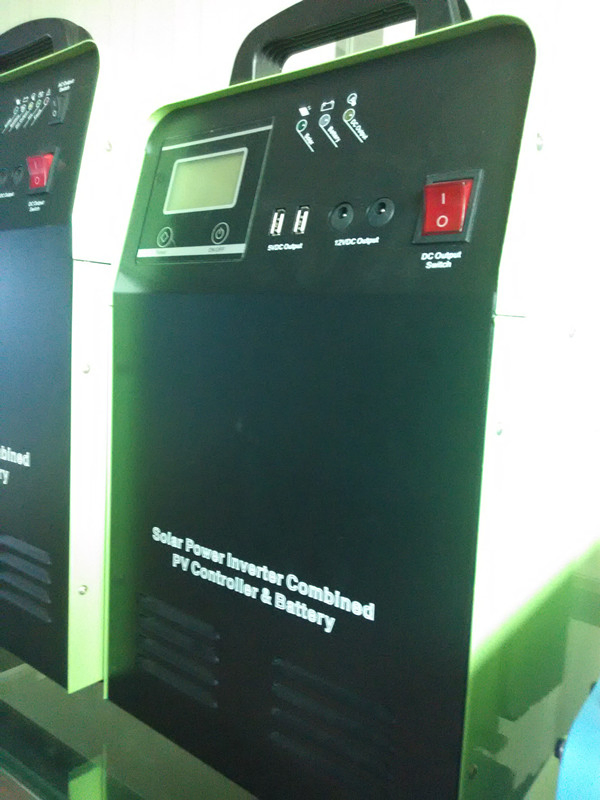

1000W-1500W DC Inverter, Power PV System, Solar Power Generator System
Product overview
The product applies to diversified loads because its digital design, purer sine wave output and excellent overcurrent protection can withstand the loads with a large starting current; the product is provided with independent solar three-stage charge management to improve charge efficiency of its battery and realize a longer life; the product provides universal 5VDC-USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring, industrial and mining enterprises, frontier defense sea islands, pasturing areas and more.
Main features
Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of pure sine wave AC output
convenient and practical 5VDC-USB output port and 12VDC output port
Solar array and battery common-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and over-discharge protection for a longer battery life

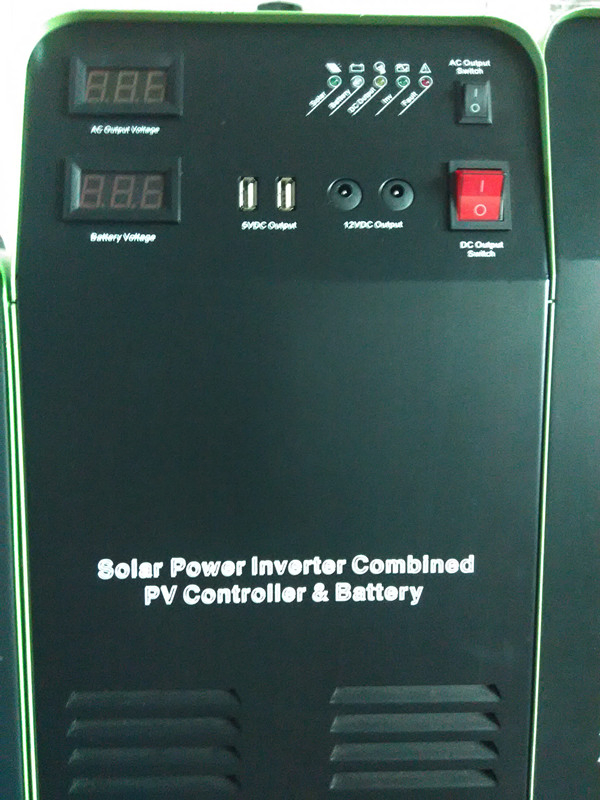

Digital meter and LEDs for visualization of operation status of the equipment;
Overall automatic protection and alarms including AC output overload protection, short circuit protection and more.
Product overview
The product applies to diversified loads because its digital design, purer sine wave output and excellent overcurrent protection can withstand the loads with a large starting current; the product is provided with independent solar three-stage charge management to improve charge efficiency of its battery and realize a longer life; the product provides universal 5VDC-USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring, industrial and mining enterprises, frontier defense sea islands, pasturing areas and more.
Main features
Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of pure sine wave AC output
convenient and practical 5VDC-USB output port and 12VDC output port
Solar array and battery common-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and over-discharge protection for a longer battery life
Digital meter and LEDs for visualization of operation status of the equipment;
Overall automatic protection and alarms including AC output overload protection, short circuit protection and more.
| Mode: AL | 1kw/24v | 1.5KW/24V | |||||
| Inverter | Battery voltage | 24v | |||||
| In-built battery specification | 2*55AH/12V | 4*55AH/12V | |||||
| Rated power | 1000W | 1500W | |||||
| Output voltage | 110/220VAC | ||||||
| Output frequency | 50/60HZ | ||||||
| Output waveform | sine wave | ||||||
| Charge by a mains supply | Rated voltage | 110/220VAC---*("*"mean an optional function) | |||||
| Charge current | 10A(MAX)-*(ditto) | ||||||
| solar input | Maximum power | ≤50V | |||||
| Voltage of overcharge protection | 20-50V | ||||||
| Rated charge current | 30A | ||||||
| Maximum power | 720Wp | ||||||
| Voltage of overcharge protection | 28.4V | ||||||
| Voltage of overcharge recovery | 28.0V | ||||||
| Voltage of floating charge | 27.4V | ||||||
| DC output | Voltage of high-voltage protection | 32V | |||||
| Voltage of high voltage recovery | 30.4V | ||||||
| Voltage of low voltage recovery | 25.2V | ||||||
| Voltage of lower voltage protection | 22V | ||||||
| 5VDC USB output port | 2 ones/MAX 2A | ||||||
| 12VDC output port | 2 one ports + backboard 12V terminal block(MAX8A) | ||||||
| Starting temperature of the exhaust fan | >45ºC | ||||||
| Ambient temperature for operation | 0-40ºC | ||||||
| Ambient temperature for storage | -25--+55ºC | ||||||
| Operation/storage condition | 0-90% (no condensation) | ||||||
| External dimensions | 423*260*453 | 513*310*493 | |||||
| Packing dimensions | 520*370*520 | 610*420*550 | |||||
Warranty
Quality warranty for 1 year; parts will be shipped for free during warranty period.
Delivery time
Stick to contract.
Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc
Accept special design requirements.
