Solar Water Heater Flat Panel Heating Collector
Solar Collector(flat plate solar collector )module size 2m*1mSolar water heater solar thermal collectorFlat plate High pressure high efficient Solar collector(150L, 200L,250L)high efficient Flat plate solar collectorsolar panel heater solar heater /water heater Flat plate solar water heaterFlat ......
Send Inquiry
Product Description
Solar Collector(flat plate solar collector )module size 2m*1m
Solar water heater solar thermal collector
Flat plate High pressure high efficient Solar collector(150L, 200L,250L)
high efficient Flat plate solar collector
solar panel heater solar heater /water heater
Flat plate solar water heater

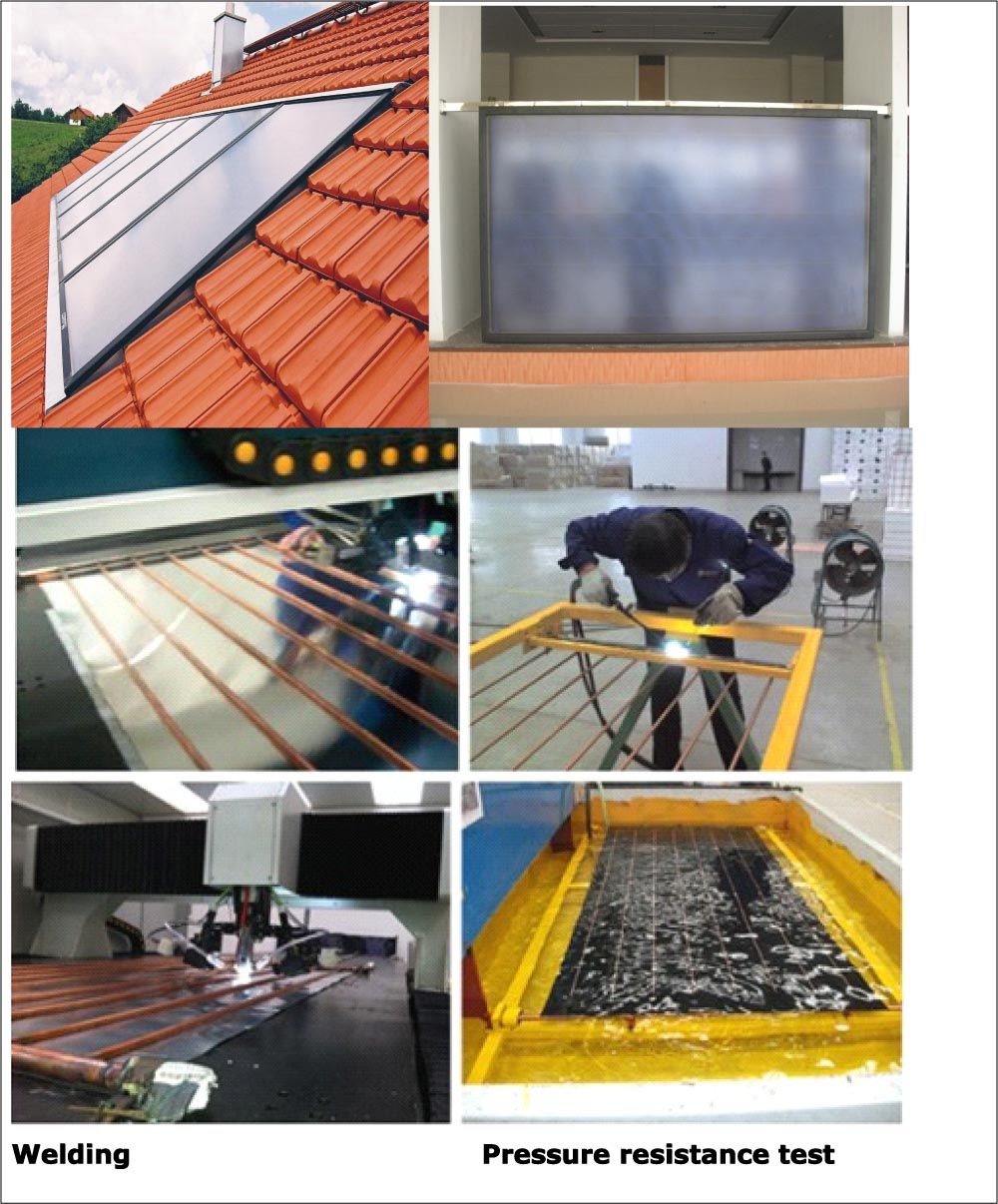

Flat plate solar collector-laser welding or ultrasonic welding absorber,full plate of aluminum absorber
pressurized flat plate Solar collector-maximum pressure 9 bar
High pressure flat plate solar collector
high efficient flat plate solar collector
solar water heating system
solar Panel heatingsystem
flat plate solar collector
Splite solar collector solar water heating system
high efficient solar collector Solar hot water heater
Solar water heater solar thermal collector
Flat plate High pressure high efficient Solar collector(150L, 200L,250L)
high efficient Flat plate solar collector
solar panel heater solar heater /water heater
Flat plate solar water heater
Flat plate solar collector-laser welding or ultrasonic welding absorber,full plate of aluminum absorber
pressurized flat plate Solar collector-maximum pressure 9 bar
High pressure flat plate solar collector
high efficient flat plate solar collector
solar water heating system
solar Panel heatingsystem
flat plate solar collector
Splite solar collector solar water heating system
high efficient solar collector Solar hot water heater
| Flat Plate Solar Collector high pressure solar collector | ||||||||
| Copper and Aluminum combined solar collector | All red copper black Chrome coated collector | All red copper Blue Tec Absorber collctor | Aluminum 1PC black Chrome coated collector | Aluminum 1PC aluminum coated Bluetec collector | |||
| Coating | Anodized treatment | Black Chrome coated | Germany imported Selective coating | Black Chrome coated 1PC | Germany imported | |||
| Construction type | pipe+fin | pipe+plate | pipe +plate | pipe+plate | pipe+plate | |||
| Absorption rate | 0.95± 0.03 | 0.96± 0.03 | 0.96± 0.02 | 0.96± 0.03 | 0.96± 0.02 | |||
| Emmision rate | 0.18± 0.05 | 0.09± 0.05 | 0.05± 0.02 | 0.09± 0.05 | 0.05± 0.02 | |||
| Aluminum fin | 140x 1855 x 0.15 7 | 140x 1850 x 0.15 | 140x 1850 x 0.12 | 1925x 925x 0.3 | 1925x 925x 0.3 | |||
| Header pipe | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | |||
| Grid pipe | Φ 10 x 0.5 | Φ 10 x 0.5 7PCS | Φ 10 x 0.5 7PCS | Φ 10x 0.5 7PCS | Φ 10x 0.5 7PCS | |||
| Overall size | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | |||
| Frame thickness | 0.85mm | 0.85mm | 0.85mm | 0.85mm | 0.85mm | |||
| Frame color | Silver white | silver white | silver white | Silver white | silver white | |||
| Gross area | 2m2 | 2m2 | 2m2 | 2m2 | 2m2 | |||
| Absorption area | 1.85m2 | 1.85m2 | 1.85m2 | 1.85m2 | 1.85m2 | |||
| Seal | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | |||
| Cover quantity | 1 | 1 | 1 | 1 | 1 | |||
| cover material | 4mm float glass | 4mm tempered glass | 4mm tempered glass | 4mm tempered glass | 4mm tempered glass | |||
| transmittance | 89% | 89% | 89% | 89% | 89% | |||
| bottom cover | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | |||
| Insulation(mm) | bottom 16K*30 fiber glass frame 48K*20 fiber glass | bottom 16K*30 fiber glass frame 48K*20fiber glass | bottom 16K*30fiber glass frame48K*20firber glass | bottom16K*30fiber glass frame 48K*20 fiber glass | bottom 16K*30fiber glass frame48K*20fiber glass | |||
| Maximum pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | |||
| Weight | 34kg | 35kg | 35kg | 35kg | 35kg | |||
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years | |||
