Hot 2021 Chinese Solar Energy Flat Plate
Hot 2016 Chinese Solar Energy Flat Plate Product Specification:1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.3) Whole-plate ultrasonic ......
Send Inquiry
Product Description
Hot 2016 Chinese Solar Energy Flat Plate
Product Specification:
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.

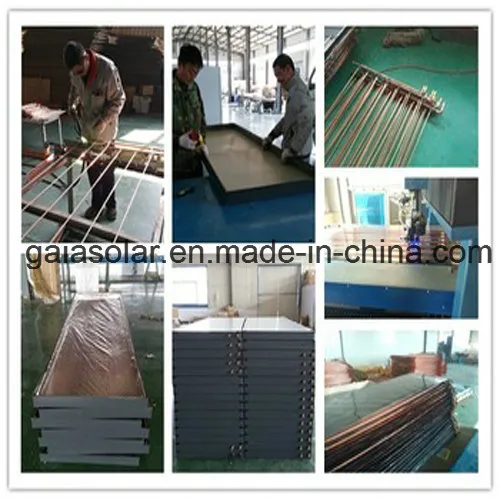

3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Product Details
Work Principle
Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing solar energy into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Absorber plates are commonly painted with "selective coatings". Absorber plates are usually made of copper or aluminum because the metal is a good heat conductor. Copper is more expensive, but is a better conductor and less prone to corrosion than aluminum.
Benefits:
· Durable and corrosion-resistant material makes your maintenance cost low.
· Comfortable hot water can be gained even in medium solar radiation areas.
· Increases the value of your property.
· Long lifespan to 25 years, makes your investment more worth it.
· Worry-free from hails or other terrible weathers.
technical data
FAQ
Q1: Can I have a sample for testing?
A: Yes, of courses we can supply the sample for you!
Q2: Can I add my logo on the water tank?
A: Yes, OEM and ODM are available for us. But you should send us LOGO image.
Q3: How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, but you should pay.
Q4: Do you have inspection before delivery?
A: 100% self-inspection before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Packing & Delivery
Packing Details
Full container order in high quality export carton or pack it according to customers special request.
Delivery Details
Within 14 days
About Us
Gaia Solar is located in Dezhou city which known as China Solar Valley. During past ten years history, Gaia Solar has become one of the largest private solar energy companies in china. Its main products solar evacuated tube, solar water heater, solar oven, parabolic trough solar collector and his receiver tube have exported more than thirty countries.
Good quality, competitive price and best service will be your best cooperator in the solar energy field.
Related Products
Gaia Solar Oven
Gaia Receiver Tube
Parabolic Trough Solar Collector
Solar evacuated collector tube
Contact Us
Dezhou Gaia Solar Energy Co.,Ltd
Room 712, Baitiane Plaza, No.7 of HuBinnan Road, Dezhou City, Shandong Province
Website: gaiasolar.en.made-in-china.com
Mobile and Chat: 0086-13953485199
Product Specification:
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.

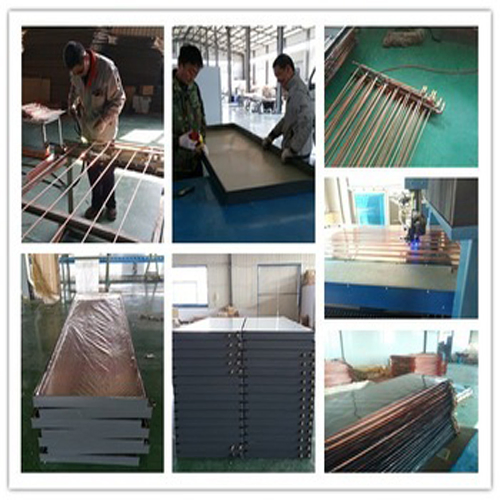

3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Product Details
Work Principle
Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing solar energy into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Absorber plates are commonly painted with "selective coatings". Absorber plates are usually made of copper or aluminum because the metal is a good heat conductor. Copper is more expensive, but is a better conductor and less prone to corrosion than aluminum.
Benefits:
· Durable and corrosion-resistant material makes your maintenance cost low.
· Comfortable hot water can be gained even in medium solar radiation areas.
· Increases the value of your property.
· Long lifespan to 25 years, makes your investment more worth it.
· Worry-free from hails or other terrible weathers.
technical data
| Out Shell | Shell Material | 6063-T5 Aluminum Alloy | |||
| Thickness | 1.0mm | ||||
| Technology | Plastic Spray | ||||
| Seal Strip | Material | EPDM | |||
| Glass Cover | Material | Low iron matted tempered glass | |||
| Transmissivity | ≥92% | ||||
| Thickness | 3.2mm | ||||
| Insulation Material | Back Side | Material | Glass Fiber + Polyurethane | ||
| Thickness | 20+25mm | ||||
| Round Sides | Material | polyurethane | |||
| Thickness | 15mm | ||||
| Material of Plate Core | Aluminum plate(0.4mm) | ||||
| Welding Technology of Plate Core | Laser Welding | ||||
| Material and Specification of Back Plate and Sides | Aluminum Alloy δ≥0.3mm | ||||
| Solar Thermal Characteristic | Film | Black Ti Film | |||
| Film Technology | Strong Magnetic Voltex High Voltage adsorption | ||||
| Absorptance | α=0.95±0.02 | ||||
| Emittance | ε=0.05±0.02 | ||||
| Physical Characteristic | Dimension(mm) | 2000×1070×80mm | |||
| Net weight(kg) | 38 | ||||
| Gross weight(kg) | 41 | ||||
| Test Pressure | 1.2MPa,10 minutes | ||||
| Working Pressure | 0.6MPa | ||||
| Inner Plate | Copper Pipe | TP2 Φ22 Copper Pipe | |||
| Copper Pipe Specification(mm) | Φ22×0.5 | ||||
| Reed Pipes | PERM | ||||
| Reed Pipe Specification(mm) | Φ10×0.5 | ||||
| Plate Core Dimension(mm) | 1950×950×0.4mm | ||||
| Number of Copper Pipe | 7 | 8 | 9 | ||
FAQ
Q1: Can I have a sample for testing?
A: Yes, of courses we can supply the sample for you!
Q2: Can I add my logo on the water tank?
A: Yes, OEM and ODM are available for us. But you should send us LOGO image.
Q3: How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, but you should pay.
Q4: Do you have inspection before delivery?
A: 100% self-inspection before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Packing & Delivery
Packing Details
Full container order in high quality export carton or pack it according to customers special request.
Delivery Details
Within 14 days
About Us
Gaia Solar is located in Dezhou city which known as China Solar Valley. During past ten years history, Gaia Solar has become one of the largest private solar energy companies in china. Its main products solar evacuated tube, solar water heater, solar oven, parabolic trough solar collector and his receiver tube have exported more than thirty countries.
Good quality, competitive price and best service will be your best cooperator in the solar energy field.
Related Products
Gaia Solar Oven
Gaia Receiver Tube
Parabolic Trough Solar Collector
Solar evacuated collector tube
Contact Us
Dezhou Gaia Solar Energy Co.,Ltd
Room 712, Baitiane Plaza, No.7 of HuBinnan Road, Dezhou City, Shandong Province
Website: gaiasolar.en.made-in-china.com
Mobile and Chat: 0086-13953485199
