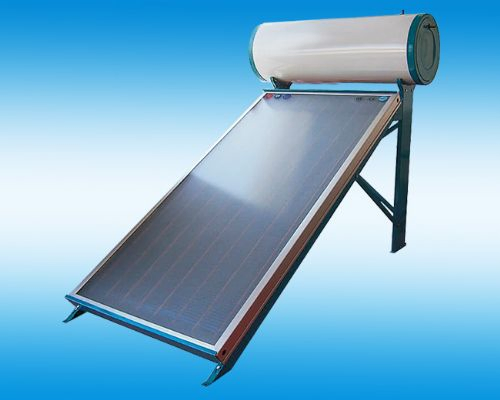

Flat Plate Heating Solar Water Heaters

Product Description

Flat Plate Heating Solar Water Heaters

Product Specification:

1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Flat Plate Heating Solar Water Heaters

Product Details

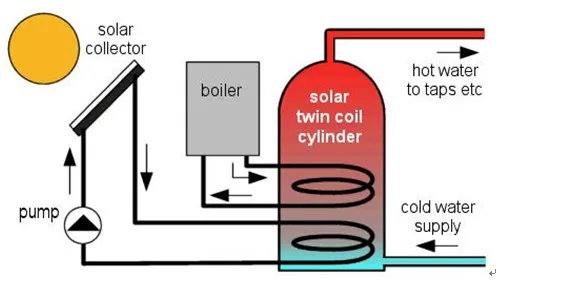

Work Principle

Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing solar energy into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Absorber plates are commonly painted with "selective coatings". Absorber plates are usually made of copper or aluminum because the metal is a good heat conductor. Copper is more expensive, but is a better conductor and less prone to corrosion than aluminum.
Flat Plate Heating Solar Water Heaters
Advantages:

·         Great pressurization property, very safe and clean.

·         Absorption ≥94%; emission ≤10%.

·         Strong thermal stability.

·         Strong welding property and conductivity

·         Strong protection to the collector.

technical data

Out Shell	Shell Material		6063-T5 Aluminum Alloy
	Thickness		1.0mm
	Technology		Plastic Spray
Seal Strip	Material		EPDM
Glass Cover	Material		Low iron matted tempered glass
	Transmissivity		≥92%
	Thickness		3.2mm
Insulation Material	Back Side	Material	Glass Fiber + Polyurethane
		Thickness	20+25mm
	Round Sides	Material	polyurethane
		Thickness	15mm
Material of Plate Core			Aluminum plate(0.4mm)
Welding Technology of Plate Core			Laser Welding
Material and Specification of Back Plate and Sides			Aluminum Alloy δ≥0.3mm
Solar Thermal Characteristic	Film		Black Ti Film
	Film Technology		Strong Magnetic Voltex High Voltage adsorption
	Absorptance		α=0.95±0.02
	Emittance		ε=0.05±0.02
Physical Characteristic	Dimension(mm)		2000×1070×80mm
	Net weight(kg)		38
	Gross weight(kg)		41
	Test Pressure		1.2MPa,10 minutes
	Working Pressure		0.6MPa
Inner Plate	Copper Pipe		TP2 Φ22 Copper Pipe
	Copper Pipe Specification(mm)		Φ22×0.5
	Reed Pipes		PERM
	Reed Pipe Specification(mm)		Φ10×0.5
	Plate Core Dimension(mm)		1950×950×0.4mm
	Number of Copper Pipe		7	8	9

Flat Plate Heating Solar Water Heaters
FAQ
Q1: Can I have a sample for testing?
A: Yes, of courses we can supply the sample for you!

Q2: Can I add my logo on the water tank?
A: Yes, OEM and ODM are available for us. But you should send us LOGO image.

Q3: How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, but you should pay.

Q4: Do you have inspection before delivery?
A: 100% self-inspection before packing.

Q5 : Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Packing & Delivery

Packing Details
Full container order in high quality export carton or pack it according to customers special request.

Delivery Details
Within 14 days
