Why Screw Pile Solar Steel Ground Mount Is Transforming Modern Solar Construction?
2026-06-11
In today's rapidly expanding renewable energy market, ground-mounted solar systems are evolving toward faster installation, higher stability, and lower overall cost. Among these innovations, the Screw Pile Solar Steel Ground Mount has emerged as a preferred structural solution for utility-scale and commercial PV projects. Its ability to adapt to various soil conditions, reduce excavation work, and improve installation efficiency makes it a strong competitor against traditional concrete foundation systems. With professional support from manufacturers like Xiamen Honor Energy Co.,Ltd, this mounting structure is increasingly being adopted worldwide for reliable solar infrastructure development.
What Is a Screw Pile Solar Steel Ground Mount?

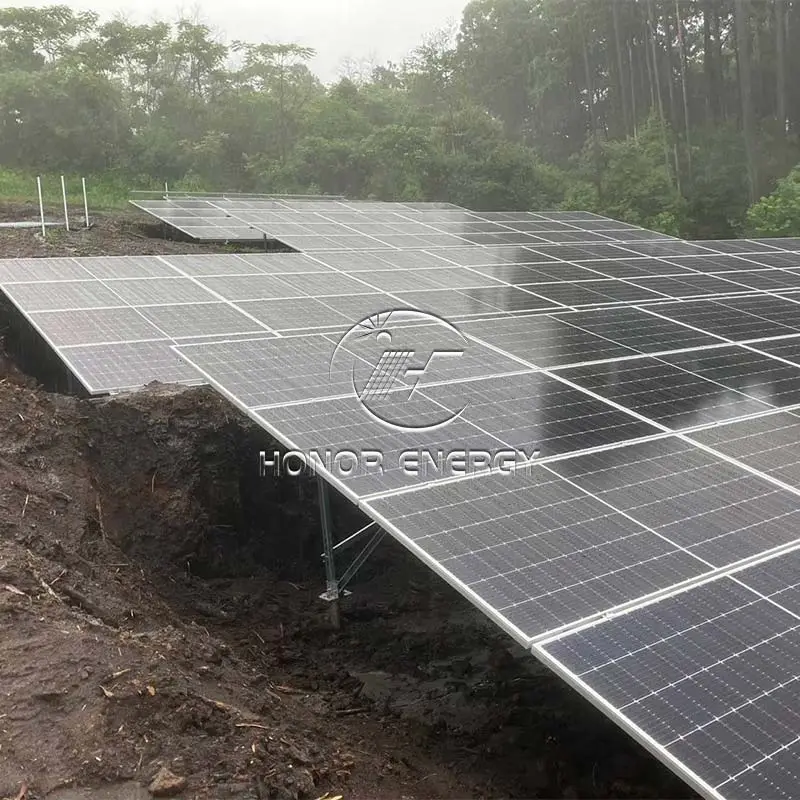

A Screw Pile Solar Steel Ground Mount is a solar installation foundation system that uses helical steel piles screwed directly into the ground. These piles act as the primary support for the solar mounting structure, replacing traditional concrete footings.
Unlike conventional systems that require digging, pouring, and curing concrete, screw piles are installed using hydraulic machinery, significantly reducing construction time and environmental impact.
Key Advantages of Screw Pile Solar Steel Ground Mount
The popularity of the Screw Pile Solar Steel Ground Mount is driven by several engineering and economic advantages:
1. Fast Installation
- No concrete curing time required
- Immediate load-bearing capacity after installation
- Reduces project timelines by up to 50%
2. Strong Ground Adaptability
- Suitable for sandy, rocky, clay, and mixed soil conditions
- Adjustable pile depth ensures stability in uneven terrain
3. Cost Efficiency
- Lower labor requirements
- Reduced transportation of concrete materials
- Minimal site preparation costs
4. Environmental Benefits
- No soil excavation waste
- Reusable and recyclable steel components
- Reduced carbon footprint during installation
Comparison Between Screw Pile and Concrete Foundation Systems
| Feature | Screw Pile Solar Steel Ground Mount | Concrete Foundation |
|---|---|---|
| Installation Time | Very fast | Slow (curing required) |
| Environmental Impact | Low | High |
| Cost Efficiency | High | Moderate to low |
| Soil Flexibility | Excellent | Limited |
| Equipment Required | Hydraulic driver | Excavation + mixing tools |
| Maintenance | Easy adjustment possible | Difficult to modify |
This comparison clearly shows why many EPC contractors and solar developers are shifting toward screw pile solutions for modern PV farms.
Structural Design and Engineering Strength
The Screw Pile Solar Steel Ground Mount is engineered with high-strength galvanized steel to resist corrosion and withstand long-term environmental exposure. The helical blade design improves ground anchoring force, ensuring stability even under strong wind loads or heavy snow conditions.
Engineers typically perform soil testing before installation to determine pile length, diameter, and torque requirements. This ensures optimal load distribution and structural safety for solar modules mounted on top.
Applications in Solar Projects
The versatility of the Screw Pile Solar Steel Ground Mount allows it to be used in various project types:
- Utility-scale solar farms
- Commercial rooftop-to-ground hybrid systems
- Agricultural photovoltaic systems (Agri-PV)
- Remote off-grid solar installations
- Desert and coastal solar projects
Its adaptability makes it particularly useful in regions with unstable or mixed soil conditions where traditional foundations are less effective.
Installation Process Overview
The installation of a Screw Pile Solar Steel Ground Mount generally follows these steps:
- Site survey and soil analysis
- Position marking based on design layout
- Hydraulic screwing of steel piles into the ground
- Vertical alignment adjustment
- Mounting bracket installation
- Solar panel frame assembly
This streamlined process significantly reduces on-site labor and construction complexity.
Technical Performance Summary
| Parameter | Performance Description |
|---|---|
| Material | Hot-dip galvanized steel |
| Lifespan | 25–30 years |
| Wind Resistance | Up to 60 m/s (design dependent) |
| Corrosion Protection | High-grade zinc coating |
| Installation Method | Hydraulic torque driving |
These specifications make the system highly reliable for long-term solar infrastructure investment.
Why Choose Xiamen Honor Energy Co.,Ltd?
As a professional manufacturer in the renewable energy structural industry, Xiamen Honor Energy Co.,Ltd provides high-quality Screw Pile Solar Steel Ground Mount systems designed for global PV projects. The company focuses on precision engineering, strict quality control, and customized mounting solutions to meet different terrain and climate requirements.
With strong production capability and export experience, Xiamen Honor Energy Co.,Ltd supports EPC contractors and solar developers in achieving faster project delivery and improved structural reliability.
Conclusion
The Screw Pile Solar Steel Ground Mount represents a modern evolution in solar foundation technology. Its speed of installation, structural stability, environmental advantages, and cost efficiency make it a superior choice for both small and large-scale photovoltaic projects. As the solar industry continues to expand globally, this foundation system will play an increasingly important role in reducing construction complexity and improving project ROI.
Whether for utility-scale solar farms or specialized terrain installations, partnering with an experienced supplier ensures long-term performance and project success.
For more technical details, customized solutions, or project quotations, please feel free to contact us at Xiamen Honor Energy Co.,Ltd—your reliable partner in solar mounting system innovation.
