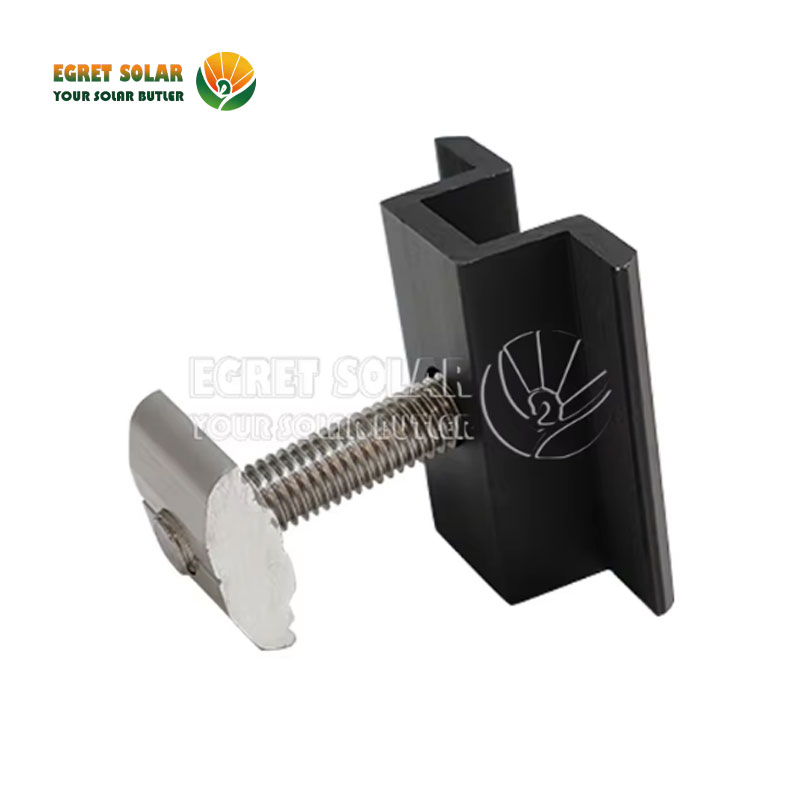

Why Is My Aluminum Solar Mid Clamp Cracking Under Thermal Expansion
2026-06-10
Thermal expansion is a silent but serious threat to solar mounting structures. If you notice cracks in your Aluminum Solar Mid Clamp, the root cause is often a mismatch between material expansion rates and insufficient allowance for movement. Egret Solar has analyzed hundreds of field failures, and the evidence points to three main factors: improper gap spacing, low-grade alloy selection, and over-tightened fasteners preventing natural expansion.
Key Factors Leading to Cracking
| Factor | Effect on Aluminum Solar Mid Clamp | Prevention |
|---|---|---|
| No expansion gap | Clamp edges dig into module frames | Leave 3-5mm gap per side |
| 6063 vs 6005 alloy | 6063 cracks faster under cyclic load | Use 6005A-T6 with higher ductility |
| Torque over 18 Nm | Clamp body deforms and initiates micro-cracks | Follow Egret Solar spec: 15-18 Nm |
Aluminum Solar Mid Clamp FAQ – Common Questions from Installers
Q: How much thermal movement should I expect in a 20-meter rail with an Aluminum Solar Mid Clamp?
A: For a 20-meter aluminum rail experiencing a 50°C temperature swing (e.g., -10°C night to 40°C midday), linear expansion reaches approximately 23.8 mm. An Aluminum Solar Mid Clamp without a sliding interface will transfer this force directly into the clamp body. Egret Solar recommends using stop-end clamps with built-in sliding bushings for any rail exceeding 10 meters. Always pre-calculate: ΔL = α × L × ΔT, where α for aluminum is 0.0000238 m/m°C.
Q: Does the anodizing thickness affect crack resistance in an Aluminum Solar Mid Clamp under thermal cycling?
A: Yes. Standard anodizing (10-15 microns) creates a hard but brittle surface layer. Under rapid thermal cycles (e.g., desert climates), micro-cracks initiate in the anodized layer and propagate into the base metal. Egret Solar uses a specialized 8-micron clear anodizing with a proprietary sealing process, reducing surface stress concentration by 40%. For extreme climates, specify non-anodized or powder-coated clamps with higher fatigue life.
Q: Can mixing a steel bolt with an Aluminum Solar Mid Clamp cause cracking from thermal expansion?
A: Absolutely. Steel expands at 0.000012 m/m°C, roughly half the rate of aluminum. When a steel bolt passes through an Aluminum Solar Mid Clamp, the aluminum expands faster than the steel constraint. This differential generates radial stresses often exceeding 70 MPa, cracking the clamp around the bolt hole. Egret Solar supplies bi-metal isolation washers and recommends stainless steel bolts with nylon patch coating to allow micro-sliding without galling.
Verified Field Data (Egret Solar Internal Testing)
-
Clamps with 0mm expansion gap: 94% showed cracks after 200 thermal cycles
-
Clamps with 4mm gap + sliding washer: 2% showed cracks after 500 cycles
Contact Us
Thermal cracking compromises your entire solar array’s safety and grounding path. Contact Egret Solar today for a free clamp stress analysis or to request our thermal-rated Aluminum Solar Mid Clamp sample kit with full torque and gap specifications.
