Why Are MC4 Connectors Shaping the Future of Solar Power Integration?

The MC4 connector has become the global standard interface for modern photovoltaic (PV) installations. Designed for reliable, weather-resistant DC interconnections, this connector ensures secure mating, low contact resistance, and long-term outdoor durability. Its adoption across residential, commercial, and utility-scale solar projects reflects a broader industry shift toward safer, more efficient, and more streamlined solar system engineering.

What Is an MC4 Connector and Why Is It Essential for Photovoltaic Systems?

What is an MC4 connector?

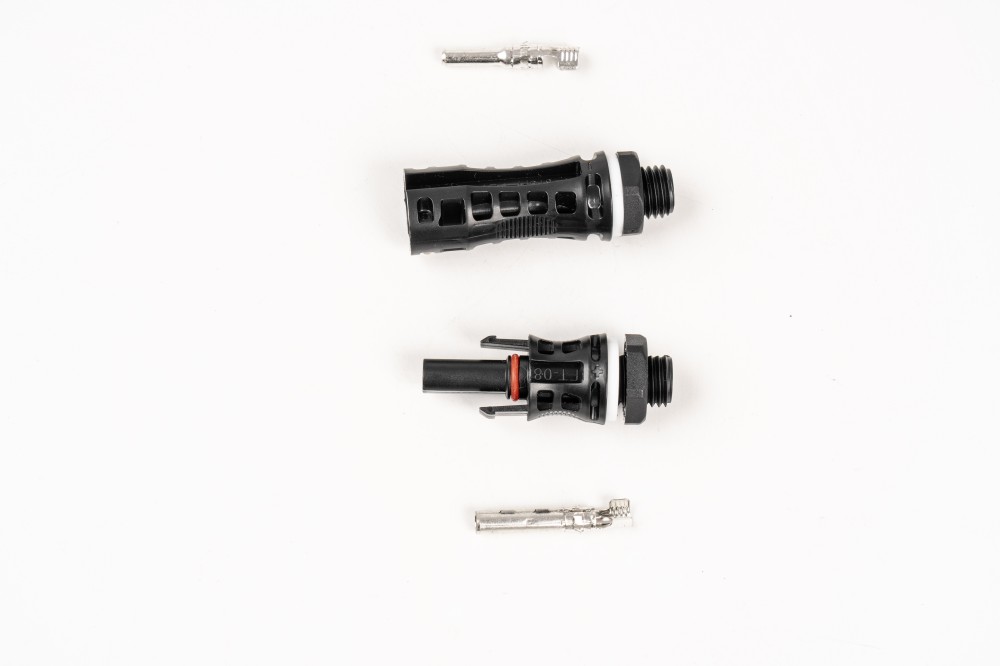

The MC4 connector (“Multi-Contact 4 mm”) is a single-contact electrical connector used to link solar panels in series or parallel configurations. Engineered to withstand harsh outdoor conditions, it features a snap-lock mechanism, a 4 mm contact pin, and high UV-resistant insulation. The connector is built to ensure stable current flow and prevent accidental disconnections during operation.

Why is it crucial for solar installations?

Solar arrays operate in unpredictable and often extreme environments. Consistent electrical conductivity and waterproof sealing are essential to guarantee uninterrupted power transmission. MC4 connectors fulfill these requirements by providing:

• Secure locking to prevent loose connections, arcing, and system failure

• IP67-rated sealing for protection against dust and moisture

• Low contact resistance for improved energy efficiency

• Compatibility across industry-standard PV modules

They allow installers to configure PV strings with confidence, knowing the connectors meet global safety requirements and temperature endurance levels needed for long-term outdoor use.

Technical Parameters: What Defines a High-Performance MC4 Connector?

Below is a professional-grade parameter summary that outlines the performance profile of a premium MC4 connector suitable for modern PV installations:

These specifications underline the connector’s ability to handle high currents, maintain conductivity under fluctuating temperatures, and resist long-term exposure to UV and moisture. Installers rely on these parameters to ensure compatibility with high-efficiency solar modules and inverters, particularly in large-scale arrays that demand dependable system integrity.

Why Do MC4 Connectors Deliver Superior Performance in Solar Applications?

1. Enhanced Electrical Conductivity

The tinned-copper contact pin provides stable current transmission, minimizing losses. Low resistance ensures that energy produced by solar modules is optimally transferred to the inverter.

2. Weather-Resistant Durability

Outdoor solar assets must withstand wind, rain, UV radiation, sand, and seasonal temperature shifts. The MC4 connector’s IP67-rated design prevents water ingress and dust accumulation, significantly extending system life.

3. Simplified Installation

Quick-lock mechanisms allow technicians to perform installations rapidly, with fewer tools and reduced risk of wiring errors. Proper polarity matching also ensures safe string assembly.

4. Universal Compatibility

Most global PV modules come pre-equipped with MC4 leads. This universal standardization reduces supply chain complexity and ensures plug-and-play system expansion.

5. Safety Assurance

With compliance to UL and IEC electrical safety standards, MC4 connectors minimize short circuits, arcing events, and thermal risks — particularly important in rooftops and distributed generation sites.

How Are MC4 Connectors Installed and Maintained for Optimal System Reliability?

How should the connectors be used during installation?

• Ensure polarity matching between male and female connectors.

• Perform cable stripping precisely to avoid conductor exposure.

• Use proper crimping tools for correct contact compression.

• Confirm that the locking tabs engage firmly during mating.

• Conduct insulation resistance testing for full system verification.

How does regular inspection extend system lifespan?

• Check for dust accumulation or physical damage.

• Ensure connectors remain fully locked and sealed.

• Replace connectors showing discoloration or corrosion.

• Evaluate cable tension to prevent strain on terminals.

• Monitor for abnormal temperature increases during operation.

What Are the Future Trends in MC4 Connector Development?

The evolving solar power sector is demanding higher performance from all components, including connectors. Several future-leaning trends are shaping the next generation of MC4 solutions:

1. Higher Voltage Compatibility

With utility-scale systems moving toward 1500V platforms, connectors must support elevated currents and provide stronger insulation integrity.

2. Smarter Monitoring Features

There is an increasing interest in integrating miniature temperature sensors or monitoring chips to detect early signs of overheating or abnormal resistance.

3. Materials Innovation

Advanced polymers with better UV and heat stability are being introduced to address the demands of hotter climates and desert installations.

4. Faster Installation Solutions

Manufacturers are exploring tool-less or semi-automatic locking mechanisms that reduce installation labor time across multi-megawatt projects.

5. Improved Sustainability

Recyclable materials and low-impact manufacturing practices are becoming key as the PV industry emphasizes lifecycle environmental performance.

Common Questions About MC4 Connectors (Q&A Section)

Q1: Can MC4 connectors from different brands be mixed?

A1: While many MC4-type connectors claim compatibility, mixing brands may lead to improper sealing, mismatched tolerances, or compromised locking strength. This increases the risk of moisture intrusion and electrical arcing. For optimal safety and performance, connectors from the same manufacturer should be used across the entire PV string.

Q2: Why do MC4 connectors sometimes overheat?

A2: Overheating typically results from poor crimping, contamination on contact surfaces, loose mating, or the use of incompatible components. High resistance builds up at the contact interface, leading to temperature rise. A professional installation using certified connectors and proper crimping tools prevents this issue.

Conclusion: Why MC4 Connectors Continue to Lead the Market and How DSola Supports Professional Installations

MC4 connectors remain foundational to global solar power systems due to their durability, electrical stability, and engineering precision. They provide installers and system designers with dependable performance in all climates, ensuring efficient and safe power delivery across residential, industrial, and utility-scale PV installations.

DSola delivers high-quality MC4 connector solutions engineered to meet stringent international standards, ensuring that each installation benefits from reliable conductivity, long service life, and enhanced system safety. For distribution partnerships, OEM integration, or technical consultation, contact us to explore how DSola products can support your solar project requirements.
