Looking for Reliable Solar Power Protection?
2025-08-07

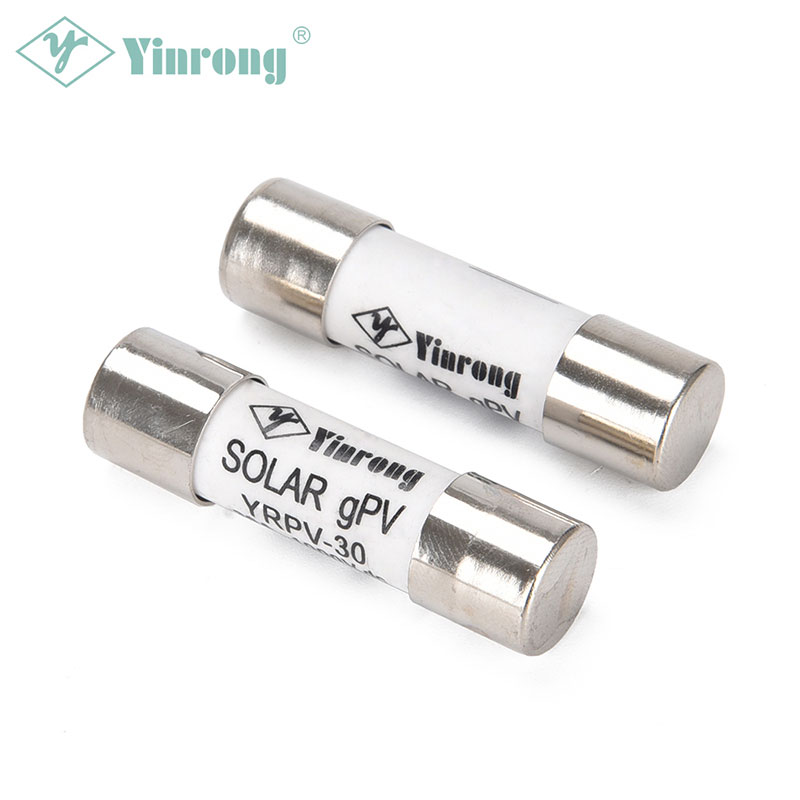

When protecting your solar investment matters, YR Solar Power Protection PV Fuses provide the ultimate safeguard for photovoltaic systems. Our specialized fuses are engineered to meet the unique demands of solar applications, offering superior DC circuit protection and system reliability.
Why Solar Professionals Trust YR PV Fuses
Advanced Protection Technology
-
Specifically designed for high-voltage DC applications up to 1500V
-
Rapid response to fault conditions prevents system damage
-
UL/CE/IEC certified for global compliance
Durably Engineered Components
-
Silver-plated copper elements for consistent performance
-
Ceramic body withstands extreme temperature fluctuations
-
UV-resistant housing maintains integrity in outdoor environments
Installation Advantages
-
Compact design saves valuable panel space
-
Easy-to-install bolt-on or screw terminal options
-
Clear fault indication for quick maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 1000V/1500V DC |
| Current Range | 1A-32A |
| Breaking Capacity | 20kA @ 1500V DC |
| Operating Temperature | -40°C to +90°C |
| Housing Material | High-grade ceramic with UV protection |
| Certifications | UL 2579, IEC 60269-6, CE |
| Lifetime | 10+ years under normal conditions |
Frequently Asked Questions
Q: How do YR PV fuses differ from standard AC fuses?
A: Our fuses are specifically engineered for DC applications with higher voltage ratings, faster response times, and arc-quenching capabilities unique to solar system requirements.
Q: What maintenance do these fuses require?
A: YR PV fuses are maintenance-free under normal conditions. We recommend annual visual inspections and replacement after any fault event.
Q: Can these fuses be used with lithium battery systems?
A: Yes, our PV fuses are compatible with most lithium battery configurations when properly sized for the system's voltage and current requirements.
Protect Your Solar Investment with YR Quality
YR Solar Power Protection PV Fuses represent the gold standard in photovoltaic system safety. Trusted by installers worldwide, our fuses deliver uncompromising protection for residential, commercial, and utility-scale solar installations.
Ready to secure your solar projects? Contact our technical team today for fuse selection guidance or request a product sample. For bulk inquiries or custom specifications, our specialists are standing by to assist. Invest in protection that matches your system's potential!
