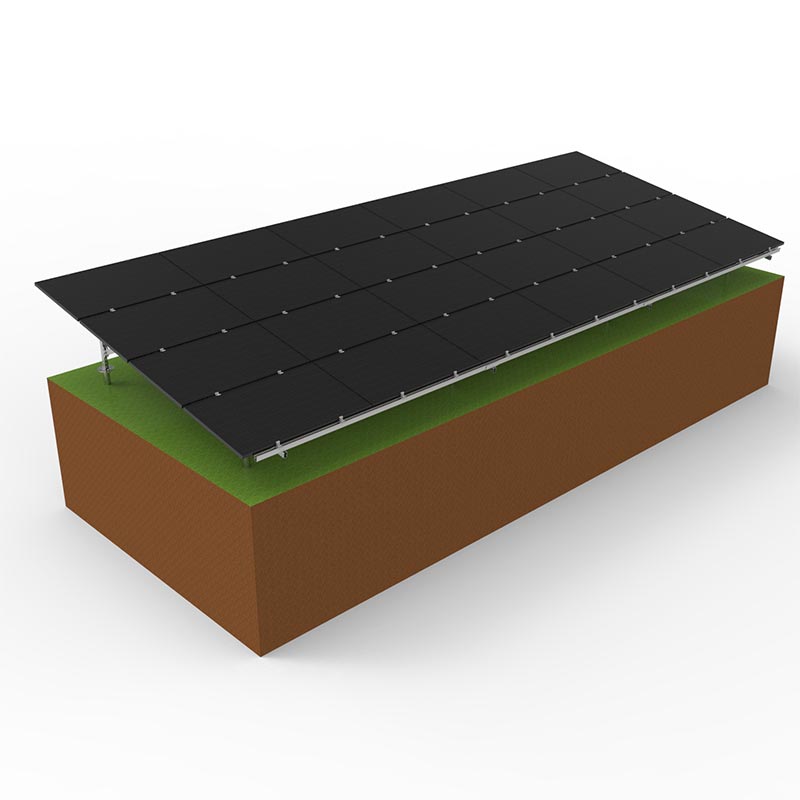

How Does U Type Pile Solar Mounting Improve Ground Solar Installation?
2026-04-27
Article Abstract
U type pile solar mounting systems have become a preferred foundation solution for modern photovoltaic ground installations due to their structural stability, fast installation process, and adaptability to diverse soil conditions. This article explains how U type pile structures work, why they are widely used in solar farms, and how they help solve common construction challenges such as unstable ground, long installation cycles, and high labor costs. It also provides technical insights, comparisons, and practical guidance for project developers and EPC contractors.
Table of Contents
- 1. Overview of U Type Pile Solar Mounting
- 2. How U Type Pile Systems Work
- 3. Key Advantages for Solar Projects
- 4. U Type Pile vs Other Foundation Types
- 5. Installation Process Explained
- 6. Materials and Structural Design
- 7. Typical Applications
- 8. Engineering Challenges and Solutions
- 9. Maintenance and Long-Term Performance
- 10. FAQ
- 11. Conclusion
Article Outline
- Introduction to U type pile solar mounting systems
- Structural mechanics and load distribution
- Advantages in cost, speed, and durability
- Comparative analysis with screw piles and concrete foundations
- Step-by-step installation workflow
- Material selection and anti-corrosion treatments
- Real-world applications in solar farms
- Engineering challenges and how to solve them
- Maintenance strategies for long-term performance
- Frequently asked questions
1. Overview of U Type Pile Solar Mounting
U type pile solar mounting systems are a type of ground foundation structure designed specifically for photovoltaic power plants. The "U shape" steel pile is driven directly into the soil without the need for concrete, making it a fast and efficient solution for large-scale solar installations.
Unlike traditional foundations, U type piles rely on steel penetration and soil friction to achieve stability. This makes them especially suitable for projects where construction speed and cost control are critical factors.
2. How U Type Pile Systems Work
The structural principle behind U type pile solar mounting is based on soil-structure interaction. The pile is driven into the ground using hydraulic or mechanical pile drivers. Once installed, the U-shaped cross-section provides strong resistance against vertical loads, wind pressure, and lateral forces.
- Vertical load support: Panels and rails are supported through distributed pressure.
- Lateral resistance: The U-shape geometry increases soil grip.
- Wind load stability: Designed to withstand strong environmental forces.
3. Key Advantages for Solar Projects
U type pile systems offer several benefits that directly address common construction challenges in solar projects.
| Advantage | Description |
|---|---|
| Fast Installation | No concrete curing required, reducing project timeline significantly |
| Cost Efficiency | Lower material and labor costs compared to traditional foundations |
| Environmental Friendly | Minimal soil disturbance and no cement usage |
| High Adaptability | Suitable for sandy, clay, and mixed soil conditions |
4. U Type Pile vs Other Foundation Types
| Type | Installation Speed | Cost | Durability | Best Use Case |
|---|---|---|---|---|
| U Type Pile | Fast | Low | High | Large solar farms |
| Ground Screw | Medium | Medium | High | Residential / uneven terrain |
| Concrete Foundation | Slow | High | Very High | Permanent heavy structures |
5. Installation Process Explained
- Site surveying and soil analysis
- Marking installation points
- Driving U type piles into the ground
- Alignment and leveling adjustments
- Mounting rail structures and solar panels
One of the most significant advantages is the elimination of concrete curing time, which can reduce installation time by up to 50%.
6. Materials and Structural Design
Most U type pile systems are made from hot-dip galvanized steel, ensuring long-term corrosion resistance. The structural design is optimized through finite element analysis to ensure load-bearing capacity under extreme weather conditions.
- High-strength carbon steel base
- Anti-corrosion zinc coating
- Precision-formed U-channel geometry
7. Typical Applications
U type pile solar mounting is widely used in utility-scale solar farms and commercial photovoltaic installations. It is especially effective in:
- Flat desert solar farms
- Agricultural photovoltaic integration projects
- Large industrial rooftop-adjacent ground systems
Companies like CYC provide optimized U type pile solar mounting solutions that are engineered for international project requirements and varying environmental conditions.
8. Engineering Challenges and Solutions
Despite its advantages, U type pile systems face certain engineering challenges:
- Soil variability: Requires pre-installation geotechnical testing
- Corrosion risk: Solved through advanced galvanization
- Load balancing: Requires precise structural calculation
Manufacturers like CYC address these issues by offering customized pile designs based on project-specific data.
9. Maintenance and Long-Term Performance
U type pile solar mounting systems require minimal maintenance. However, periodic inspection ensures long-term reliability:
- Annual structural alignment checks
- Corrosion inspection in coastal areas
- Bolt tightening and joint verification
10. FAQ
Q1: Are U type pile systems suitable for all soil types?
Yes, but soil testing is recommended for optimal design selection.
Q2: How long does installation take?
Installation can be completed significantly faster than concrete-based systems, often within days for medium-scale projects.
Q3: Is the system environmentally friendly?
Yes, it avoids concrete usage and minimizes soil disruption.
Q4: Can U type piles withstand strong wind loads?
Yes, they are engineered for high wind resistance depending on design specifications.
11. Conclusion
U type pile solar mounting systems represent a highly efficient and scalable solution for modern solar infrastructure development. Their combination of speed, cost-effectiveness, and structural reliability makes them a preferred choice for utility-scale photovoltaic projects worldwide.
With continuous improvements in material science and structural engineering, companies like CYC are delivering increasingly optimized solutions that support the global transition to renewable energy.
If you are planning a solar project and need a reliable foundation system, CYC can provide tailored engineering support and high-performance U type pile mounting solutions. contact us today to discuss your project requirements and get professional guidance for your next solar installation.
