The L Foot Mounting System with Rail is widely used in modern photovoltaic (PV) installations for its structural stability, adaptability, and ease of installation. This article explains how the system works, why it is preferred in both residential and commercial solar projects, and how it helps solve common installation challenges such as roof compatibility, alignment precision, and long-term durability. It also explores key components, installation processes, maintenance considerations, and real-world applications provided by Xiamen CYC Energy, a professional solar mounting solution provider.

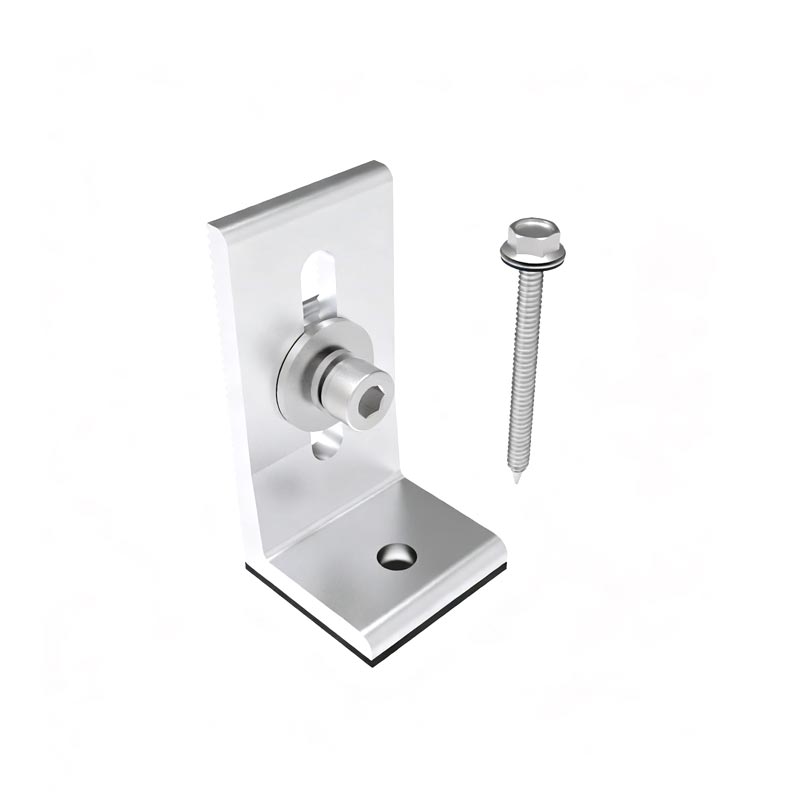

The L Foot Mounting System with Rail is a structural framework designed to secure solar panels onto rooftops, particularly metal and corrugated surfaces. The system uses L-shaped brackets (L feet) that anchor directly into roof rafters or purlins, combined with aluminum rails that hold PV modules in place.
This combination provides a balance of flexibility and strength, making it suitable for diverse installation environments. Xiamen CYC Energy has refined this system to ensure compatibility with different roof types, reducing installation complexity while improving structural reliability.
The system consists of several engineered components working together:
| Component | Material | Function |
|---|---|---|
| L Foot | Aluminum Alloy | Roof anchoring and load transfer |
| Rail | Anodized Aluminum | Solar panel support structure |
| Clamps | Aluminum / Stainless Steel | Module fixation |
| Fasteners | Stainless Steel | Structural locking |
Xiamen CYC Energy ensures each component is corrosion-resistant and engineered for long service life in harsh outdoor environments.
Many installers face challenges such as roof leakage, unstable mounting structures, complex installation procedures, and limited compatibility. The L Foot Mounting System with Rail addresses these issues effectively.
By using solutions from Xiamen CYC Energy, installers gain a more standardized system that minimizes uncertainty during project execution.
The installation process is designed for efficiency and precision:
This structured workflow reduces human error and ensures consistent installation quality. Xiamen CYC Energy provides installation guidance to ensure optimal system performance.
The L Foot Mounting System with Rail is suitable for various project types:
Its adaptability makes it a preferred choice for installers seeking a universal mounting solution.
| System Type | Installation Speed | Cost | Roof Compatibility | Durability |
|---|---|---|---|---|
| L Foot with Rail | Fast | Moderate | High | High |
| Ballasted System | Moderate | High | Low | Moderate |
| Tile Roof Hooks | Slow | Moderate | Medium | High |
Compared to other systems, the L Foot Mounting System with Rail provides an optimal balance of cost efficiency and structural stability, especially for metal roof applications.
Engineering improvements from Xiamen CYC Energy ensure these challenges are minimized in real-world installations.
Although the system is designed for long-term outdoor use, periodic inspection is recommended to ensure optimal performance.
With proper maintenance, the system can maintain performance for over 20 years under normal environmental conditions.
Q1: Can the L Foot Mounting System be used on all roof types?
It is primarily designed for metal and corrugated roofs, but can be adapted for other structures with proper engineering adjustments.
Q2: Is installation complicated for beginners?
No, the modular design simplifies installation and reduces the need for specialized tools.
Q3: How does it prevent roof leakage?
It uses EPDM rubber sealing pads at all penetration points to ensure waterproof performance.
Q4: What is the lifespan of the system?
Typically more than 20 years depending on environmental conditions and maintenance.
Q5: Why choose Xiamen CYC Energy products?
Because Xiamen CYC Energy provides engineered mounting systems that emphasize safety, durability, and installation efficiency.
The L Foot Mounting System with Rail represents a practical and efficient solution for modern solar installations. It addresses key challenges such as installation complexity, structural stability, and long-term durability while maintaining cost-effectiveness.
With continuous innovation and engineering expertise, Xiamen CYC Energy delivers reliable mounting systems that support the global transition to renewable energy infrastructure.
For project consultation, technical support, or customized solar mounting solutions, contact us at Xiamen CYC Energy today. Our team is ready to help you design efficient and durable solar mounting systems tailored to your needs.
