How Does a Solar Molded Case Circuit Breaker Improve PV System Protection?
2026-09-04
As solar photovoltaic (PV) installations continue to expand across residential, commercial, industrial, and utility-scale applications, reliable DC circuit protection has become increasingly important. A Solar Molded Case Circuit Breaker is designed to protect PV circuits against conditions such as overload and short circuits while also providing a convenient means of circuit isolation. Unlike a conventional AC breaker, a PV-oriented DC MCCB must be engineered to interrupt DC fault currents, where there is no natural current zero-crossing to help extinguish an arc. For solar projects requiring dependable protection, flexible installation, and customized configurations, Wenzhou Laijian Electrical Co.,Ltd. provides low-voltage electrical solutions with a focus on quality, safety, and application flexibility.

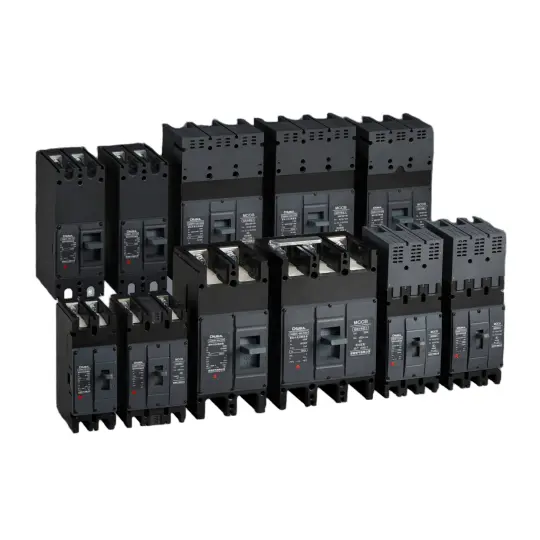

What Is a Solar Molded Case Circuit Breaker?
A Solar Molded Case Circuit Breaker is a molded case circuit breaker specifically designed for photovoltaic DC applications. It can be installed in parts of a solar power system where DC overcurrent protection and electrical isolation are required.
Solar PV systems may operate at considerably higher DC voltages than many traditional low-voltage DC applications. Specialized PV MCCBs therefore require appropriate voltage ratings, breaking capacity, insulation performance, and arc-extinguishing technology. Commercial products in the market, for example, are available for applications reaching 1000 VDC or higher, depending on the design and applicable standards.
Key Functions
A Solar Molded Case Circuit Breaker can provide several important functions:
- Overload protection – Helps disconnect circuits when current exceeds the designed operating level.
- Short-circuit protection – Interrupts excessive fault current to help protect cables and equipment.
- Circuit isolation – Provides a practical method for isolating sections of a PV installation during maintenance.
- Equipment protection – Helps protect solar modules, combiner boxes, inverters, batteries, and associated wiring.
- Operational convenience – Resettable breaker designs can reduce dependence on replacing fuses after certain fault events.
Some PV circuit breaker designs combine disconnect and overcurrent protection in one device, helping simplify installation and reduce component requirements.
Why Is It Important for Solar Power Systems?
The electrical characteristics of solar installations create particular protection challenges. PV arrays generate DC electricity, and DC arcs behave differently from AC arcs because DC current does not naturally pass through zero during each cycle. Consequently, a breaker intended for AC service should not automatically be assumed suitable for a PV DC circuit.
Choosing an appropriately rated Solar Molded Case Circuit Breaker can therefore improve the overall safety and reliability of a PV installation.
| Protection Consideration | Importance in Solar Applications |
|---|---|
| DC voltage rating | Must match or exceed the system operating voltage |
| Current rating | Should correspond with the expected continuous current |
| Breaking capacity | Must be appropriate for possible fault conditions |
| Pole configuration | Selected according to system architecture and isolation requirements |
| Arc-extinguishing capability | Essential for safe DC fault interruption |
| Environmental performance | Important for outdoor and high-temperature installations |
| Certification | Helps demonstrate compliance with applicable requirements |
Correct selection should always be based on the actual PV system design, electrical parameters, installation environment, and applicable local standards.
How Does a Solar MCCB Improve System Performance?
The value of a Solar Molded Case Circuit Breaker is not limited to fault interruption. Properly selected protection equipment can contribute to easier system management and more efficient maintenance.
1. Faster Fault Isolation
When an abnormal current condition occurs, the breaker can disconnect the affected circuit according to its protection characteristics. This helps limit the duration of electrical stress on cables and connected equipment.
2. Safer Maintenance
A breaker with an appropriate disconnect function can help maintenance personnel isolate specific circuits before inspection or servicing.
3. Better Equipment Protection
Solar installations can contain expensive inverters, batteries, combiner boxes, and other electrical equipment. Proper overcurrent protection helps reduce the potential impact of electrical faults.
4. Flexible System Integration
Modern PV MCCBs can be supplied with different ratings, pole configurations, terminals, handles, and accessories depending on the project. Some commercial solutions also support remote operation, auxiliary switches, shunt trips, and other accessories.
What Makes Wenzhou Laijian Electrical a Practical Choice?
Wenzhou Laijian Electrical Co.,Ltd. specializes in low-voltage electrical products, including MCCBs, MCBs, ACBs, surge protective devices, automatic transfer switches, and disconnect switches. The company emphasizes reliable electrical performance, precision engineering, and product quality, with CE and UL certification support highlighted in its product portfolio.
For solar projects, one particularly valuable advantage is customized configuration support.
Support for Customized Molded Case Designs
Different solar installations do not always have identical electrical requirements. A residential rooftop system, commercial PV plant, solar street-lighting project, and utility-scale installation may require different current ratings, voltage levels, pole arrangements, connection methods, or operating accessories.
Wenzhou Laijian Electrical Co.,Ltd. supports customized molded case circuit breaker configurations to better match specific project requirements.
Customization can potentially cover areas such as:
- Rated current configuration
- DC voltage requirements
- Pole configuration
- Terminal and connection options
- Handle and operating mechanism
- Auxiliary accessories
- Product labeling
- Housing and appearance requirements
- OEM/ODM requirements
- Project-specific packaging
This flexibility is particularly useful for distributors, electrical contractors, solar system integrators, and equipment manufacturers seeking a product that fits their existing electrical architecture rather than relying solely on standard configurations.
Solar Molded Case Circuit Breaker vs. Conventional AC MCCB
A common mistake is treating an AC MCCB and a solar DC MCCB as interchangeable products. Their applications can differ significantly.
| Feature | Solar DC MCCB | Conventional AC MCCB |
|---|---|---|
| Primary application | PV and other DC systems | AC distribution systems |
| Current type | Direct current | Alternating current |
| Arc interruption | Requires DC-specific design considerations | Benefits from AC current zero-crossing |
| PV suitability | Designed for appropriate solar DC applications | Not automatically suitable for PV DC circuits |
| Voltage selection | Based on DC system voltage | Based on AC system voltage |
| Customization | Can be configured for PV requirements | Generally focused on conventional AC applications |
The key point is simple: the breaker must be selected according to the actual circuit—not simply according to its current rating.
Where Can Solar MCCBs Be Used?
A Solar Molded Case Circuit Breaker can be considered for a range of renewable-energy and DC electrical applications, including:
- Solar PV arrays
- PV combiner boxes
- Solar inverter input circuits
- Commercial rooftop solar systems
- Utility-scale solar power plants
- Battery energy storage systems
- DC distribution systems
- Solar-powered industrial equipment
DC MCCBs are increasingly used across PV, battery storage, EV charging, UPS, and other DC applications, although the exact breaker specification must be matched to each application.
What Should Buyers Consider Before Ordering?
Selecting a Solar Molded Case Circuit Breaker should involve more than comparing prices. Buyers should review the following technical points:
System voltage: Confirm the required DC operating and insulation voltage.
Rated current: Select a rating appropriate for the circuit's continuous operating conditions.
Breaking capacity: Ensure the breaker can safely interrupt the prospective fault current of the installation.
Pole configuration: Determine whether a 2-pole, 3-pole, 4-pole, or another configuration is appropriate for the system architecture.
Environmental conditions: Outdoor solar equipment may experience high temperatures, humidity, dust, and other demanding conditions.
Standards and certifications: Check the requirements of the target market and project. For example, UL 489B is specifically associated with photovoltaic molded-case circuit breakers and switches in applicable products.
Customization requirements: For OEM projects, determine whether the supplier can provide the required electrical configuration, accessories, labeling, packaging, and other project-specific details.
Why Choose a Customized Solar Molded Case Circuit Breaker?
Standard products can be suitable for many projects, but customized solutions may offer greater flexibility when equipment dimensions, electrical specifications, or system integration requirements differ.
For OEM and project-based customers, customization can help achieve:
- Better compatibility with existing equipment
- More convenient installation
- Consistent product specifications across projects
- Flexible branding and labeling
- More efficient procurement for specialized applications
- Adaptation to different PV system designs
For this reason, customization capability should be considered an important supplier-selection criterion alongside product quality and technical support.
Conclusion
A Solar Molded Case Circuit Breaker is an important component for reliable protection and isolation in modern photovoltaic systems. Because DC fault interruption presents different challenges from AC protection, selecting a breaker specifically suited to the solar application is essential. Appropriate voltage and current ratings, breaking capacity, pole configuration, environmental performance, certification, and accessories should all be evaluated before installation.
With its low-voltage electrical product expertise and customized configuration capabilities, Wenzhou Laijian Electrical Co.,Ltd. can provide flexible solutions for solar integrators, distributors, contractors, and OEM customers. Whether you need a standard solar MCCB or a customized configuration designed around a specific PV project, choosing the right manufacturing partner can make procurement and system integration more efficient.
Looking for a reliable Solar Molded Case Circuit Breaker supplier with customized OEM/ODM support? Contact us today to discuss your voltage, current, pole configuration, accessory, and project requirements with Wenzhou Laijian Electrical Co.,Ltd.
