Essential Safety Upgrades in Modern Solar Distribution Boxes
2025-09-11

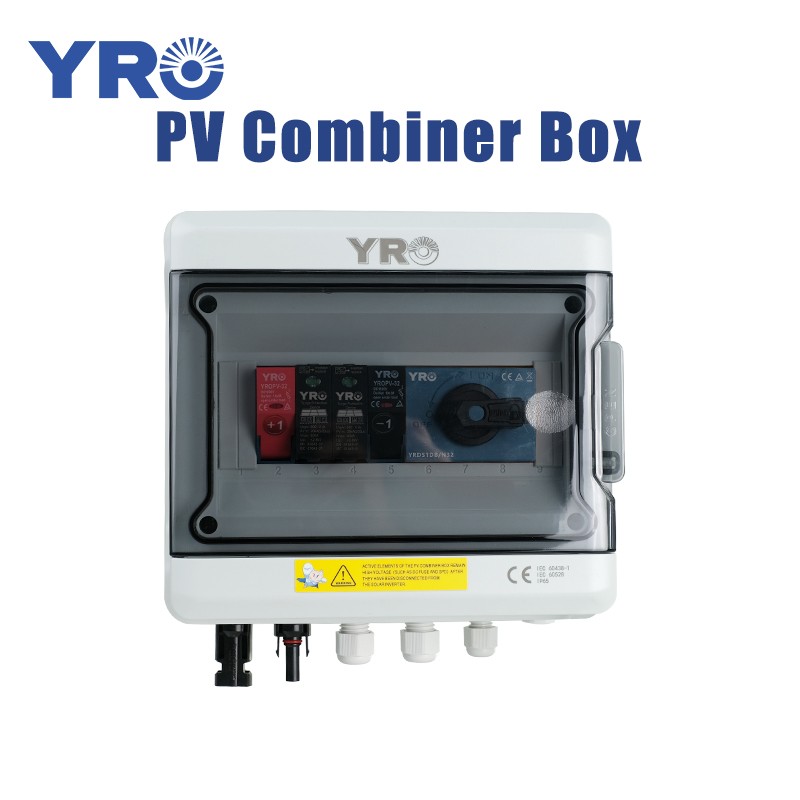

The solar distribution box is a critical component in any photovoltaic (PV) system, acting as the central hub for electrical connections, monitoring, and protection. Over the years, significant safety enhancements have been integrated into these enclosures to ensure system reliability, protect investments, and prevent hazards. Here, we detail the key safety features and technical specifications of our advanced solar distribution box.
Key Safety Enhancements & Product Specifications
Modern solar combiner boxes have evolved from simple junction points to sophisticated management units. The following upgrades are now standard in our high-quality design:
-
Advanced DC Arc Fault Circuit Interruption (AFCI): This critical safety feature detects and extinguishes dangerous arc faults, a common cause of electrical fires in PV systems. It continuously monitors the circuit for abnormal arcing and cuts power within milliseconds.
-
Integrated Surge Protective Device (SPD): Protects the entire system from voltage spikes caused by lightning strikes or grid fluctuations. Our SPDs are rated with a high discharge current capacity to handle severe surges.
-
IP65 (or Higher) Ingress Protection Rating: The enclosure is fully dust-tight and protected against low-pressure water jets from any direction, making it ideal for harsh outdoor environments.
-
Thermal Monitoring and Fuse Protection: Each string input is secured with a high-quality fuse rated for DC current. The system includes thermal sensors to monitor for overheating, providing an early warning of potential issues.
-
Fire-Retardant Housing (UL94 V-0): The body of the solar distribution box is constructed from materials that are self-extinguishing. This means the material will not continue to burn after the ignition source is removed, drastically improving fire safety.
-
Comprehensive Monitoring (Optional): For larger systems, an optional smart monitoring module can provide real-time data on current, voltage, and power for each string via a digital interface, allowing for proactive maintenance.
The technical specifications for our standard 8-in-1 model are outlined in the table below:
| Feature | Specification | Benefit |
|---|---|---|
| Maximum System Voltage | 1000V / 1500V DC | Compatible with high-voltage string inverter systems. |
| Input Current (per string) | Up to 20A | Supports high-power PV modules. |
| Fuse Rating (per string) | 15A / 20A gPV | Reliable overcurrent protection for each string. |
| SPD Rating | 20kA | Robust protection against large surge currents. |
| Enclosure Rating | IP65 | Superior protection against dust and moisture. |
| Operating Temperature | -40°C to +85°C | Uninterrupted performance in extreme climates. |
| Housing Material | Engineering Plastic (UL94 V-0) | Durable, corrosion-resistant, and fire-retardant. |
| AFCI Compliance | NEC Article 690.11 | Meets required electrical safety standards. |
Why These Upgrades Matter
These enhancements directly address the most common risks associated with PV systems: fire, electrical shock, and equipment failure due to environmental factors. The integration of AFCI and robust SPDs moves the solar distribution box beyond a simple combiner role, transforming it into an active safety device. The high IP rating and wide operating temperature range ensure that safety is maintained year-round, regardless of weather conditions.
Investing in a modern, well-equipped box is not just a compliance issue; it is a fundamental aspect of system longevity and safety. By choosing a product with these features, you ensure that your solar array is protected by the latest and most effective safety technology available on the market.
If you are very interested in ZHEJIANG YRO NEW ENERGY's products or have any questions, please feel free to contact us.
