Can a Square Body High Speed Fuse Protect Against Short Circuits and Overloads
2025-08-20
If you work with industrial electronics, motor drives, or power conversion systems, you’ve likely asked this critical question. The short answer is yes—but with a crucial distinction. A Square Body High Speed Fuse is specifically engineered to provide ultra-rapid protection against short circuits. However, its response to general overloads differs from standard slow-blow fuses.
These fuses operate on the principle of extremely fast interruption. When a short circuit occurs, the fuse element vaporizes in milliseconds, limiting the let-through energy (I²t) and protecting sensitive components like IGBTs and diodes. For overloads, these fuses can handle temporary, moderate overcurrents but are not designed to tolerate prolonged low-level overloads like thermal fuses. Their key strength lies in speed and precision for high-level faults.

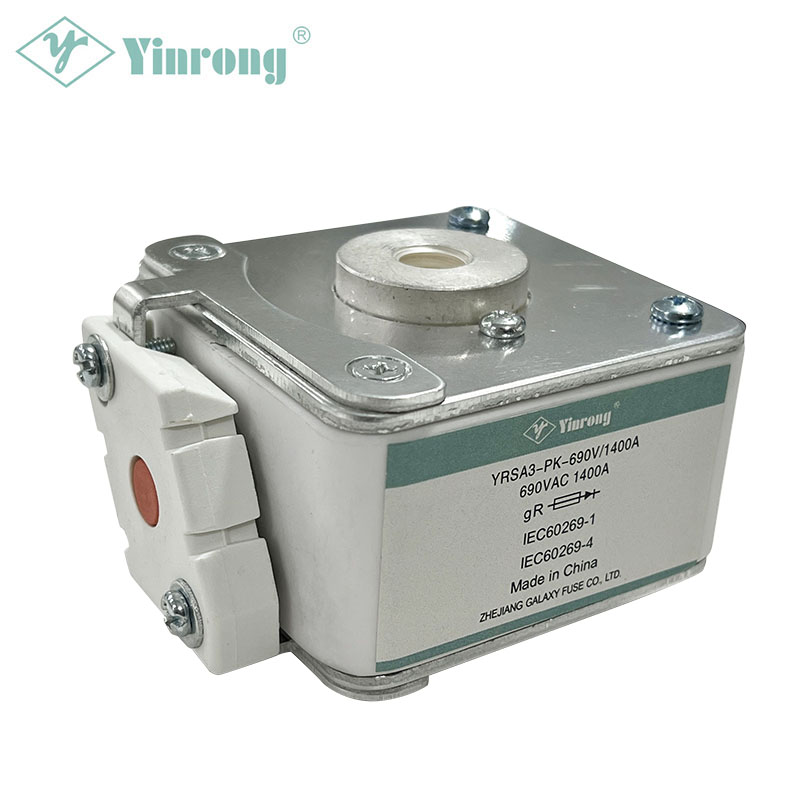

Key Protection Parameters of Galaxy Fuse Square Body Designs
Galaxy Fuse incorporates advanced materials and design to ensure reliable performance. Key parameters include:
-
Voltage Rating: Ranging from 500V to 1000V, compatible with most industrial DC and AC systems.
-
Current Rating: Available from 1A to 2000A, allowing for precise coordination with your equipment’s load profile.
-
Interrupting Rating: Up to 200kA, ensuring protection even in high-fault scenarios.
-
I²t Value: Extremely low, minimizing thermal stress on downstream semiconductors.
The following table compares the let-through energy of a standard fuse versus a Galaxy Fuse high-speed model, demonstrating its superior protective capability:
| Fault Type | Standard Fuse (I²t let-through) | Galaxy Fuse Square Body (I²t let-through) |
|---|---|---|
| Short Circuit (50kA) | 450,000 A²s | 22,500 A²s |
| Overload (5x In) | Blows in 0.1s | Blows in 0.005s |
FAQ: Square Body High Speed Fuse Common Questions
How quickly does a Square Body High Speed Fuse operate during a short circuit?
These fuses can interrupt a fault current in under 2 milliseconds, significantly faster than standard fuses, which is vital for saving sensitive semiconductors from destruction.
Can I use a Square Body High Speed Fuse for both AC and DC systems?
Yes, but you must select a fuse rated for the specific system voltage and type. Galaxy Fuse offers models explicitly rated for DC applications, which present a greater challenge for arc extinction than AC systems.
What is the main advantage of the square body design?
The square body allows for a larger internal sand filler and more precise element construction. This enables superior arc quenching and higher interrupting ratings, making it ideal for high-density industrial power panels.
For engineers who prioritize reliability, choosing the right protection component is non-negotiable. Galaxy Fuse provides the robust, high-speed defense your critical systems require.
Contact us today to discuss your specific application requirements with our engineering team. Let us help you select the perfect fuse for unparalleled safety and performance.
